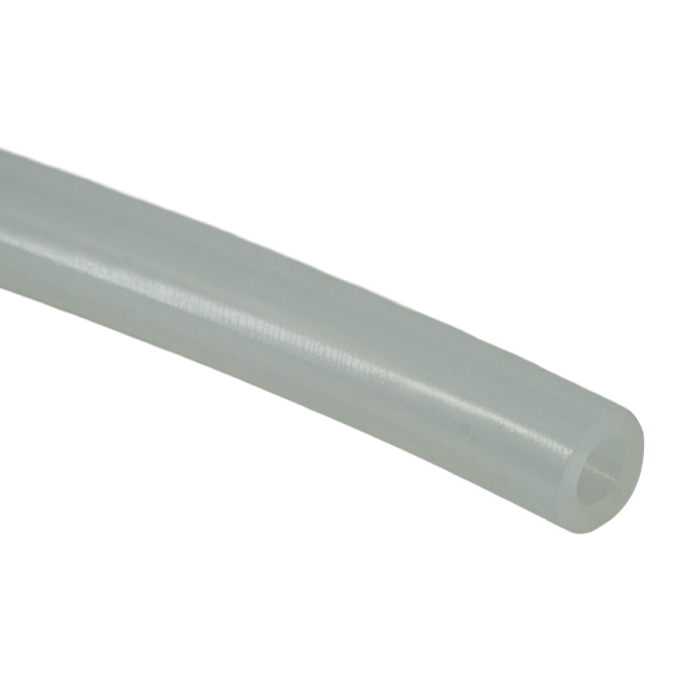

Peroxide Cured Silicone Tubing - ID 22mm, Wall Thickness 3mm, Translucent, 60 ShA
- Internal Diameter: 22mm
- Outer Diameter: 28mm
- Wall Thickness: 3mm
- Material: Silicone (VMQ)
- Colour: Translucent
- Hardness: 60 ShA
- Weight: 0.27kg per Metre
- Temperature Range: Min: -40°C, Max: 200°C
Peroxide Cured Silicone Tubing offers exceptional flexibility, durability, and temperature resistance. Ideal for industrial pumps, automotive, and food & beverage applications, it provides a clear, translucent design for easy monitoring of fluid flow. Perfect for high-performance environments.
Peroxide Cured Silicone Tubing - ID 22mm, Wall Thickness 3mm, Translucent, 60 ShA
Peroxide Cured Silicone Tubing is designed for high-performance applications across various industries, this tubing offers exceptional durability and versatility, making it ideal for industrial pump and transfer systems, automotive applications, and other demanding environments.
- Internal Diameter: 22mm
- Outer Diameter: 28mm
- Wall Thickness: 3mm
- Material: Silicone (VMQ)
- Colour: Translucent
- Hardness: 60 ShA
- Weight: 0.27kg per Metre
- Temperature Range: Min: -40°C, Max: 200°C
Key Benefits
- Temperature Resistance: With a wide temperature range from -40°C to 200°C, this silicone tubing is perfect for high-temperature applications.
- High-Quality Material: Made from premium Silicone (VMQ), offering excellent flexibility, strength, and chemical resistance.
- Peroxide Cured: Ensures durability and long-lasting performance in various applications, even under stress.
- Translucent Appearance: The clear, translucent design allows for easy monitoring of fluid flow within the tubing.
Applications
- Industrial Pump and Transfer Systems
- Automotive
- General Manufacturing
- Food and Beverage Industry
- High-Temperature Applications
- Non-Critical Medical Applications
- HVAC Systems
Additional Information
This silicone tubing is designed for use in temperatures ranging from -40°C to 200°C, offering a reliable solution in applications where temperature fluctuations are common. Ideal for industrial and commercial applications.
| Density (g/cm³) | 1.15 |
|---|---|
| Length (mm) | 1000 |
| Material | Silicone (VMQ) |
| Wall Thickness (mm) | 3 |
| Outer Diameter (mm) | 28 |
| Internal Diameter (mm) | ₹2,689.76 |
| Tolerance Thickness (±mm) | 0.4 |
| Internal Diameter Tolerance | 1 |
| Hardness | 60 ShA |
| Colour | Translucent |
| Maximum Temperature (°C) | 200 |
| Minimum Temperature (°C) | -40 |
| Tensile Strength | 11 MPa |
| Elongation at break (%) | 440 |
| Compression Set (%) | 31 |
| Compression Set Testing Parameters | 22h @ 175°C |
| Weight (kg) | 0.271 |
| Product Datasheet | T22X3ST60PC-Polymax_Peroxide_Cured_Silicone_Tubing_ID_22mm_Wall_Thickness_3mm_Translucent_60_ShA.pdf |
|---|
