CF Shear Mount (F/F), Ø75mm Height 40mm M12x12mm, NR 60 ShA Standard Steel (cf7540m12-2)Mount Type: CF (Female/Female) Diameter: 75mm Height: 40mm Female Bolt Size: M12 Female Bolt Depth: 12mm Maximum Load Compression: 278Kg Maximum Shear Load: 92.67Kg Material: Natural Rubber (NR) Colour: Black Weight: 0.331Kg The CF Type Shear Mount are designed to provide effective vibration isolation, ensuring smooth operation for a wide range of applications. These mounts offer enhanced material displacement compared to standard cylindrical bobbin mounts while maintaining stability under pressure. The CF Shear Mounts feature rubber bonded to both the inner and outer metal parts, ensuring secure operation and resistance to stress and deformation. Learn More
-
CF Shear Mount (F/F), Ø75mm Height 40mm M12x12mm, NR 45 ShA Standard Steel (cf7540m12-1)Mount Type: CF (Female/Female) Diameter: 75mm Height: 40mm Female Bolt Size: M12 Female Bolt Depth: 12mm Maximum Load Compression: 139Kg Maximum Shear Load: 46.33Kg Material: Natural Rubber (NR) Colour: Black Weight: 0.331Kg The CF Type Shear Mount are designed to provide effective vibration isolation, ensuring smooth operation for a wide range of applications. These mounts offer enhanced material displacement compared to standard cylindrical bobbin mounts while maintaining stability under pressure. The CF Shear Mounts feature rubber bonded to both the inner and outer metal parts, ensuring secure operation and resistance to stress and deformation. Learn More
-
CF Shear Mount (F/F), Ø40mm Height 28mm M10x10mm, NR 50 ShA Standard Steel (cf4028m10-1.5)Mount Type: CF (Female/Female) Diameter: 40mm Height: 28mm Female Bolt Size: M10 Female Bolt Depth: 10mm Maximum Load Compression: 25.4Kg Maximum Shear Load: 8.47Kg Material: Natural Rubber (NR) Colour: Black Weight: 0.07Kg The CF Type Shear Mount are designed to provide effective vibration isolation, ensuring smooth operation for a wide range of applications. These mounts offer enhanced material displacement compared to standard cylindrical bobbin mounts while maintaining stability under pressure. The CF Shear Mounts feature rubber bonded to both the inner and outer metal parts, ensuring secure operation and resistance to stress and deformation. Learn More
-
CF Shear Mount (F/F), Ø25mm Height 22mm M6x6mm, NR 55 ShA Standard Steel (cf2522m6-1.55)Mount Type: CF (Female/Female) Diameter: 25mm Height: 22mm Female Bolt Size: M6 Female Bolt Depth: 6mm Maximum Load Compression: 43Kg Maximum Shear Load: 10Kg Material: Natural Rubber (NR) Colour: Black Weight: 0.021Kg The CF Type Shear Mount are designed to provide effective vibration isolation, ensuring smooth operation for a wide range of applications. These mounts offer enhanced material displacement compared to standard cylindrical bobbin mounts while maintaining stability under pressure. The CF Shear Mounts feature rubber bonded to both the inner and outer metal parts, ensuring secure operation and resistance to stress and deformation. Learn More
-
CF Shear Mount (F/F), Ø40mm Height 28mm M8x8mm, NR 55 ShA Standard Steel (cf4028m8-1.55)Mount Type: CF (Female/Female) Diameter: 40mm Height: 28mm Female Bolt Size: M8 Female Bolt Depth: 8mm Maximum Load Compression: 28Kg Maximum Shear Load: 4Kg Material: Natural Rubber (NR) Colour: Black Weight: 0.065Kg The CF Type Shear Mount are designed to provide effective vibration isolation, ensuring smooth operation for a wide range of applications. These mounts offer enhanced material displacement compared to standard cylindrical bobbin mounts while maintaining stability under pressure. The CF Shear Mounts feature rubber bonded to both the inner and outer metal parts, ensuring secure operation and resistance to stress and deformation. Learn More
-
CF Shear Mount (F/F), Ø40mm Height 30mm M8x8mm, NR 55 ShA Standard Steel (cf4030m8-1.55)Mount Type: CF (Female/Female) Diameter: 40mm Height: 30mm Female Bolt Size: M8 Female Bolt Depth: 8mm Maximum Load Compression: 28Kg Maximum Shear Load: 4Kg Material: Natural Rubber (NR) Colour: Black Weight: 0.069Kg The CF Type Shear Mount are designed to provide effective vibration isolation, ensuring smooth operation for a wide range of applications. These mounts offer enhanced material displacement compared to standard cylindrical bobbin mounts while maintaining stability under pressure. The CF Shear Mounts feature rubber bonded to both the inner and outer metal parts, ensuring secure operation and resistance to stress and deformation. Learn More
-
CF Shear Mount (F/F), Ø46mm Height 25mm M10x10mm, NR 55 ShA Standard Steel (cf4625m10-1.55)Mount Type: CF (Female/Female) Diameter: 46mm Height: 25mm Female Bolt Size: M10 Female Bolt Depth: 10mm Maximum Load Compression: 72Kg Maximum Shear Load: 10Kg Material: Natural Rubber (NR) Colour: Black Weight: 0.1Kg The CF Type Shear Mount are designed to provide effective vibration isolation, ensuring smooth operation for a wide range of applications. These mounts offer enhanced material displacement compared to standard cylindrical bobbin mounts while maintaining stability under pressure. The CF Shear Mounts feature rubber bonded to both the inner and outer metal parts, ensuring secure operation and resistance to stress and deformation. Learn More
-
CF Shear Mount (F/F), Ø50mm Height 30mm M10x10mm, NR 55 ShA Standard Steel (cf5030m10-1.55)Mount Type: CF (Female/Female) Diameter: 50mm Height: 30mm Female Bolt Size: M10 Female Bolt Depth: 10mm Maximum Load Compression: 155.84Kg Maximum Shear Load: 51.95Kg Material: Natural Rubber (NR) Colour: Black Weight: 0.15Kg The CF Type Shear Mount are designed to provide effective vibration isolation, ensuring smooth operation for a wide range of applications. These mounts offer enhanced material displacement compared to standard cylindrical bobbin mounts while maintaining stability under pressure. The CF Shear Mounts feature rubber bonded to both the inner and outer metal parts, ensuring secure operation and resistance to stress and deformation. Learn More
-
CF Shear Mount (F/F), Ø20mm Height 40mm M6x6mm, NBR 60 ShA Standard Steel (cf2040m6-nbr-2)Mount Type: CF (Female/Female) Diameter: 20mm Height: 40mm Female Bolt Size: M6 Female Bolt Depth: 6mm Maximum Load Compression: 49Kg Maximum Shear Load: 16.33Kg Material: Nitrile (NBR) Colour: Black Weight: 0.04Kg The CF Type Shear Mount are designed to provide effective vibration isolation, ensuring smooth operation for a wide range of applications. These mounts offer enhanced material displacement compared to standard cylindrical bobbin mounts while maintaining stability under pressure. The CF Shear Mounts feature rubber bonded to both the inner and outer metal parts, ensuring secure operation and resistance to stress and deformation. Learn More
-
CF Shear Mount (F/F), Ø20mm Height 40mm M6x6mm, NBR 45 ShA Standard Steel (cf2040m6-nbr-1)Mount Type: CF (Female/Female) Diameter: 20mm Height: 40mm Female Bolt Size: M6 Female Bolt Depth: 6mm Maximum Load Compression: 24.5Kg Maximum Shear Load: 8.17Kg Material: Nitrile (NBR) Colour: Black Weight: 0.04Kg The CF Type Shear Mount are designed to provide effective vibration isolation, ensuring smooth operation for a wide range of applications. These mounts offer enhanced material displacement compared to standard cylindrical bobbin mounts while maintaining stability under pressure. The CF Shear Mounts feature rubber bonded to both the inner and outer metal parts, ensuring secure operation and resistance to stress and deformation. Learn More
-

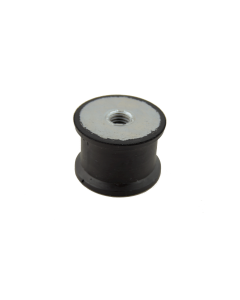

CF Shear Mount (F/F), Ø20mm Height 40mm M6x6mm, NR 45 ShA Standard Steel (cf2040m6-1)Mount Type: CF (Female/Female) Diameter: 20mm Height: 40mm Female Bolt Size: M6 Female Bolt Depth: 6mm Maximum Load Compression: 24.5Kg Maximum Shear Load: 8.17Kg Material: Natural Rubber (NR) Colour: Black Weight: 0.04Kg The CF Type Shear Mount are designed to provide effective vibration isolation, ensuring smooth operation for a wide range of applications. These mounts offer enhanced material displacement compared to standard cylindrical bobbin mounts while maintaining stability under pressure. The CF Shear Mounts feature rubber bonded to both the inner and outer metal parts, ensuring secure operation and resistance to stress and deformation. Learn More
-
CF Shear Mount (F/F), Ø20mm Height 30mm M6x6mm, NBR 60 ShA Standard Steel (cf2030m6-nbr-2)Mount Type: CF (Female/Female) Diameter: 20mm Height: 30mm Female Bolt Size: M6 Female Bolt Depth: 6mm Maximum Load Compression: 23Kg Maximum Shear Load: 7.67Kg Material: Nitrile (NBR) Colour: Black Weight: 0.019Kg The CF Type Shear Mount are designed to provide effective vibration isolation, ensuring smooth operation for a wide range of applications. These mounts offer enhanced material displacement compared to standard cylindrical bobbin mounts while maintaining stability under pressure. The CF Shear Mounts feature rubber bonded to both the inner and outer metal parts, ensuring secure operation and resistance to stress and deformation. Learn More
-
CF Shear Mount (F/F), Ø20mm Height 30mm M6x6mm, NBR 45 ShA Standard Steel (cf2030m6-nbr-1)Mount Type: CF (Female/Female) Diameter: 20mm Height: 30mm Female Bolt Size: M6 Female Bolt Depth: 6mm Maximum Load Compression: 11.5Kg Maximum Shear Load: 3.83Kg Material: Nitrile (NBR) Colour: Black Weight: 0.019Kg The CF Type Shear Mount are designed to provide effective vibration isolation, ensuring smooth operation for a wide range of applications. These mounts offer enhanced material displacement compared to standard cylindrical bobbin mounts while maintaining stability under pressure. The CF Shear Mounts feature rubber bonded to both the inner and outer metal parts, ensuring secure operation and resistance to stress and deformation. Learn More
-
CF Shear Mount (F/F), Ø100mm Height 75mm M16x16mm, NR 60 ShA Standard Steel (cf10075m16-2)Mount Type: CF (Female/Female) Diameter: 100mm Height: 75mm Female Bolt Size: M16 Female Bolt Depth: 16mm Maximum Load Compression: 538Kg Maximum Shear Load: 179.33Kg Material: Natural Rubber (NR) Colour: Black Weight: 0.901Kg The CF Type Shear Mount are designed to provide effective vibration isolation, ensuring smooth operation for a wide range of applications. These mounts offer enhanced material displacement compared to standard cylindrical bobbin mounts while maintaining stability under pressure. The CF Shear Mounts feature rubber bonded to both the inner and outer metal parts, ensuring secure operation and resistance to stress and deformation. Learn More
-
CF Shear Mount (F/F), Ø100mm Height 75mm M16x16mm, NR 45 ShA Standard Steel (cf10075m16-1)Mount Type: CF (Female/Female) Diameter: 100mm Height: 75mm Female Bolt Size: M16 Female Bolt Depth: 16mm Maximum Load Compression: 269Kg Maximum Shear Load: 89.67Kg Material: Natural Rubber (NR) Colour: Black Weight: 0.901Kg The CF Type Shear Mount are designed to provide effective vibration isolation, ensuring smooth operation for a wide range of applications. These mounts offer enhanced material displacement compared to standard cylindrical bobbin mounts while maintaining stability under pressure. The CF Shear Mounts feature rubber bonded to both the inner and outer metal parts, ensuring secure operation and resistance to stress and deformation. Learn More
