₹3,765.42
₹3,191.03

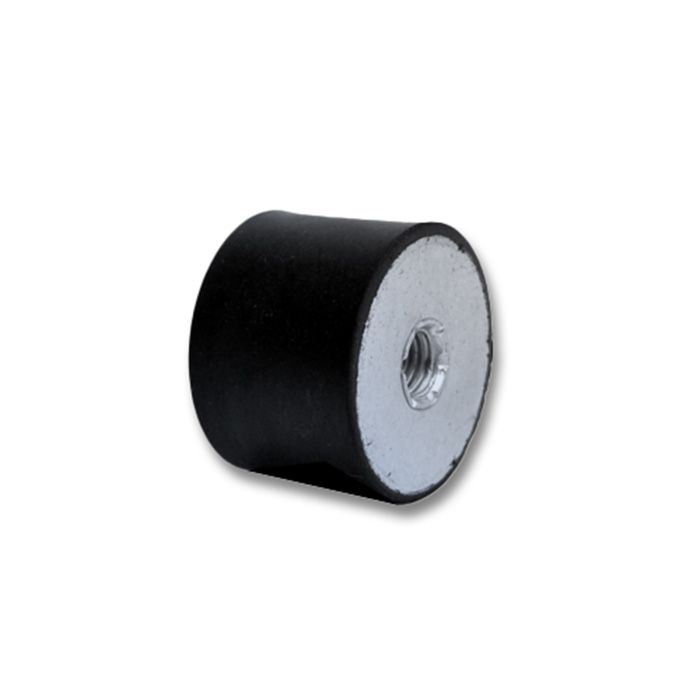

Pack of 2pcs-Type C Cylindrical Mount F/F, Ø50mm H30mm M10x10mm, NR 60 ShA Stainless Steel (316 Grade)
SKU
R2C5030M10-A4-2
- Mount Type: C (Female/Female)
- Diameter: 50mm
- Height: 30mm
- Female Bolt Size: M10
- Female Bolt Depth: 10mm
- Material: Natural Rubber (NR)
- Hardness: 60 ShA
- Maximum Load Compression: 146.25Kg
- Maximum Shear Load: 13.1625Kg
- Metal Type: Stainless Steel (316 Grade)
- Colour: Black
- Weight: 0.1944Kg
Type C Bobbin Mounts provide exceptional vibration isolation, ideal for sensitive machinery in various industries. Their Female/Female thread design ensures easy installation, while their performance in both compression and shear applications enhances operational efficiency. Perfect for automotive, HVAC, and medical equipment.
- Mount Type: C (Female/Female)
- Diameter: 50mm
- Height: 30mm
- Female Bolt Size: M10
- Female Bolt Depth: 10mm
- Material: Natural Rubber (NR)
- Hardness: 60 ShA
- Maximum Load Compression: 146.25Kg
- Maximum Shear Load: 13.1625Kg
- Metal Type: Stainless Steel (316 Grade)
- Colour: Black
- Weight: 0.202Kg
Type C Bobbin Mounts provide exceptional vibration isolation, ideal for sensitive machinery in various industries. Their Female/Female thread design ensures easy installation, while their performance in both compression and shear applications enhances operational efficiency. Perfect for automotive, HVAC, and medical equipment.
| Colour | Black |
|---|---|
| Hardness | 60 ShA |
| Metal Type | Stainless Steel (316 Grade) |
| Mount Type | C |
| Elongation at break (%) | 400 |
| Material | Natural Rubber (NR) |
| Maximum Temperature (°C) | 70 |
| Minimum Temperature (°C) | -25 |
| Density (g/cm³) | 1.2 |
| Height (mm) | 30 |
| Diameter (mm) | 50 |
| Maximum Load. Compression (kg) | 146.3 |
| Maximum Shear Load (kg) | 13.2 |
| Tensile Strength | 14 MPa |
| Tolerance Hardness (±) | 5 |
| Thread Length/Depth 1 (mm) | 10 |
| Thread Length/Depth 2 (mm) | 10 |
| Thread Size 1 | M10 |
| Weight (kg) | 0.202 |
All rubber tolerances as per ISO 3302 Class M3. Hardness tolerance +/- 5 Shore A and Stiffness tolerance +/-20% from stated values.
