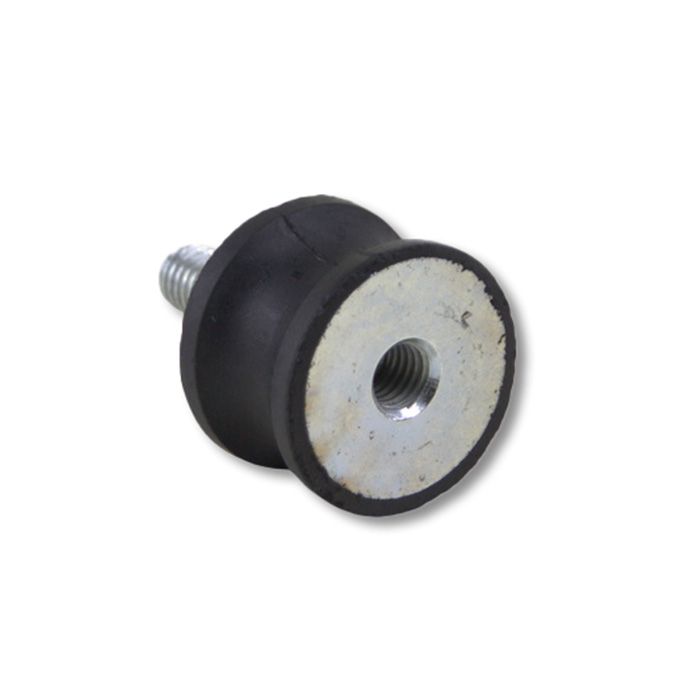

Pack of 2pcs-BD Waisted Mount (M/F), Ø30mm Height 20mm M8x20mm M8x8mm, NR 60 ShA Mild Steel
- Mount Type: BD (Male/Female)
- Diameter: 30mm
- Height: 20mm
- Male Bolt Size: M8
- Male Bolt Length: 20mm
- Female Bolt Size: M8
- Female Bolt Depth: 8mm
- Maximum Load Compression: 52.5Kg
- Maximum Shear Load: 17.5Kg
- Material: Natural Rubber (NR)
- Colour: Black
- Weight: 0.104Kg
The BD Waisted Bobbin Mounts are specially designed to provide optimal vibration isolation for applications requiring a male/female thread configuration. With their unique waisted design, these mounts are ideal for reducing lateral vibration, offering superior isolation in the lateral direction while providing a high degree of deflection. Perfect for use in various industries, these mounts help protect sensitive equipment from vibration-induced wear, noise, and damage, ensuring the longevity and reliable performance of machinery.
- Mount Type: BD (Male/Female)
- Diameter: 30mm
- Height: 20mm
- Male Bolt Size: M8
- Male Bolt Length: 20mm
- Female Bolt Size: M8
- Female Bolt Depth: 8mm
- Maximum Load Compression: 52.5Kg
- Maximum Shear Load: 17.5Kg
- Material: Natural Rubber (NR)
- Colour: Black
- Weight: 0.09Kg
The BD Waisted Bobbin Mounts are specially designed to provide optimal vibration isolation for applications requiring a male/female thread configuration. With their unique waisted design, these mounts are ideal for reducing lateral vibration, offering superior isolation in the lateral direction while providing a high degree of deflection. Perfect for use in various industries, these mounts help protect sensitive equipment from vibration-induced wear, noise, and damage, ensuring the longevity and reliable performance of machinery.
| Colour | Black |
|---|---|
| Hardness | 60 ShA |
| Metal Type | Standard Steel |
| Mount Type | BD |
| Elongation at break (%) | 400 |
| Material | Natural Rubber (NR) |
| Maximum Temperature (°C) | 70 |
| Minimum Temperature (°C) | -25 |
| Density (g/cm³) | 1.2 |
| Height (mm) | 20 |
| Diameter (mm) | 30 |
| Maximum Load. Compression (kg) | 52.5 |
| Maximum Shear Load (kg) | 7.875 |
| Tensile Strength | 14 MPa |
| Total Height (mm) | 40 |
| Tolerance Hardness (±) | 5 |
| Thread Length/Depth 1 (mm) | 20 |
| Thread Length/Depth 2 (mm) | 8 |
| Thread Size 1 | M8 |
| Weight (kg) | 0.09 |
| Product Datasheet | R2BD3020M820-2-Pack_of_2pcs-BD_Waisted_Mount_M-F_30mm_Height_20mm_M8x20mm_M8x8mm_NR_60_ShA_Mild_Steel.pdf |
|---|
