Currently unavailable - contact us for latest delivery details or to find an alternative product

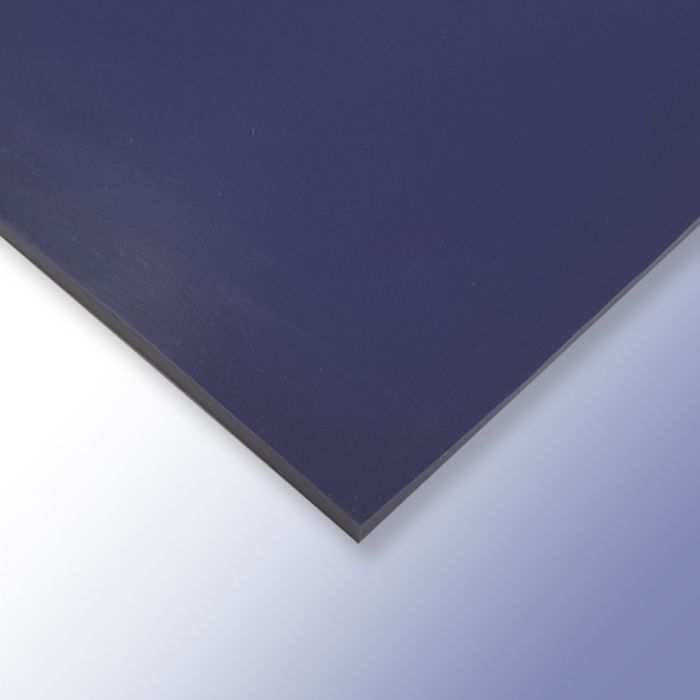

Metal Detectable Solid Silicone Sheet - 1.2m Wide x 0.5mm Thick, Blue, 63 ShA, FDA

SKU
3043923
Sold per linear metre.
  • Width: 1.2m x Thickness: 500mm x Length: 1m (up to 10m)
  • Material: Silicone (VMQ)
  • Hardness: 63 ShA
  • Colour: Blue
  • Density: 1.2 g/cm³
  • Weight: 0.72kg per Linear Metre
  • Temperature Range: Min: -60°C, Max: 200°C

Metal Detectable Silicone Sheet is an FDA-approved solution for food processing and pharmaceutical industries. Featuring metal-detectable additives for easy fragment detection, it ensures safety and contamination prevention.

Metal Detectable Solid Silicone Sheet - 1.2m Wide x 0.5mm Thick, Blue, 63 ShA, FDA

Metal Detectable Silicone Sheet is a cutting-edge solution designed to ensure the safety and performance of your products in food processing, pharmaceutical manufacturing, and other high-risk industries. This silicone sheeting incorporates metal detectable additives, enabling the easy identification and isolation of any broken fragments during routine inspections.

  • Width: 1.2m x Thickness: 500mm x Length: 1m (up to 10m)
  • Material: Silicone (VMQ)
  • Hardness: 63 ShA
  • Colour: Blue
  • Density: 1.2 g/cm³
  • Weight: 0.72kg per Linear Metre
  • Temperature Range: Min: -60°C, Max: 200°C

Key Benefits

  • Fragment Detection: The addition of metal detectable additives allows easy identification of any broken fragments, ensuring quick isolation during routine inspections. This significantly reduces the risk of foreign object contamination in your products.
  • FDA Approved: Compliant with FDA regulations, this silicone sheet is safe for use in food processing and pharmaceutical applications, giving you peace of mind when working with sensitive materials.
  • High and Low-Temperature Resistance: With the ability to withstand temperatures ranging from -60°C to 250°C (intermittent), this silicone sheet is ideal for use in a variety of environments that experience extreme heat or cold.

Applications

  • Food Processing Equipment
  • Pharmaceutical Manufacturing
  • Baking and Cooking Equipment
  • Packaging Solutions
  • Seals and Gaskets
  • Medical Devices
  • Electrical Insulation

Additional Information

With the added advantage of metal detection, this silicone sheeting ensures that any broken fragments can be quickly detected and removed, reducing the risk of contamination. Available with the option of custom processing, Polymax can cut strips, shapes, gaskets, and washers from this material to suit your specific needs. Additionally, an optional self-adhesive backing can be applied to facilitate easy installation in various applications.

Specification
Material Silicone (VMQ)
Density (g/cm³) 1.2
Width (mm) 1200
Length (mm) 1000
Roll Length (m) 10
Thickness (mm) 0.5
Tolerance Thickness (±mm) 0.2
Tolerance Width (±mm) 36
Hardness 63 ShA
Tolerance Hardness (±) 5
Colour Blue
Maximum Temperature (°C) 200
Minimum Temperature (°C) -60
Tensile Strength 8 MPa
Elongation at break (%) 370
Compression Set (%) 11
Compression Set Testing Parameters 24h @ 150°C
Sold by the metre Yes
Weight (kg) 0.72
Form Roll
*Dimensions can vary, they are typical only. Stated temperature range and approvals do not apply to self adhesive backing.
