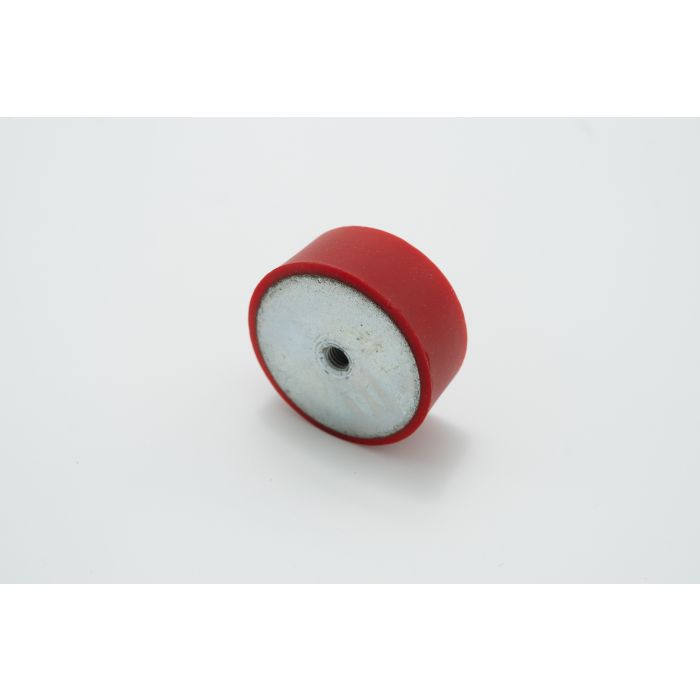

Type E Cylindrical Mount F, Ø8mm H10mm M3x3mm, VMQ 55 ShA Stainless Steel (316 Grade)
- Mount Type: E (Female)
- Diameter: 8mm
- Height: 10mm
- Female Bolt Size: M3
- Female Bolt Depth: 3mm
- Material: Silicone (VMQ)
- Metal Type: Stainless Steel (316 Grade)
- Colour: Red Oxide
- Weight: 0.002Kg
- Hardness: 55 ShA
- Maximum Compression Load: 5.97 Kg
Type E Bobbin Mounts are designed to offer exceptional vibration isolation in a variety of applications. A simple yet effective solution, these mounts are ideal for use in compression applications, offering versatility across multiple industries.
Type E Cylindrical Mount F, Ø8mm H10mm M3x3mm, VMQ 55 ShA Stainless Steel (316 Grade)
Type E Bobbin Mounts provide exceptional vibration isolation, ideal for compression applications across various industries. They effectively absorb vibrations, protecting sensitive components and enhancing system performance. Suitable for engines, compressors, motors, and more, these mounts are versatile yet not for failsafe use.
- Mount Type: E (Female)
- Diameter: 8mm
- Height: 10mm
- Female Bolt Size: M3
- Female Bolt Depth: 3mm
- Material: Silicone (VMQ)
- Metal Type: Stainless Steel (316 Grade)
- Colour: Red Oxide
- Weight: 0.002Kg
- Hardness: 55 ShA
- Maximum Compression Load: 5.97 Kg
Key Benefits
- Efficient Vibration Isolation: Designed to absorb and dampen vibrations, these mounts protect sensitive components, reducing wear and tear and enhancing overall system performance.
- Compression Performance: Ideal for use in compression and applications, providing reliable performance in a wide variety of industrial settings.
Applications
Type E Bobbin Mounts are ideal for industries and machinery that require effective vibration isolation. Common applications include:
- Engines
- Compressors
- Motors
- Electronics
- Pumps
- Automotive
- Agricultural Equipment
- Construction Machinery
- HVAC Systems
- Railway
- Electric Motors
- Renewable Energy
- Generators
- Transportation
- Instrumentation
- Medical Equipment
- Laboratory Equipment
Please Note: These mounts are not suitable for failsafe applications.
Additional Information
- Not Suitable for failsafe applications.
- Compression Capability, these mounts provide excellent performance in both compression applications.
Silicone compounds possess excellent resistance to temperature extremes. Their retention of properties at high temperatures is superior to other elastic materials. Silicone has relatively poor tensile strength, tear resistance, and abrasion resistance.
Temperature Range
- Up to 230°C
- Down to -50°C
Chemical Resistance
Good resistance to:
- Dry heat
- High-aniline point oils
- Chlorinated DI-phenyls
- Food processing applications
- Excellent ozone resistance
- Water (low temperature only)
Not compatible with:
- Most petroleum fluids
- Ketones (MEK, Acetone)
| Colour | Red oxide |
|---|---|
| Hardness | 55 ShA |
| Metal Type | Stainless Steel (316 Grade) |
| Mount Type | E |
| Elongation at break (%) | 400 |
| Material | Silicone (VMQ) |
| Maximum Temperature (°C) | 230 |
| Minimum Temperature (°C) | -50 |
| Density (g/cm³) | 1.1 |
| Height (mm) | 10 |
| Diameter (mm) | 8 |
| Maximum Load. Compression (kg) | 5.97 |
| Tensile Strength | 7.8 MPa |
| Tolerance Hardness (±) | 5 |
| Thread Length/Depth 1 (mm) | 3 |
| Thread Size 1 | M3 |
| Weight (kg) | 0.002 |
| Product Datasheet | E0810M3-SRA4-1.55-Type_E_Cylindrical_Mount_F_dia8mm_H10mm_M3x3mm_VMQ_55_ShA_Stainless_Steel_(316_Grade).pdf |
|---|
