What Are Encapsulated O-Rings? Understanding Their Role, Applications, and Selection Criteria

What Are Encapsulated O-Rings?

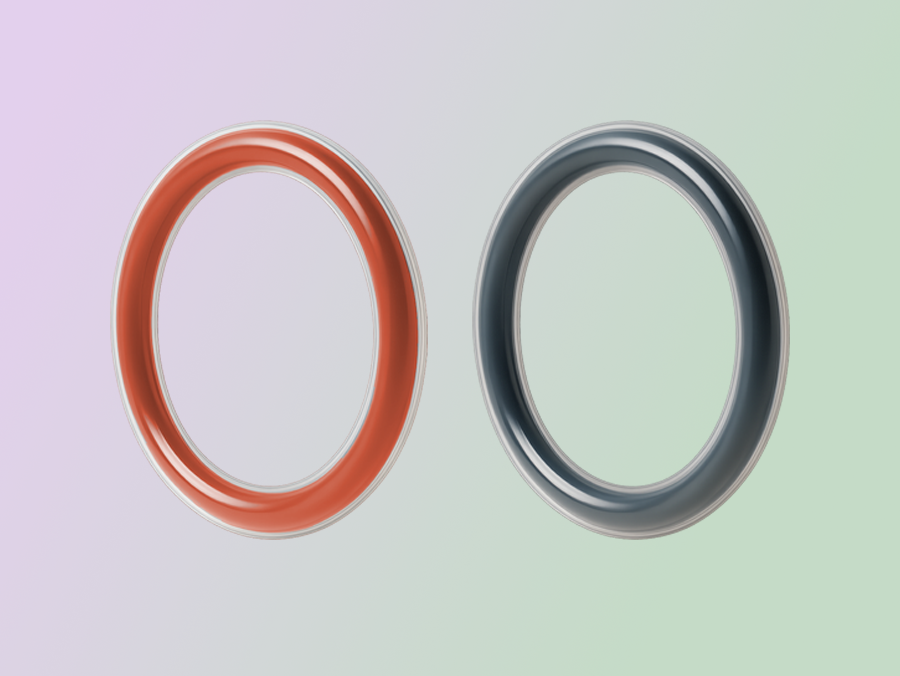

Encapsulated O-rings are specialised seals that combine the benefits of two distinct materials: an elastomeric core and a fluoropolymer outer jacket. The elastomeric core is typically made from materials like Viton® (FKM) or Silicone rubber, which provide the necessary resilience and dimensional stability for effective sealing. The outer jacket, made from fluoropolymers such as FEP (Fluorinated Ethylene Propylene) or PFA (Perfluoroalkoxy), offers exceptional chemical resistance and inertness, making these O-rings suitable for use in aggressive chemical environments.

These O-rings are particularly beneficial in applications where traditional elastomer O-rings would fail due to extreme temperatures or aggressive chemicals.

Click here to contact our specialist O-Ring team for more information & check availability. Alternatively call

+44 (0) 1420 474123

Key Benefits of Encapsulated O-Rings

Encapsulated O-rings provide an effective solution for sealing in systems that face aggressive chemicals, high temperatures, or other extreme conditions. The dual-material design allows the O-ring to leverage the advantages of both materials:

Chemical Resistance:

The outer jacket offers superior chemical resistance, making it ideal for applications involving highly corrosive or reactive substances.

Elasticity and Flexibility:

The elastomeric outer layer allows the O-ring to conform to the sealing surfaces & compensate for any irregularities, ensuring an effective seal.

For enhanced flexibility, the o-ring core material can be supplied with a hollow core, without compromising the performance of the o-ring.

Core Material	Jacket Material	Min Temp °C	Max Temp °C
Viton	FEP	-20	+204
Viton	PFA	-20	+260
Silicone	FEP	-60	+204
Silicone	PFA	-60	+260
EPDM	FEP	-40	+120
EPDM	PFA	-20	+212

Temperature Tolerance:

Encapsulated O-rings offer excellent temperature performance due to the combination of materials used in their construction. The elastomeric core, typically made from materials like Viton® or Silicone, provides resilience and sealing capability in a wide temperature range. Viton® can withstand high temperatures up to 400°F (204°C), while Silicone offers flexibility in low-temperature conditions.

The outer fluoropolymer jacket, made from materials like FEP or PFA, enhances chemical resistance and protects the core from degradation in extreme heat. Together, these materials allow encapsulated O-rings to perform reliably across a broad spectrum of temperatures, making them ideal for demanding applications in both high and low-temperature environments.

Ultra Low Temperature
And Cryogenic Applications

For extreme low temperature and cryogenic applications Polymax supply an Astro Seal, originally designed for the space programme to combat the harsh environments associated with liquid oxygen, these o-rings can be used for liquid nitrogen and hydrogen.

The Astro seal compromises of a 302 stainless steel flat wound ribbon spring encapsulated in either an FEP or PFA jacket to form an o-rings

Temperature Range:

FEP/Astro -250°C to + 204°C
PFA/Astro -250°C to + 260°C

Selection Criteria for Encapsulated O-Rings

Selecting the right encapsulated O-ring involves several critical factors to ensure it performs effectively in its intended application. Below are the key selection criteria:

Material Compatibility:

The core material and the elastomeric outer layer must be compatible with the fluids and chemicals in the system.

Temperature Resistance:

Encapsulated O-rings must be able to withstand the temperature extremes of their operating environment.

Chemical Resistance:

It is important to match the O-ring material to the specific substances the system will encounter.

Pressure Rating:

Ensure that the selected O-ring can handle the specific pressure levels in your application, taking into account both the core and elastomeric layer’s capabilities.

Size and Fit:

Accurate sizing is essential for the effective sealing of the system. Encapsulated O-rings must fit precisely into their grooves to prevent leakage or failure.

Sterility Requirements:

Ensure the encapsulated O-ring material complies with regulatory standards such as FDA, USP Class VI, or other industry-specific requirements to maintain a contamination-free environment.

Main Applications of Encapsulated O-Rings

Encapsulated O-rings are essential in industries where chemical exposure, high temperatures, and pressure extremes are common. Some of the key applications include:

Chemical Processing

In chemical processing plants, encapsulated O-rings are used to seal equipment handling aggressive chemicals, solvents, and acids. The core provides chemical inertness, while the outer elastomeric material offers flexibility and durability under pressure, ensuring leak-free operation.

Pharmaceutical
Industry

In pharmaceutical applications, where maintaining the integrity of sterile environments is critical, encapsulated O-rings are used in pumps, mixers, and valves. Their ability to resist contamination and chemical degradation makes them an ideal choice for high-purity systems.

Aerospace

The aerospace industry demands components that can withstand extreme temperature fluctuations and aggressive fluids. Encapsulated O rings are used in fuel systems, pneumatic actuators, and hydraulic seals, providing reliable seals in challenging operating conditions

Food and Beverage

Encapsulated O-rings are used in food and beverage processing systems where the sealing material must comply with stringent safety standards. The chemical resistance and the flexibility of the elastomeric outer layer make these O-rings suitable for environments that require both hygiene and performance.

Oil and Gas

In the oil and gas industry, encapsulated O-rings are utilised in high-pressure and high-temperature applications, including “downhole” equipment and pumps. The O-rings' chemical resistance ensures that they perform effectively even in the presence of harsh chemicals and extreme environmental conditions.

Medical Devices

Medical devices require precise sealing to maintain function and safety. Encapsulated O-rings are ideal for medical systems like pumps and infusion devices, where cleanliness, resistance to aggressive chemicals, and temperature tolerance are necessary for optimal performance.
