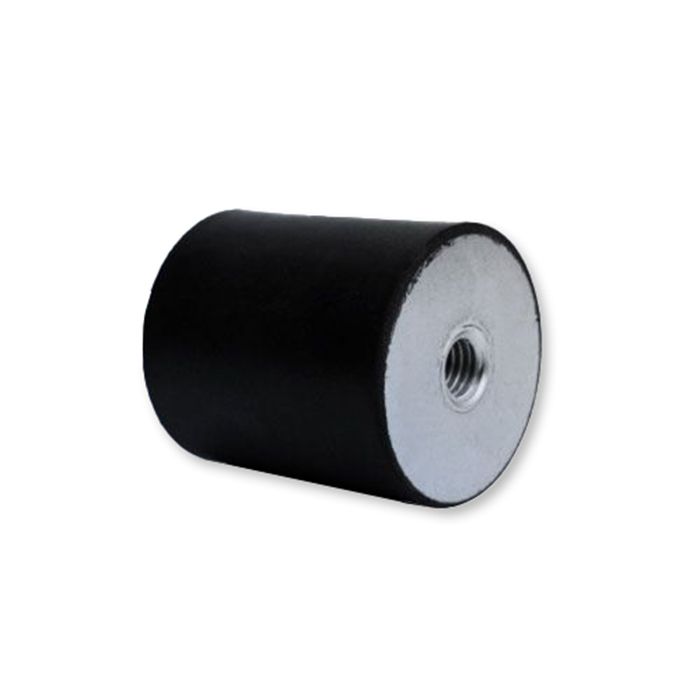

Type E Cylindrical Mount F, Ø40mm H40mm M10x10mm, CR 55 ShA Stainless Steel (316 Grade)

Type E Bobbin Mounts provide exceptional vibration isolation, ideal for compression applications across various industries. They effectively absorb vibrations, protecting sensitive components and enhancing system performance. Suitable for engines, compressors, motors, and more, these mounts are versatile yet not for failsafe use.

• Mount Type: E (Female)
• Diameter: 40mm
• Height: 40mm
• Female Bolt Size: M10
• Female Bolt Depth: 10mm
• Material: Chloroprene (CR)
• Metal Type: Stainless Steel (316 Grade)
• Colour: Black
• Weight: 0.079Kg
• Hardness: 55 ShA
• Maximum Compression Load: 82.72 Kg

Key Benefits

• Efficient Vibration Isolation: Designed to absorb and dampen vibrations, these mounts protect sensitive components, reducing wear and tear and enhancing overall system performance.
• Compression Performance: Ideal for use in compression and applications, providing reliable performance in a wide variety of industrial settings.

Applications

Type E Bobbin Mounts are ideal for industries and machinery that require effective vibration isolation. Common applications include:

• Engines
• Compressors
• Motors
• Electronics
• Pumps
• Automotive
• Agricultural Equipment
• Construction Machinery
• HVAC Systems
• Railway
• Electric Motors
• Renewable Energy
• Generators
• Transportation
• Instrumentation
• Medical Equipment
• Laboratory Equipment

Please Note: These mounts are not suitable for failsafe applications.

Additional Information

• Not Suitable for failsafe applications.
• Compression Capability, these mounts provide excellent performance in both compression applications.

CR (Chloroprene Rubber / Neoprene) offers excellent resistance to weathering, ozone, and aging, with stable performance over a wide temperature range. It provides good resistance to moderate oils, fuels, and greases, as well as many hydraulic fluids and refrigerants. CR maintains mechanical strength, resilience, and flexibility under thermal and chemical stress. Performs well in applications exposed to sunlight, saltwater, and outdoor conditions, with strong dimensional stability and resistance to compression set. Its balanced physical properties make it suitable for demanding industrial and chemical environments where long-term durability is required.

Temperature Range

• Continuous service: –30°C to +120°C
• Intermittent peaks: up to +130°C
• Special compounds may extend high-temperature resistance up to +150°C

Chemical Resistance

Good resistance to:

• Moderate petroleum-based oils, greases, and fuels
• Hydraulic fluids (some mineral and phosphate ester types)
• Alcohols, ketones, and mild acids and alkalis
• Ozone, weathering, and sunlight

Not compatible with:

• Strong acids and alkalis
• Aromatic hydrocarbons
• Concentrated ketones
• Strong oxidizing agents
