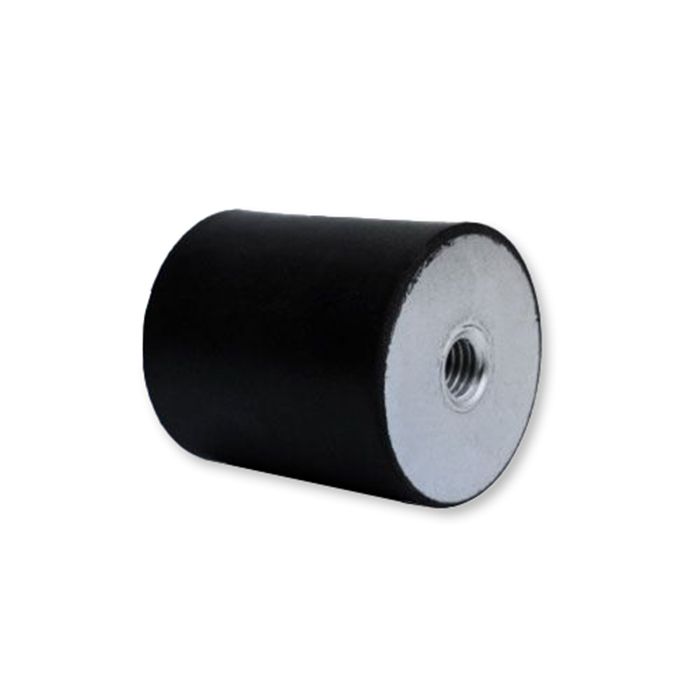

Type E Cylindrical Mount F, Ø25mm H25mm M6x6mm, NBR 55 ShA Standard Steel

Type E Bobbin Mounts provide exceptional vibration isolation, ideal for compression applications across various industries. They effectively absorb vibrations, protecting sensitive components and enhancing system performance. Suitable for engines, compressors, motors, and more, these mounts are versatile yet not for failsafe use.

• Mount Type: E (Female)
• Diameter: 25mm
• Height: 25mm
• Female Bolt Size: M6
• Female Bolt Depth: 6mm
• Material: Nitrile (NBR)
• Metal Type: Standard Steel
• Colour: Black
• Weight: 0.023Kg
• Hardness: 55 ShA
• Maximum Compression Load: 34.56 Kg

Key Benefits

• Efficient Vibration Isolation: Designed to absorb and dampen vibrations, these mounts protect sensitive components, reducing wear and tear and enhancing overall system performance.
• Compression Performance: Ideal for use in compression and applications, providing reliable performance in a wide variety of industrial settings

Applications

Type E Bobbin Mounts are ideal for industries and machinery that require effective vibration isolation. Common applications include:

• Engines
• Compressors
• Motors
• Electronics
• Pumps
• Automotive
• Agricultural Equipment
• Construction Machinery
• HVAC Systems
• Railway
• Electric Motors
• Renewable Energy
• Generators
• Transportation
• Instrumentation
• Medical Equipment
• Laboratory Equipment

Please Note: These mounts are not suitable for failsafe applications.

Additional Information

• Not Suitable for failsafe applications.
• Compression Capability, these mounts provide excellent performance in both compression applications.

Nitrile Rubber (NBR) compounds offer excellent resistance to petroleum-based oils, fuels, and greases, along with good performance in aliphatic and aromatic hydrocarbons. They are resistant to water, certain hydraulic fluids, and mild acids and alkalis. Nitrile also provides good abrasion and tear resistance, a low compression set, and reliable sealing performance over a wide temperature range.

Temperature Range

• Up to 100°C (Intermittent)
• Down to -25°C
• Recommended temperature range: -30°C to +100°C

Chemical Resistance

Good resistance to:

• Petroleum-based oils, fuels, and greases
• Hydrocarbon-based fuels and hydraulic fluids (mineral oil and some phosphate ester types)
• Mild acids and alkalis
• Water and steam up to 100°C
• Ozone and weathering

Not compatible with:

• Strong oxidizing agents
• Ketones
• Esters
• Chlorinated hydrocarbons
