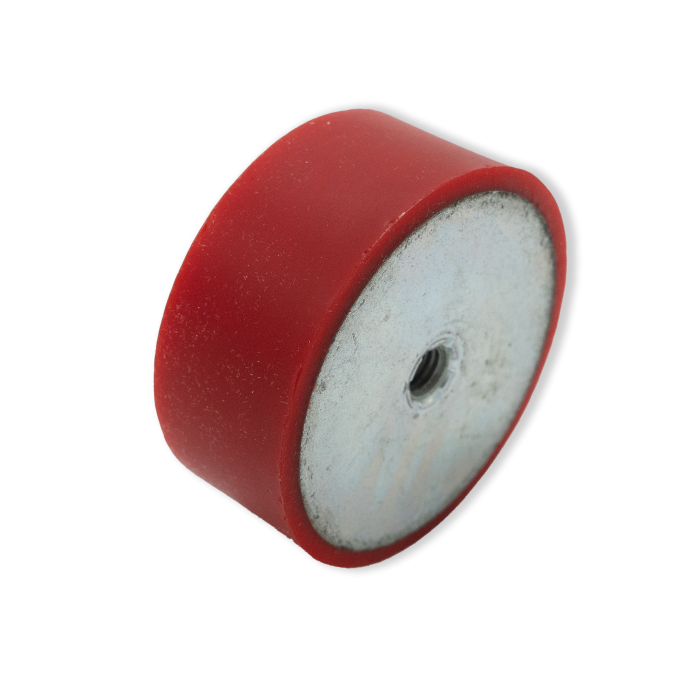

Type C Cylindrical Mount F/F, Ø75mm H55mm M12x12mm, VMQ 60 ShA Standard Steel

Type C Bobbin Mounts are designed to offer outstanding vibration isolation across a wide range of applications. These mounts are ideal for use in both compression and shear applications, providing effective isolation for sensitive machinery and equipment.

• Mount Type: C (Female/Female)
• Diameter: 75mm
• Height: 55mm
• Female Bolt Size: M12
• Female Bolt Depth: 12mm
• Material: Silicone (VMQ)
• Hardness: 60 ShA
• Maximum Load Compression: 331.25Kg
• Maximum Shear Load: 33.125Kg
• Metal Type: Standard Steel
• Colour: Red Oxide
• Weight: 0.374Kg

Key Benefits

• Effective Vibration Isolation: The C Type Cylindrical Mounts effectively reduce vibrations, minimising wear and tear on machinery, and improving operational efficiency.
• Compression and Shear Performance: These mounts are designed to perform well in both compression and shear applications, offering reliable vibration isolation in a variety of industrial settings.
• Female/Female Thread Design: Featuring a standard Female/Female thread, these mounts are easy to install in a wide range of applications requiring vibration isolation.

Applications

Type C Bobbin Mounts are ideal for a broad range of industries where vibration isolation is essential. These mounts are commonly used in:

• Automotive
• Agricultural Equipment
• Construction Machinery
• HVAC Systems
• Compressors
• Railway
• Electric Motors
• Renewable Energy
• Generators
• Transportation
• Instrumentation
• Medical Equipment
• Laboratory Equipment

Additional Information

• Mounting Type: Female/Female thread design suitable for use in a variety of vibration isolation applications.
• Not Suitable For failsafe applications.
• Compression and Shear Capability: These mounts provide excellent performance in both compression and shear applications.

Silicone compounds possess excellent resistance to temperature extremes. Their retention of properties at high temperatures is superior to other elastic materials. Silicone has relatively poor tensile strength, tear resistance, and abrasion resistance.

Temperature Range

• Up to 230°C
• Down to -50°C

Chemical Resistance

Good resistance to:

• Dry heat
• High-aniline point oils
• Chlorinated DI-phenyls
• Food processing applications
• Excellent ozone resistance
• Water (low temperature only)

Not compatible with:

• Most petroleum fluids
• Ketones (MEK, Acetone)
