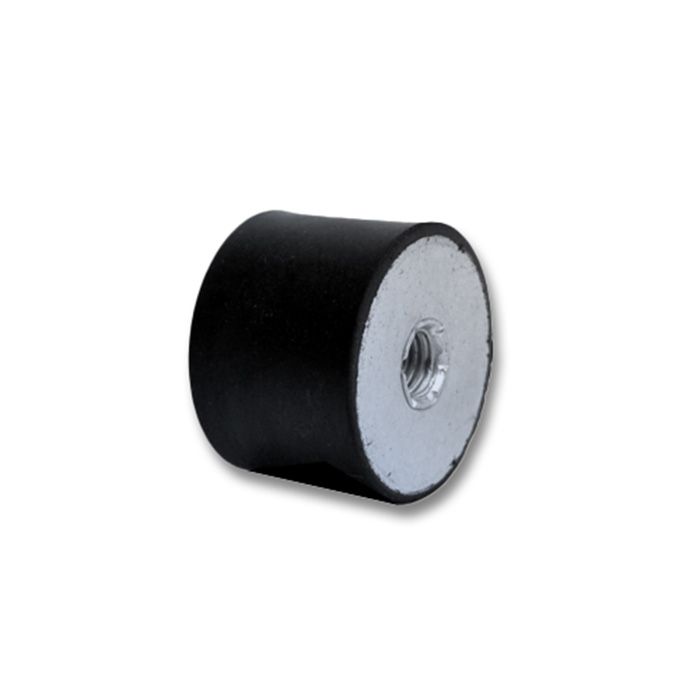

Type C Cylindrical Mount F/F, Ø30mm H30mm M6x6mm, NBR 60 ShA Standard Steel

Type C Bobbin Mounts are designed to offer outstanding vibration isolation across a wide range of applications. These mounts are ideal for use in both compression and shear applications, providing effective isolation for sensitive machinery and equipment.

• Mount Type: C (Female/Female)
• Diameter: 30mm
• Height: 30mm
• Female Bolt Size: M6
• Female Bolt Depth: 6mm
• Material: Nitrile (NBR)
• Hardness: 60 ShA
• Maximum Load Compression: 52.5Kg
• Maximum Shear Load: 6.825Kg
• Metal Type: Standard Steel
• Colour: Black
• Weight: 0.062Kg

Key Benefits

• Effective Vibration Isolation: The C Type Cylindrical Mounts effectively reduce vibrations, minimising wear and tear on machinery, and improving operational efficiency.
• Compression and Shear Performance: These mounts are designed to perform well in both compression and shear applications, offering reliable vibration isolation in a variety of industrial settings.
• Female/Female Thread Design: Featuring a standard Female/Female thread, these mounts are easy to install in a wide range of applications requiring vibration isolation.

Applications

Type C Bobbin Mounts are ideal for a broad range of industries where vibration isolation is essential. These mounts are commonly used in:

• Automotive
• Agricultural Equipment
• Construction Machinery
• HVAC Systems
• Compressors
• Railway
• Electric Motors
• Renewable Energy
• Generators
• Transportation
• Instrumentation
• Medical Equipment
• Laboratory Equipment

Additional Information

• Mounting Type: Female/Female thread design suitable for use in a variety of vibration isolation applications.
• Not Suitable For failsafe applications.
• Compression and Shear Capability: These mounts provide excellent performance in both compression and shear applications.

Nitrile Rubber (NBR) compounds offer excellent resistance to petroleum-based oils, fuels, and greases, along with good performance in aliphatic and aromatic hydrocarbons. They are resistant to water, certain hydraulic fluids, and mild acids and alkalis. Nitrile also provides good abrasion and tear resistance, a low compression set, and reliable sealing performance over a wide temperature range.

Temperature Range

• Up to 100°C (Intermittent)
• Down to -25°C
• Recommended temperature range: -30°C to +100°C

Chemical Resistance

Good resistance to:

• Petroleum-based oils, fuels, and greases
• Hydrocarbon-based fuels and hydraulic fluids (mineral oil and some phosphate ester types)
• Mild acids and alkalis
• Water and steam up to 100°C
• Ozone and weathering

Not compatible with:

• Strong oxidizing agents
• Ketones
• Esters
• Chlorinated hydrocarbons
