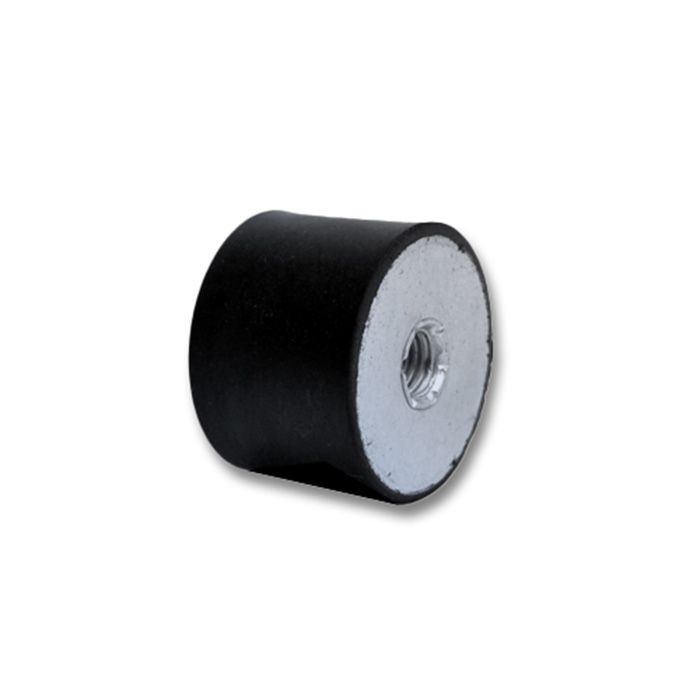

Type C Cylindrical Mount F/F, Ø30mm H20mm M8x8mm, EPDM 45 ShA Standard Steel

Type C Bobbin Mounts are designed to offer outstanding vibration isolation across a wide range of applications. These mounts are ideal for use in both compression and shear applications, providing effective isolation for sensitive machinery and equipment.

• Mount Type: C (Female/Female)
• Diameter: 30mm
• Height: 20mm
• Female Bolt Size: M8
• Female Bolt Depth: 8mm
• Material: EPDM
• Hardness: 45 ShA
• Maximum Load Compression: 26.25Kg
• Maximum Shear Load: 2.625Kg
• Metal Type: Standard Steel
• Colour: Black
• Weight: 0.052Kg

Key Benefits

• Effective Vibration Isolation: The C Type Cylindrical Mounts effectively reduce vibrations, minimising wear and tear on machinery, and improving operational efficiency.
• Compression and Shear Performance: These mounts are designed to perform well in both compression and shear applications, offering reliable vibration isolation in a variety of industrial settings.
• Female/Female Thread Design: Featuring a standard Female/Female thread, these mounts are easy to install in a wide range of applications requiring vibration isolation.

Applications

Type C Bobbin Mounts are ideal for a broad range of industries where vibration isolation is essential. These mounts are commonly used in:

• Automotive
• Agricultural Equipment
• Construction Machinery
• HVAC Systems
• Compressors
• Railway
• Electric Motors
• Renewable Energy
• Generators
• Transportation
• Instrumentation
• Medical Equipment
• Laboratory Equipment

Additional Information

• Mounting Type: Female/Female thread design suitable for use in a variety of vibration isolation applications.
• Not Suitable For failsafe applications.
• Compression and Shear Capability: These mounts provide excellent performance in both compression and shear applications.

EPDM compounds offer excellent resistance to weathering, ozone, and aging, with stable performance across a wide temperature range. They provide outstanding resistance to water, steam, and many polar solvents, as well as brake fluids and phosphate-ester-based hydraulic fluids. EPDM maintains flexibility, resilience, and mechanical strength under thermal and chemical stress. Performs reliably in outdoor, automotive, and industrial applications where long-term durability and resistance to compression set are required.

Temperature Range

• Up to 150°C (Intermittent)
• Down to -45°C
• Recommended temperature range: -40°C to +120°C

Chemical Resistance

Good resistance to:

• Hot water and steam up to 149°C (with special compounds up to 260°C)
• Glycol-based brake fluids (DOT 3 & 4) and silicone-based brake fluids (DOT 5) up to 149°C
• Many organic and inorganic acids
• Cleaning agents, sodium and potassium alkalis
• Phosphate-ester based hydraulic fluids (HFD-R)
• Silicone oil and grease
• Many polar solvents (alcohols, ketones, esters)
• Ozone, aging, and weather resistant

Not compatible with:

• Mineral oil products (oils, greases, and fuels)
