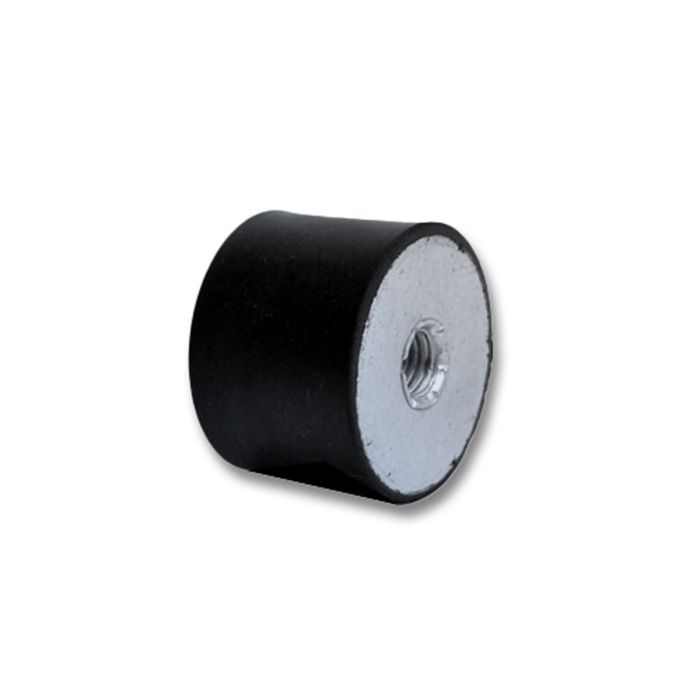

Type C Cylindrical Mount F/F, Ø20mm H25mm M6x6mm, CR 55 ShA Standard Steel

Type C Bobbin Mounts are designed to offer outstanding vibration isolation across a wide range of applications. These mounts are ideal for use in both compression and shear applications, providing effective isolation for sensitive machinery and equipment.

• Mount Type: C(Female/Female)
• Diameter: 20mm
• Height: 25mm
• Female Bolt Size: M6
• Female Bolt Depth: 6mm
• Material: Chloroprene (CR)
• Hardness: 55 ShA
• Maximum Load Compression: 23.04Kg
• Maximum Shear Load: 3.9168Kg
• Metal Type: Standard Steel
• Colour: Black
• Weight: 0.016Kg

Key Benefits

• Effective Vibration Isolation: The C Type Cylindrical Mounts effectively reduce vibrations, minimising wear and tear on machinery, and improving operational efficiency.
• Compression and Shear Performance: These mounts are designed to perform well in both compression and shear applications, offering reliable vibration isolation in a variety of industrial settings.
• Female/Female Thread Design: Featuring a standard Female/Female thread, these mounts are easy to install in a wide range of applications requiring vibration isolation.

Applications

Type C Bobbin Mounts are ideal for a broad range of industries where vibration isolation is essential. These mounts are commonly used in:

• Automotive
• Agricultural Equipment
• Construction Machinery
• HVAC Systems
• Compressors
• Railway
• Electric Motors
• Renewable Energy
• Generators
• Transportation
• Instrumentation
• Medical Equipment
• Laboratory Equipment

Additional Information

• Mounting Type: Female/Female thread design suitable for use in a variety of vibration isolation applications.
• Not Suitable For failsafe applications.
• Compression and Shear Capability: These mounts provide excellent performance in both compression and shear applications.

CR (Chloroprene Rubber / Neoprene) offers excellent resistance to weathering, ozone, and aging, with stable performance over a wide temperature range. It provides good resistance to moderate oils, fuels, and greases, as well as many hydraulic fluids and refrigerants. CR maintains mechanical strength, resilience, and flexibility under thermal and chemical stress. Performs well in applications exposed to sunlight, saltwater, and outdoor conditions, with strong dimensional stability and resistance to compression set. Its balanced physical properties make it suitable for demanding industrial and chemical environments where long-term durability is required.

Temperature Range

• Continuous service: –30°C to +120°C
• Intermittent peaks: up to +130°C
• Special compounds may extend high-temperature resistance up to +150°C

Chemical Resistance

Good resistance to:

• Moderate petroleum-based oils, greases, and fuels
• Hydraulic fluids (some mineral and phosphate ester types)
• Alcohols, ketones, and mild acids and alkalis
• Ozone, weathering, and sunlight

Not compatible with:

• Strong acids and alkalis
• Aromatic hydrocarbons
• Concentrated ketones
• Strong oxidizing agents
