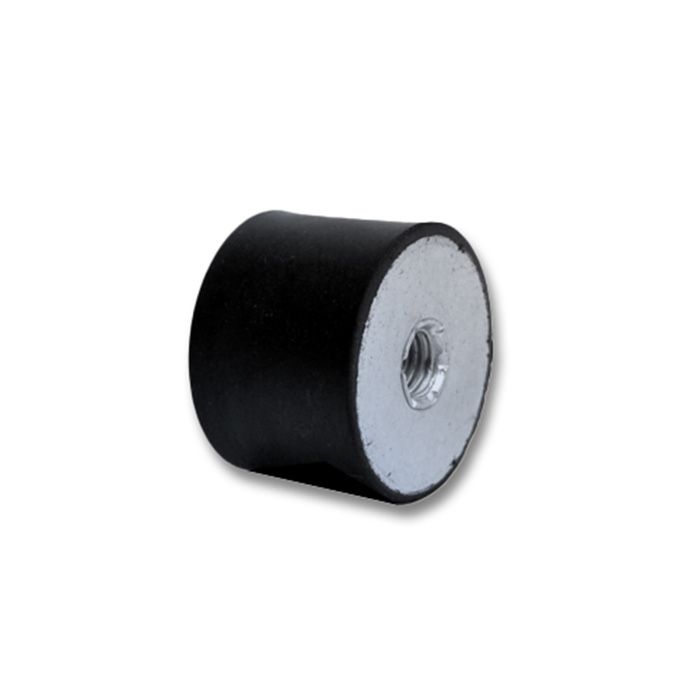

Type C Cylindrical Mount F/F, Ø10mm H18mm M3x3mm, NR 45 ShA Standard Steel

Type C Bobbin Mounts are designed to offer outstanding vibration isolation across a wide range of applications. These mounts are ideal for use in both compression and shear applications, providing effective isolation for sensitive machinery and equipment.

• Mount Type: C(Female/Female)
• Diameter: 10mm
• Height: 18mm
• Female Bolt Size: M3
• Female Bolt Depth: 3mm
• Material: Natural Rubber (NR)
• Hardness: 45 ShA
• Maximum Load Compression: 7Kg
• Maximum Shear Load: 1.19Kg
• Metal Type: Standard Steel
• Colour: Black
• Weight: 0.005Kg

Key Benefits

• Effective Vibration Isolation: The C Type Cylindrical Mounts effectively reduce vibrations, minimising wear and tear on machinery, and improving operational efficiency.
• Compression and Shear Performance: These mounts are designed to perform well in both compression and shear applications, offering reliable vibration isolation in a variety of industrial settings.
• Female/Female Thread Design: Featuring a standard Female/Female thread, these mounts are easy to install in a wide range of applications requiring vibration isolation.

Applications

Type C Bobbin Mounts are ideal for a broad range of industries where vibration isolation is essential. These mounts are commonly used in:

• Automotive
• Agricultural Equipment
• Construction Machinery
• HVAC Systems
• Compressors
• Railway
• Electric Motors
• Renewable Energy
• Generators
• Transportation
• Instrumentation
• Medical Equipment
• Laboratory Equipment

Additional Information

• Mounting Type: Female/Female thread design suitable for use in a variety of vibration isolation applications.
• Not Suitable For failsafe applications.
• Compression and Shear Capability: These mounts provide excellent performance in both compression and shear applications.

Natural rubber (NR) is a versatile and adaptable material characterised by its ability to accept and recover from large deformations. Unlike steel or other metals, it possesses some inherent damping characteristics and can store a larger amount of elastic strain energy per unit volume, making it ideal for use in dampers or as a rubber spring. Natural rubber compounds have a high tensile strength, long fatigue life, and excellent tear resistance.

Natural rubber compounds also exhibit low hysteresis compared with other rubbers. This results in lower heat buildup during repeated deformations, making it an ideal polymer for vibration isolation. Other mechanical properties such as resistance to fatigue, abrasion, tear, and flex are also generally superior in these compounds compared to synthetic elastomers.

NR compounds are not suitable for applications requiring contact with oil, kerosene, diesel, petrol, or solvents like benzene and toluene. These compounds also exhibit poor oxygen and ozone resistance, although this can be somewhat improved by adding antioxidants.

Should you like to discuss your application further, please call us on +44 1420 474123 for more information.

Temperature Range

• Up to 100°C (Intermittent)
• Down to -25°C

Recommended temperature range: -10°C to +100°C

Chemical Resistance

Good resistance to water swell, dilute acids, dilute alkalis, and alcohol.

Not compatible with:

• Mineral oil products (oils, greases, and fuels)
• Steam
• Aliphatic, halogenated, and aromatic hydrocarbons
• Phosphates
• Concentrated acids and alkalis

For detailed chemical compatibility, please see Chemical Compatibility.
