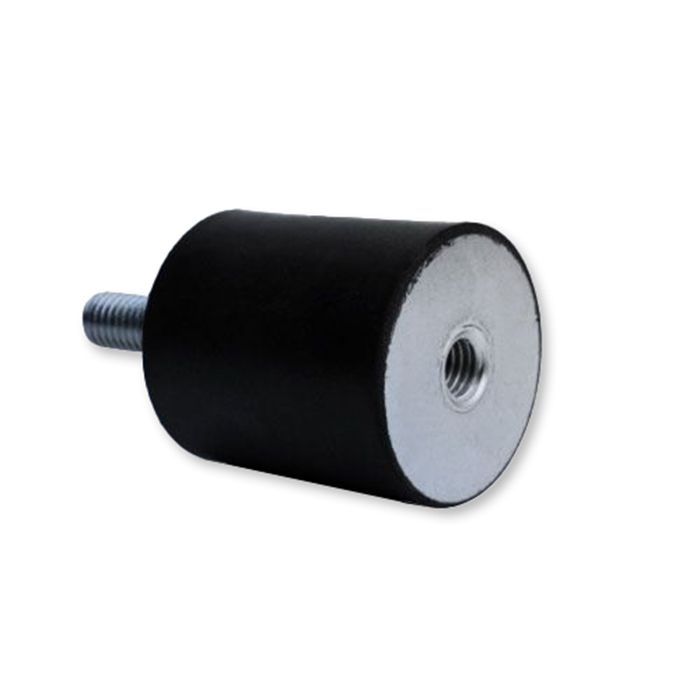

Type B Cylindrical Mount M/F, Ø15mm H12mm M5x12mm M5x5mm, NR 60 ShA Standard Steel

• Mount Type: B(Male/Female)
• Diameter: 15mm
• Height: 12mm
• Male Bolt Size: M5
• Male Bolt Length: 12mm
• Female Bolt Size: M5
• Female Bolt Length: 5mm
• Material: Natural Rubber (NR)
• Hardness: 60 ShA
• Maximum Load Compression: 14kg
• Maximum Shear Load: 1.4kg
• Metal Type: Standard Steel
• Colour: Black
• Weight: 0.007kg

Type B Bobbin Mounts are designed to provide exceptional vibration isolation across a wide range of applications. These mounts are ideal for both compression and shear applications, ensuring effective isolation and protection for sensitive machinery.

Key Benefits

• Effective Vibration Isolation: These mounts are designed to absorb vibrations and minimise noise, protecting machinery and components from wear and extending their operational lifespan.
• Compression and Shear Performance: Ideal for use in both compression and shear applications, providing flexible and reliable vibration isolation across various industries.
• Male/Female Thread Design: The standard Male/Female thread design ensures ease of installation in a variety of vibration isolation applications.

Applications

Type B Bobbin Mounts are suitable for a wide range of industries and applications where vibration isolation is critical. These mounts are commonly used in:

• Automotive
• Agricultural Equipment
• Construction Machinery
• HVAC Systems
• Compressors
• Railway
• Electric Motors
• Renewable Energy
• Generators
• Transportation
• Instrumentation
• Medical Equipment
• Laboratory Equipment

These mounts are perfect for compression applications in a range of machinery, offering reliable vibration isolation and minimising damage from vibrations in industries like automotive, construction, and HVAC.

Additional Information

• Mounting Type: Male/Female thread design for easy installation in a variety of vibration isolation applications.
• Performance: These mounts are effective for both compression and shear applications, ensuring reliable performance in various industrial settings.
• Not Suitable for Failsafe applications.

Designed to meet the vibration isolation needs of a wide range of industries, Type B Bobbin Mounts provide an excellent solution for reducing the effects of vibrations and enhancing machinery performance. Whether for use in automotive, agricultural, construction, or HVAC applications, these mounts offer reliable, long-lasting vibration isolation to protect sensitive equipment and extend its operational life.
