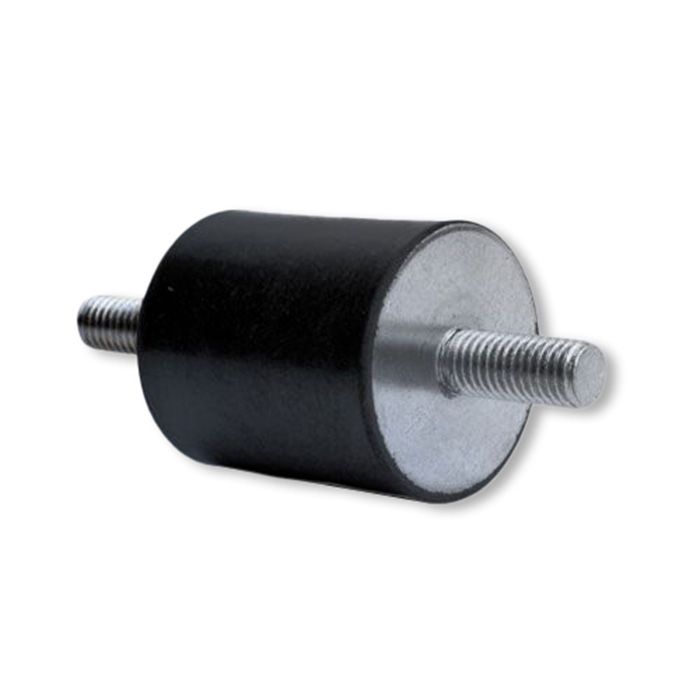

Type A Cylindrical Mount M/M, Ø75mm x H25mm M12x37mm, FKM 75 ShA Standard Steel

• Mount Type: A
• Diameter: 75mm
• Height: 25mm
• Male Bolt Size: M12
• Male Bolt Length: 37mm
• Material: FKM
• Hardness: 75 ShA
• Maximum Load Compression: 895.8Kg
• Maximum Shear Load: 62.7Kg
• Metal Type: Standard Steel
• Colour: Black
• Weight: 0.176Kg

Key Benefits

• Efficient Vibration Isolation: Designed to absorb and dampen vibrations, these mounts protect sensitive components, reducing wear and tear and enhancing overall system performance.
• Compression and Shear Performance: Ideal for use in both compression and shear applications, providing reliable performance in a wide variety of industrial settings.

Applications

Type A Bobbin Mounts are ideal for industries and machinery that require effective vibration isolation. Common applications include:

• Engines
• Compressors
• Motors
• Electronics
• Pumps
• Automotive
• Agricultural Equipment
• Construction Machinery
• HVAC Systems
• Railway
• Electric Motors
• Renewable Energy
• Generators
• Transportation
• Instrumentation
• Medical Equipment
• Laboratory Equipment

These anti-vibration mounts are suitable for compression applications across a wide range of industries, providing reliable vibration isolation for machinery, sensitive components, and critical systems.

Please Note: These mounts are not suitable for failsafe applications.

Additional Information

• Mounting Type: Male/Male thread design suitable for use in a variety of vibration isolation applications.
• Not Suitable for Failsafe applications.
• Compression and Shear Capability: These mounts provide excellent performance in both compression and shear applications.

Designed to meet the vibration isolation needs of a wide range of industries, the Type A Bobbin Mounts provide an effective solution for reducing vibrations and extending the lifespan of machinery and components. Their robust design, flexibility, and durability make them an ideal choice for applications in automotive, agricultural, HVAC.

FKM (fluoroelastomer) compounds offer outstanding resistance to high temperatures, chemicals, and oils, with excellent performance in hydrocarbon-based fuels, lubricants, and many organic solvents. FKM exhibits very low gas permeability and exceptional resistance to aging, oxidation, and ozone. Its mechanical strength remains stable under severe thermal and chemical conditions, offering excellent compression set and long-term sealing reliability.

Particularly suited for applications involving aggressive fluids, such as automotive fuel systems, aerospace components, and chemical processing equipment, FKM maintains elasticity and sealing integrity where other elastomers would fail. This results in a highly fluorinated elastomeric compound with superior chemical resistance, outstanding heat stability, and excellent retention of physical properties across a wide temperature range.

Temperature Range

• Continuous service: –20°C to +200°C
• Intermittent peaks: up to +230°C

Chemical Resistance

Good resistance to:

• Hydrocarbon-based fuels and lubricants, oils, and greases up to 230°C
• Many organic solvents (ketones, esters, alcohols)
• Ozone, aging, and weathering
• Strong acids and bases in moderate concentrations
• High temperature gases and aggressive chemical vapors

Not compatible with:

• Low-molecular-weight amines
• Ketones under high stress
• Certain polar solvents (e.g., strong aldehydes)
