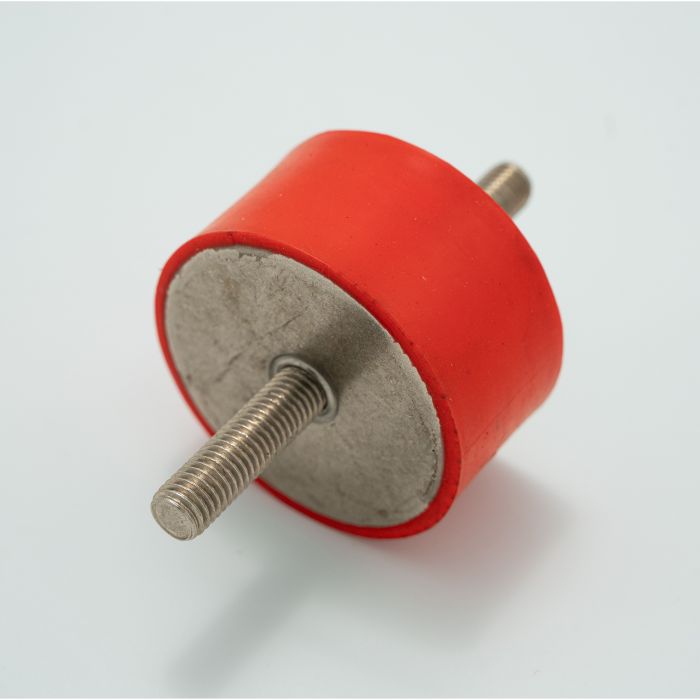

Type A Cylindrical Mount M/M, Ø6mm x H7mm M3x6mm, VMQ 70 ShA Standard Steel

• Mount Type: A
• Diameter: 6mm
• Height: 7mm
• Male Bolt Size: M3
• Male Bolt Length: 6mm
• Material: Silicone (VMQ)
• Hardness: 70 ShA
• Maximum Load Compression: 10.29Kg
• Maximum Shear Load: 1.75Kg
• Metal Type: Standard Steel
• Colour: Red Oxide
• Weight: 0.005Kg

Key Benefits

• Efficient Vibration Isolation: Designed to absorb and dampen vibrations, these mounts protect sensitive components, reducing wear and tear and enhancing overall system performance.
• Compression and Shear Performance: Ideal for use in both compression and shear applications, providing reliable performance in a wide variety of industrial settings.

Applications

Type A Bobbin Mounts are ideal for industries and machinery that require effective vibration isolation. Common applications include:

• Engines
• Compressors
• Motors
• Electronics
• Pumps
• Automotive
• Agricultural Equipment
• Construction Machinery
• HVAC Systems
• Railway
• Electric Motors
• Renewable Energy
• Generators
• Transportation
• Instrumentation
• Medical Equipment
• Laboratory Equipment

These anti-vibration mounts are suitable for compression applications across a wide range of industries, providing reliable vibration isolation for machinery, sensitive components, and critical systems.

Please Note: These mounts are not suitable for failsafe applications.

Additional Information

• Mounting Type: Male/Male thread design suitable for use in a variety of vibration isolation applications.
• Not Suitable for Failsafe applications.
• Compression and Shear Capability: These mounts provide excellent performance in both compression and shear applications.

Designed to meet the vibration isolation needs of a wide range of industries, the Type A Bobbin Mounts provide an effective solution for reducing vibrations and extending the lifespan of machinery and components. Their robust design, flexibility, and durability make them an ideal choice for applications in automotive, agricultural, HVAC.

Silicone compounds possess excellent resistance to temperature extremes. Their retention of properties at high temperatures is superior to other elastic materials. Silicone has relatively poor tensile strength, tear resistance, and abrasion resistance.

Temperature Range

• Up to 230°C
• Down to -50°C

Chemical Resistance

Good resistance to:

• Dry heat
• High-aniline point oils
• Chlorinated DI-phenyls
• Food processing applications
• Excellent ozone resistance
• Water (low temperature only)

Not compatible with:

• Most petroleum fluids
• Ketones (MEK, Acetone)
