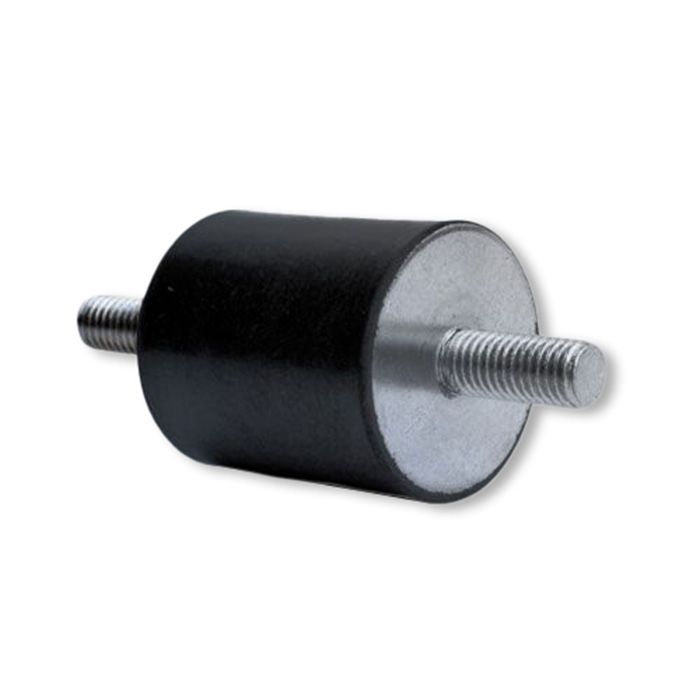

Type A Cylindrical Mount M/M, Ø15mm x H8mm M6x12mm, SBR/NR 75 ShA Standard Steel

• Mount Type: A
• Diameter: 15mm
• Height: 8mm
• Male Bolt Size: M6
• Male Bolt Length: 12mm
• Material: SBR/NR
• Hardness: 75 ShA
• Maximum Load Compression: 20.41Kg
• Maximum Shear Load: 1.84Kg
• Metal Type: Standard Steel
• Colour: Black
• Weight: 0.007Kg

Key Benefits

• Efficient Vibration Isolation: Designed to absorb and dampen vibrations, these mounts protect sensitive components, reducing wear and tear and enhancing overall system performance.
• Compression and Shear Performance: Ideal for use in both compression and shear applications, providing reliable performance in a wide variety of industrial settings.

Applications

Type A Bobbin Mounts are ideal for industries and machinery that require effective vibration isolation. Common applications include:

• Engines
• Compressors
• Motors
• Electronics
• Pumps
• Automotive
• Agricultural Equipment
• Construction Machinery
• HVAC Systems
• Railway
• Electric Motors
• Renewable Energy
• Generators
• Transportation
• Instrumentation
• Medical Equipment
• Laboratory Equipment

These anti-vibration mounts are suitable for compression applications across a wide range of industries, providing reliable vibration isolation for machinery, sensitive components, and critical systems.

Please Note: These mounts are not suitable for failsafe applications.

Additional Information

• Mounting Type: Male/Male thread design suitable for use in a variety of vibration isolation applications.
• Not Suitable for Failsafe applications.
• Compression and Shear Capability: These mounts provide excellent performance in both compression and shear applications.

Designed to meet the vibration isolation needs of a wide range of industries, the Type A Bobbin Mounts provide an effective solution for reducing vibrations and extending the lifespan of machinery and components. Their robust design, flexibility, and durability make them an ideal choice for applications in automotive, agricultural, HVAC.

SBR (Styrene-Butadiene Rubber) is a good general-purpose elastomer with excellent resilience, flexibility, and tear resistance. It offers reliable mechanical strength and abrasion resistance under moderate thermal and chemical conditions. Performs well in applications exposed to repeated stress, impact, and dynamic movement. Resistant to aging, ozone, and weathering when properly compounded, making it suitable for a wide range of industrial, automotive, and mechanical applications.

Temperature Range

• Continuous service: –30°C to +80°C

Chemical Resistance

Good resistance to:

• Moderate resistance to water, alcohols, and mild acids and alkalis
• Good resistance to air, ozone, and weathering
• Some resistance to mineral oils and greases depending on grade

Not compatible with:

• Aromatic and chlorinated hydrocarbons
• Strong acids and bases
• Ketones and polar solvents
