£11.66
£9.72

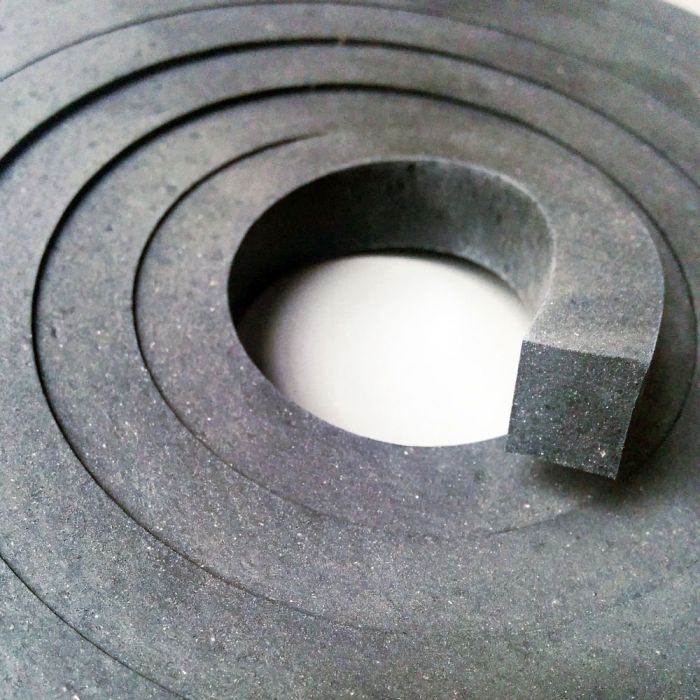

Square Section Nitrile (NBR) Solid Cord – 3.5mm x 3.5mm, 70 ShA x 10m Long
SKU
10R2005140
- Material: Nitrile (NBR)
- Colour: Black
- Width: 3.5mm x Height: 3.5mm
- Hardness: 70 ShA
- Weight: 0.0159kg per metre
- Temperature Range: Min: -30°C Max: 100°C
Nitrile (NBR) Square Section Solid Cord offers exceptional sealing solutions with excellent oil and fuel resistance making it ideal for diverse automotive and industrial applications.
- Material: Nitrile (NBR)
- Colour: Black
- Width: 3.5mm x Height: 3.5mm
- Hardness: 70 ShA
- Weight: 0.159kg per metre
- Temperature Range: Min: -30°C Max: 100°C
Nitrile (NBR) Square Section Solid Cord offers exceptional sealing solutions with excellent oil and fuel resistance making it ideal for diverse automotive and industrial applications.
| Sold by the metre | Yes |
|---|---|
| Tolerance Hardness (±) | 5 |
| Thickness (mm) | 3.5 |
| Width (mm) | 3.5 |
| Tolerance Thickness (±mm) | 0.7 |
| Tolerance Width (±mm) | 0.7 |
| Colour | Black |
| Hardness | 70 ShA |
| Elongation at break (%) | 300 |
| Length (mm) | 10000 |
| Material | Nitrile (NBR) |
| Maximum Temperature (°C) | 100 |
| Minimum Temperature (°C) | -30 |
| Density (g/cm³) | 1.3 |
| Compression Set Testing Parameters | 22hrs @ 100°C |
| Cross Section Type | Square |
| Compression Set (%) | 18 |
| Tensile Strength | 12 MPa |
| Weight (kg) | 0.159 |
*Dimensions can vary, they are typical only.
Write Your Own Review
| Product Datasheet | 10R2005140-Square_Nitrile_NBR_Solid_Cord_70_ShA_3.5mm_Wide_x_10m_long.pdf |
|---|
