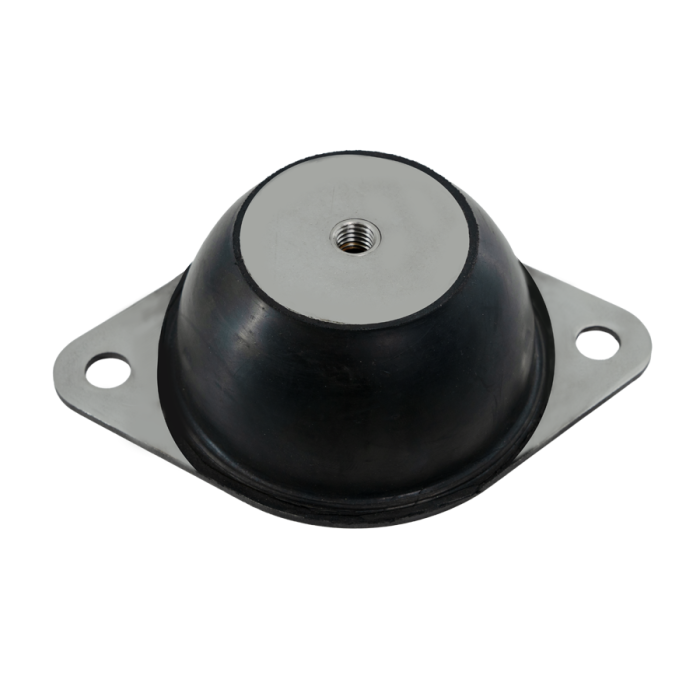

SCM High Deflection Mount, L85mm H25mm M8x9mm, NR 70 ShA Standard Steel

The SCM Anti-Vibration Mount is specifically designed for isolating low-frequency vibrations in various industrial applications. With a high deflection rate, these mounts excel in providing excellent vibration damping and noise isolation, making them perfect for a wide range of sensitive equipment and machinery. The SCM mounts are particularly effective in isolating passive vibrations and are used to minimise noise and vibration transmission across all planes of application. Whether it's for mobile or static equipment, the SCM mount ensures optimal performance and protection against the damaging effects of vibration.

• Mount Type: SCM
• Metal Length: 85mm
• Metal Width: 56mm
• Height: 25mm
• Female Bolt Size: M8
• Female Bolt Depth: 9mm
• Maximum Load Compression: 74Kg
• Maximum Shear Load: 22Kg
• Material: Natural Rubber (NR)
• Colour: Black
• Weight: 0.0625Kg

Key Benefits

• Superior Vibration Isolation: The high deflection rate of SCM mounts ensures excellent isolation of low-frequency vibrations, protecting your machinery and equipment from harmful vibrations and noise.
• Effective for Low-Frequency Applications: Designed to perform optimally in low-frequency vibration environments, these mounts are ideal for sensitive equipment such as electronic instruments, compressors, and pumps.
• High Damping Performance: SCM mounts provide superior damping capabilities, effectively absorbing shocks and reducing the transmission of vibrations to surrounding structures, extending the lifespan of both equipment and the workspace.

Applications

• Electronic Instruments
• Compressors & Cooling Units
• Generators & Pumps
• Pumps
• Vibration Sieves
• Transit Case Mountings

Additional Information

• High Deflection Rate: The high deflection characteristics of SCM mounts make them highly efficient in dampening low-frequency vibrations, providing a reliable solution for noise and vibration isolation.
• Durable Construction: Made from elastomeric materials, these mounts are designed for long-lasting performance in demanding environments, offering a cost-effective and reliable solution for vibration control.
• Easy Installation: SCM mounts are simple to install on both static and mobile equipment, ensuring a hassle-free setup and reduced downtime during machinery installation or maintenance.

Natural rubber (NR) is a versatile and adaptable material characterised by its ability to accept and recover from large deformations. Unlike steel or other metals, it possesses some inherent damping characteristics and can store a larger amount of elastic strain energy per unit volume, making it ideal for use in dampers or as a rubber spring. Natural rubber compounds have a high tensile strength, long fatigue life, and excellent tear resistance.

Natural rubber compounds also exhibit low hysteresis compared with other rubbers. This results in lower heat buildup during repeated deformations, making it an ideal polymer for vibration isolation. Other mechanical properties such as resistance to fatigue, abrasion, tear, and flex are also generally superior in these compounds compared to synthetic elastomers.

NR compounds are not suitable for applications requiring contact with oil, kerosene, diesel, petrol, or solvents like benzene and toluene. These compounds also exhibit poor oxygen and ozone resistance, although this can be somewhat improved by adding antioxidants.

Should you like to discuss your application further, please call us on +44 1420 474123 for more information.

Temperature Range

• Up to 100°C (Intermittent)
• Down to -25°C

Recommended temperature range: -10°C to +100°C

Chemical Resistance

Good resistance to water swell, dilute acids, dilute alkalis, and alcohol.

Not compatible with:

• Mineral oil products (oils, greases, and fuels)
• Steam
• Aliphatic, halogenated, and aromatic hydrocarbons
• Phosphates
• Concentrated acids and alkalis

For detailed chemical compatibility, please see Chemical Compatibility.
