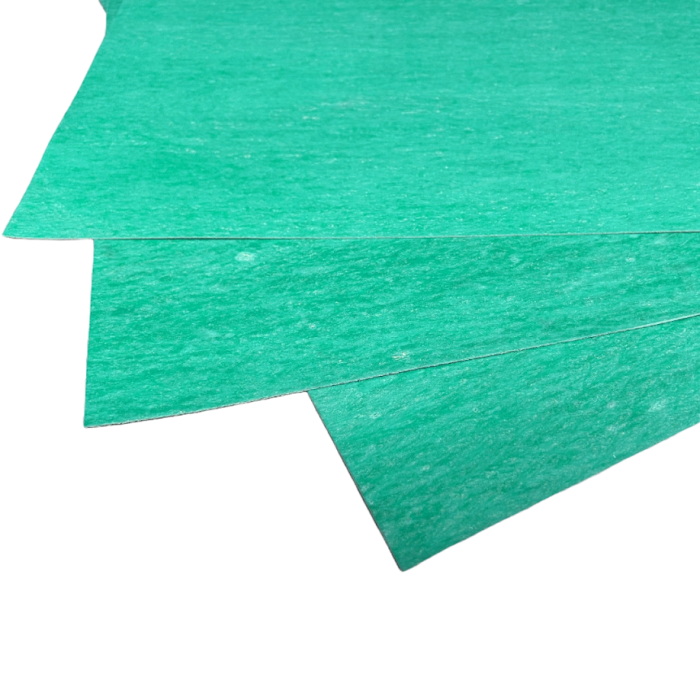

Premium Quality Compressed Fiber 750mm Length X 500mm Width X 3mm Thick

Key Features

CP440 gasket material, expertly engineered with a unique composition of glass and aramid fibres, inorganic fillers, and an NBR binder. This innovative blend results in a product with remarkable mechanical strengths, complemented by its striking greenish-blue colour. The CP440 is designed to meet rigorous industry standards, including ABS, BAM (oxygen), BS 7531 Grade X, DIN EN 16421, DNV GL, DVGW DIN 30653, and EC 1935/2004. These certifications ensure that CP440 is a reliable choice for high-performance applications.

CP440 is available in versatile sheet sizes of 1500 x 1500 mm, 3000 x 1500 mm, and 4500 x 1500 mm, with thicknesses ranging from 0.5 to 3.0 mm. Custom sizes and thicknesses can be accommodated upon request, allowing you to find the perfect fit for your needs. Our strict manufacturing tolerances guarantee dependable performance, making CP440 an excellent solution for various industrial scenarios.

The standard surface finish of CP440 is 4AS, providing a smooth and effective sealing solution. Key technical specifications include a density of 1.8 g/cm³, 7% compressibility, 55% recovery, and a tensile strength of 11 MPa. This product exhibits exceptional resistance to residual stress and maintains a low specific leak rate under diverse operating conditions, ensuring secure and efficient sealing.

With the ability to withstand peak temperatures up to 440°C (824°F) and continuous operation at temperatures of 350°C (662°F), CP440 is ideal for demanding environments. It is also suitable for steam applications up to 250°C (482°F) and boasts an impressive pressure rating of up to 120 bar (1740 psi).

Applications

The CP440 gasket material is perfectly suited for a wide range of industrial applications. Its robust properties make it an excellent choice for gas and steam supply systems, heating systems, and machinery, including pumps and compressors. Whether you're in the automotive, aerospace, or manufacturing sector, CP440 offers the reliability and performance needed for critical applications.

Thanks to its compliance with various industry standards, CP440 is a trusted choice for professionals seeking durability and efficiency in sealing solutions. Invest in CP440 for your next project and experience the benefits of a high-quality gasket material designed to perform under pressure.

Contact Us

For more information, please contact our sales team at 01420 474123.
