£48.90
£40.75

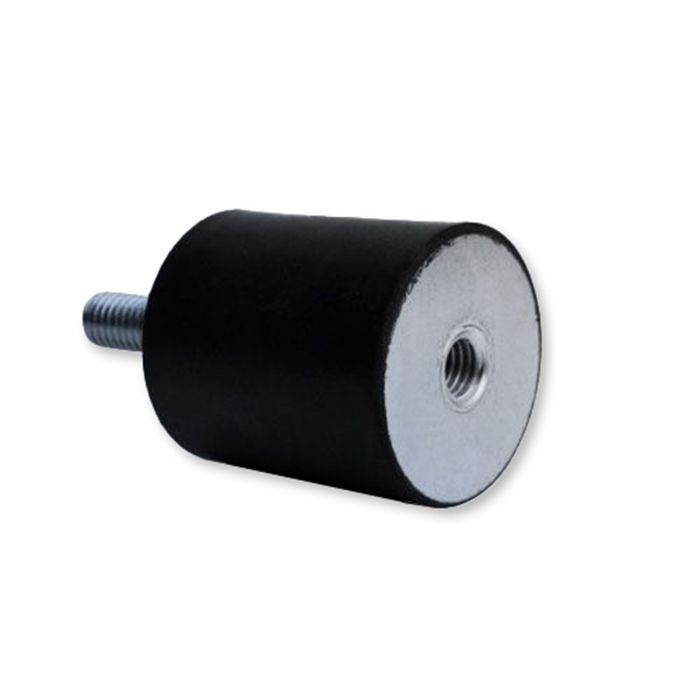

Pack of 8pcs-Type B Cylindrical Mount M/F, Ø10mm H15mm M5x8mm M5x5mm, EPDM 80 ShA Stainless Steel (304 Grade)
SKU
R8B1015M58-EPSS-4
- Mount Type: B(Male/Female)
- Diameter: 10mm
- Height: 15mm
- Male Bolt Size: M5
- Male Bolt Length: 8mm
- Female Bolt Size: M5
- Female Bolt Length: 8mm
- Material: EPDM
- Hardness: 80 ShA
- Maximum Load Compression: 17.73kg
- Maximum Shear Load: 3.0141kg
- Metal Type: Stainless Steel (304 Grade)
- Colour: Black
- Weight: 0.005kg
Type B Bobbin Mounts provide superior vibration isolation for sensitive machinery across various industries. With a Male/Female thread design for easy installation, these mounts excel in both compression and shear applications, minimising noise and extending equipment lifespan. Ideal for automotive, HVAC, and construction use.
- Mount Type: B(Male/Female)
- Diameter: 10mm
- Height: 15mm
- Male Bolt Size: M5
- Male Bolt Length: 8mm
- Female Bolt Size: M5
- Female Bolt Length: 8mm
- Material: EPDM
- Hardness: 80 ShA
- Maximum Load Compression: 17.73kg
- Maximum Shear Load: 3.0141kg
- Metal Type: Stainless Steel (304 Grade)
- Colour: Black
- Weight: 0.04kg
Type B Bobbin Mounts provide superior vibration isolation for sensitive machinery across various industries. With a Male/Female thread design for easy installation, these mounts excel in both compression and shear applications, minimising noise and extending equipment lifespan. Ideal for automotive, HVAC, and construction use.
| Colour | Black |
|---|---|
| Hardness | 80 ShA |
| Metal Type | Stainless Steel (304 Grade) |
| Mount Type | B |
| Elongation at break (%) | 150 |
| Material | EPDM |
| Maximum Temperature (°C) | 120 |
| Minimum Temperature (°C) | -40 |
| Density (g/cm³) | 1.4 |
| Height (mm) | 15 |
| Diameter (mm) | 10 |
| Maximum Load. Compression (kg) | 17.73 |
| Maximum Shear Load (kg) | 3.01 |
| Tensile Strength | 10 MPa |
| Total Height (mm) | 23 |
| Tolerance Hardness (±) | 5 |
| Thread Length/Depth 1 (mm) | 8 |
| Thread Length/Depth 2 (mm) | 8 |
| Thread Size 1 | M5 |
| Weight (kg) | 0.04 |
All rubber tolerances as per ISO 3302 Class M3. Hardness tolerance +/- 5 Shore A and Stiffness tolerance +/-20% from stated values.
