£14.34
£11.95

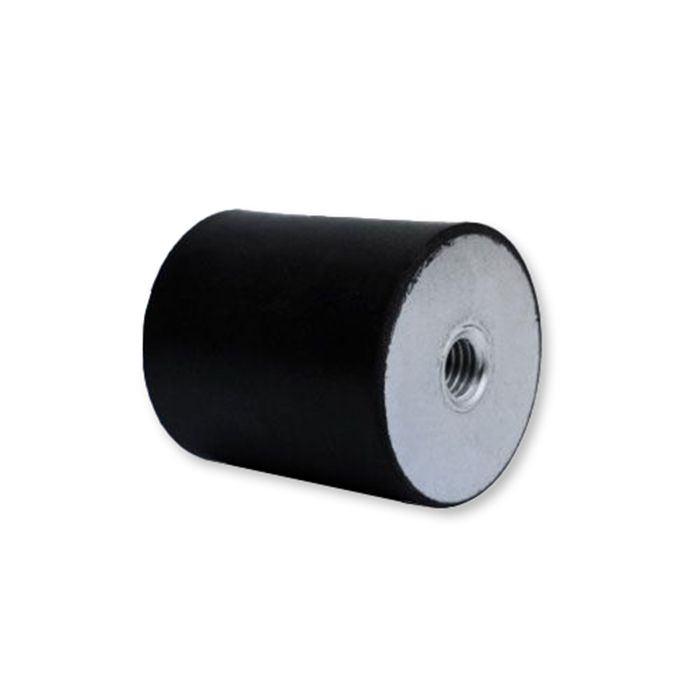

Pack of 4pcs-Type E Cylindrical Mount F, Ø25mm H22mm M8x8mm, NR 60 ShA Standard Steel
SKU
R4E2522M8-2
- Mount Type: E (Female)
- Diameter: 25mm
- Height: 22mm
- Female Bolt Size: M8
- Female Bolt Depth: 8mm
- Material: Natural Rubber (NR)
- Metal Type: Standard Steel
- Colour: Black
- Weight: 0.084Kg
- Hardness: 60 ShA
- Maximum Compression Load: 36.25 Kg
Type E Bobbin Mounts are designed to offer exceptional vibration isolation in a variety of applications. A simple yet effective solution, these mounts are ideal for use in compression applications, offering versatility across multiple industries.
- Mount Type: E (Female)
- Diameter: 25mm
- Height: 22mm
- Female Bolt Size: M8
- Female Bolt Depth: 8mm
- Material: Natural Rubber (NR)
- Metal Type: Standard Steel
- Colour: Black
- Weight: 0.076Kg
- Hardness: 60 ShA
- Maximum Compression Load: 36.25 Kg
Type E Bobbin Mounts are designed to offer exceptional vibration isolation in a variety of applications. A simple yet effective solution, these mounts are ideal for use in compression applications, offering versatility across multiple industries.
| Colour | Black |
|---|---|
| Hardness | 60 ShA |
| Metal Type | Standard Steel |
| Mount Type | E |
| Elongation at break (%) | 400 |
| Material | Natural Rubber (NR) |
| Maximum Temperature (°C) | 70 |
| Minimum Temperature (°C) | -25 |
| Density (g/cm³) | 1.2 |
| Height (mm) | 22 |
| Diameter (mm) | 25 |
| Maximum Load. Compression (kg) | 36.25 |
| Tensile Strength | 14 MPa |
| Tolerance Hardness (±) | 5 |
| Thread Length/Depth 1 (mm) | 8 |
| Thread Length/Depth 2 (mm) | 8 |
| Thread Size 1 | M8 |
| Weight (kg) | 0.076 |
All rubber tolerances as per ISO 3302 Class M3. Hardness tolerance +/- 5 Shore A and Stiffness tolerance +/-20% from stated values.
