£6.50
£5.42

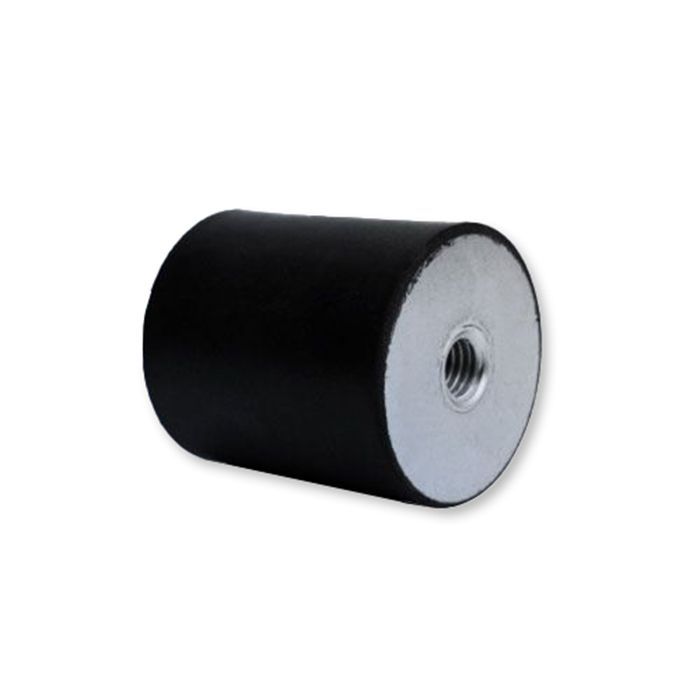

Pack of 2pcs-Type E Cylindrical Mount F, Ø30mm H40mm M6x6mm, NR 45 ShA Standard Steel
SKU
R2E3040M6-1
- Mount Type: E (Female)
- Diameter: 30mm
- Height: 40mm
- Female Bolt Size: M6
- Female Bolt Depth: 6mm
- Material: Natural Rubber (NR)
- Metal Type: Standard Steel
- Colour: Black
- Weight: 0.146Kg
- Hardness: 45 ShA
- Maximum Compression Load: 26.25 Kg
Type E Bobbin Mounts are designed to offer exceptional vibration isolation in a variety of applications. A simple yet effective solution, these mounts are ideal for use in compression applications, offering versatility across multiple industries.
- Mount Type: E (Female)
- Diameter: 30mm
- Height: 40mm
- Female Bolt Size: M6
- Female Bolt Depth: 6mm
- Material: Natural Rubber (NR)
- Metal Type: Standard Steel
- Colour: Black
- Weight: 0.09Kg
- Hardness: 45 ShA
- Maximum Compression Load: 26.25 Kg
Type E Bobbin Mounts are designed to offer exceptional vibration isolation in a variety of applications. A simple yet effective solution, these mounts are ideal for use in compression applications, offering versatility across multiple industries.
| Colour | Black |
|---|---|
| Hardness | 45 ShA |
| Metal Type | Standard Steel |
| Mount Type | E |
| Elongation at break (%) | 450 |
| Material | Natural Rubber (NR) |
| Maximum Temperature (°C) | 70 |
| Minimum Temperature (°C) | -25 |
| Density (g/cm³) | 1.04 |
| Height (mm) | 40 |
| Diameter (mm) | 30 |
| Maximum Load. Compression (kg) | 26.25 |
| Tensile Strength | 10 MPa |
| Tolerance Hardness (±) | 5 |
| Thread Length/Depth 1 (mm) | 6 |
| Thread Length/Depth 2 (mm) | 6 |
| Thread Size 1 | M6 |
| Weight (kg) | 0.09 |
All rubber tolerances as per ISO 3302 Class M3. Hardness tolerance +/- 5 Shore A and Stiffness tolerance +/-20% from stated values.
Write Your Own Review
| Product Datasheet | R2E3040M6-1-Pack_of_2pcs-Type_E_Cylindrical_Mount_F_dia30mm_H40mm_M6x6mm_NR_45_ShA_Standard_Steel.pdf |
|---|
