£9.13
£7.61

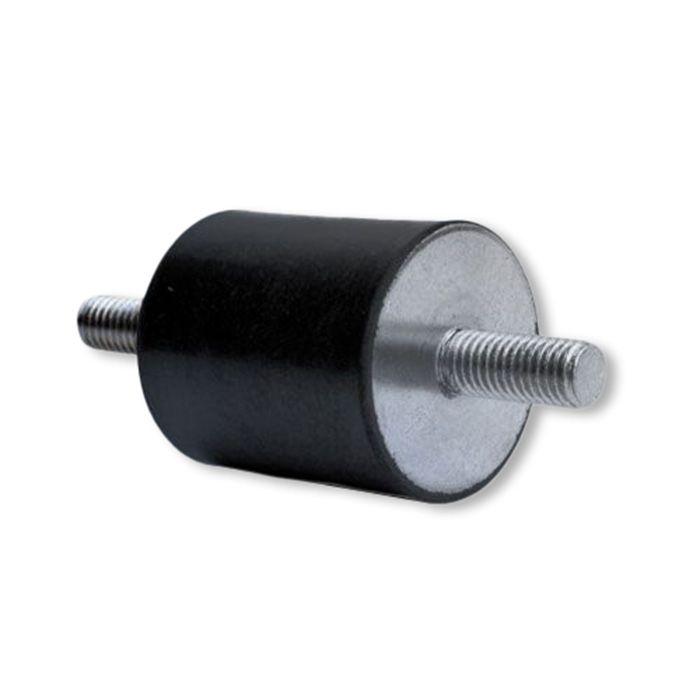

Pack of 2pcs-Type A Cylinder Mount M/M, Ø30mm H30mm M8x25mm, NR 60 ShA Standard Steel
SKU
R2A3030M825-2
- Mount Type: A
- Diameter: 30mm
- Height: 30mm
- Male Bolt Size: M8
- Male Bolt Length: 25mm
- Material: Natural Rubber (NR)
- Hardness: 60 ShA
- Maximum Load Compression: 52.5Kg
- Maximum Shear Load: 6.83Kg
- Metal Type: Standard Steel
- Colour: Black
- Weight: 0.124Kg
Type A Bobbin Mounts provide exceptional vibration isolation, enhancing system performance and extending the lifespan of sensitive components. Suitable for both compression and shear applications, they are ideal for engines, compressors, electronics, and more. Note: Not for failsafe applications.
- Mount Type: A
- Diameter: 30mm
- Height: 30mm
- Male Bolt Size: M8
- Male Bolt Length: 25mm
- Material: Natural Rubber (NR)
- Hardness: 60 ShA
- Maximum Load Compression: 52.5Kg
- Maximum Shear Load: 6.83Kg
- Metal Type: Standard Steel
- Colour: Black
- Weight: 0.102Kg
Type A Bobbin Mounts provide exceptional vibration isolation, enhancing system performance and extending the lifespan of sensitive components. Suitable for both compression and shear applications, they are ideal for engines, compressors, electronics, and more. Note: Not for failsafe applications.
| Colour | Black |
|---|---|
| Hardness | 60 ShA |
| Metal Type | Standard Steel |
| Mount Type | A |
| Elongation at break (%) | 400 |
| Material | Natural Rubber (NR) |
| Maximum Temperature (°C) | 70 |
| Minimum Temperature (°C) | -25 |
| Density (g/cm³) | 1.2 |
| Height (mm) | 30 |
| Diameter (mm) | 30 |
| Maximum Load. Compression (kg) | 52.5 |
| Maximum Shear Load (kg) | 6.83 |
| Tensile Strength | 14 MPa |
| Total Height (mm) | 80 |
| Tolerance Hardness (±) | 5 |
| Thread Length/Depth 1 (mm) | 25 |
| Thread Length/Depth 2 (mm) | 25 |
| Thread Size 1 | M8 |
| Weight (kg) | 0.102 |
All rubber tolerances as per ISO 3302 Class M3. Hardness tolerance +/- 5 Shore A and Stiffness tolerance +/-20% from stated values.
