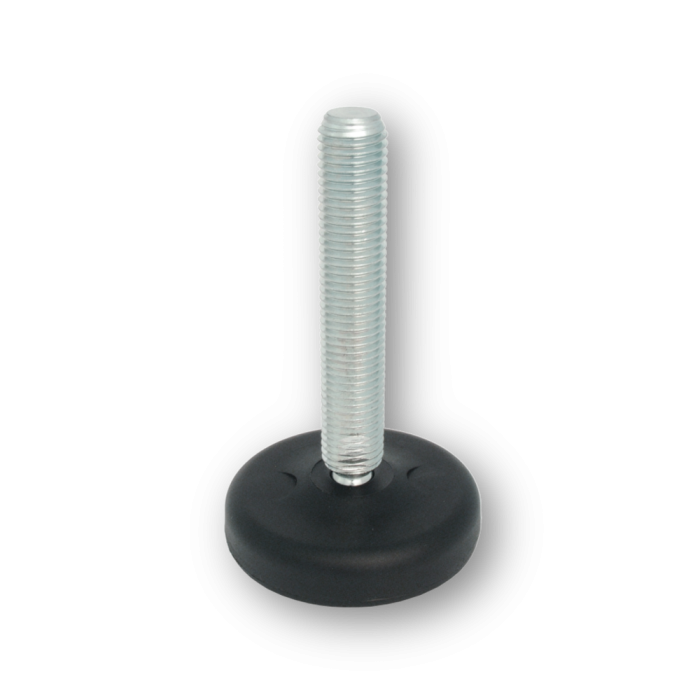

Pack of 2pcs-PF Adjustable Height Polyamide Foot, Ø40mm H16mm M10x75mm, 30° Articulation std. steel
SKU
R2PF4027M1075
- Mount Type: PF
- Diameter: 40mm
- Foot Height: 16mm
- Bolt Size: M10
- Bolt Length: 75mm
- Material: Polyamide (PA)
- Colour: Black
The PF adjustable levelling feet provide a durable and flexible solution for stabilising machinery and furniture on uneven surfaces. They offer Heavy Duty Performance, making them ideal for both industrial and domestic use. They can be installed on uneven surfaces thanks for their 30-Degree Articulation.
- Mount Type: PF
- Diameter: 40mm
- Foot Height: 16mm
- Bolt Size: M10
- Bolt Length: 75mm
- Material: Polyamide (PA)
- Colour: Black
The PF adjustable levelling feet provide a durable and flexible solution for stabilising machinery and furniture on uneven surfaces. They offer Heavy Duty Performance, making them ideal for both industrial and domestic use. They can be installed on uneven surfaces thanks for their 30-Degree Articulation.
| Colour | Black |
|---|---|
| Metal Type | Standard Steel |
| Mount Type | PF |
| Material | Polyamide (PA) |
| Maximum Temperature (°C) | 90 |
| Minimum Temperature (°C) | -20 |
| Height (mm) | 16 |
| Diameter (mm) | 40 |
| Maximum Load. Compression (kg) | 1019 |
| Maximum Shear Load (kg) | 340 |
| Total Height (mm) | 102 |
| Tolerance Hardness (±) | 5 |
| Thread Length/Depth 1 (mm) | 75 |
| Thread Length/Depth 2 (mm) | 75 |
| Thread Size 1 | M10 |
| Weight (kg) | 0.124 |
| Base Height | 16.00 |
All rubber tolerances as per ISO 3302 Class M3. Hardness tolerance +/- 5 Shore A and Stiffness tolerance +/-20% from stated values.
