£16.61
£13.84

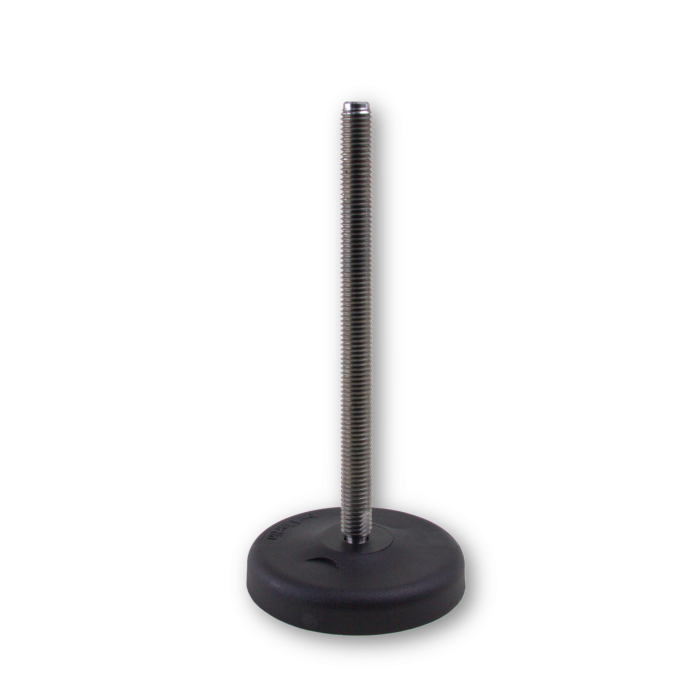

Pack of 2pcs-CVF Adjustable Polyamide Foot, Ø83mm H30mm M10x50mm, 30° Articulation, Std. Steel
SKU
R2CVF8330M1050
- Mount Type: CVF
- Diameter: 83mm
- Foot Height: 18mm
- Bolt Size: M10
- Bolt Length: 50mm
- Material: Polyamide (PA)
- Colour: Black
Ensure stability with CVF adjustable levelling feet, supporting loads up to 2,500 kgs. With 30-degree articulation, these heavy-duty feet adapt easily to uneven surfaces. Ideal for industrial machinery, work benches, and more, they resist vibrations, making them perfect for dynamic environments. Durable black polyamide construction enhances longevity.
- Mount Type: CVF
- Diameter: 83mm
- Foot Height: 18mm
- Bolt Size: M10
- Bolt Length: 50mm
- Material: Polyamide (PA)
- Colour: Black
Ensure stability with CVF adjustable levelling feet, supporting loads up to 2,500 kgs. With 30-degree articulation, these heavy-duty feet adapt easily to uneven surfaces. Ideal for industrial machinery, work benches, and more, they resist vibrations, making them perfect for dynamic environments. Durable black polyamide construction enhances longevity.
| Colour | Black |
|---|---|
| Metal Type | Standard Steel |
| Mount Type | CVF |
| Material | Polyamide (PA) |
| Maximum Temperature (°C) | 90 |
| Minimum Temperature (°C) | -20 |
| Height (mm) | 30 |
| Diameter (mm) | 83 |
| Maximum Load. Compression (kg) | 1019.4 |
| Maximum Shear Load (kg) | 339.8 |
| Total Height (mm) | 80 |
| Tolerance Hardness (±) | 5 |
| Thread Length/Depth 1 (mm) | 50 |
| Thread Length/Depth 2 (mm) | 50 |
| Thread Size 1 | M10 |
| Weight (kg) | 0.192 |
| Foot Height | 18.00 |
| Base Height | 30.00 |
| Hole Centres (mm) | 54 |
All rubber tolerances as per ISO 3302 Class M3. Hardness tolerance +/- 5 Shore A and Stiffness tolerance +/-20% from stated values.
