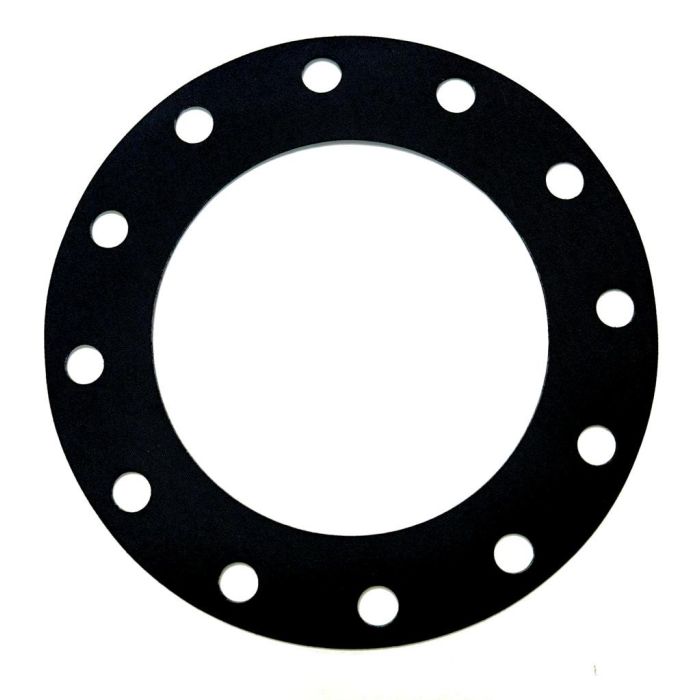

Pack of 2, 200mm NB 70 ShA EPDM WRAS APPROVED Full Face PN16 Gasket

• Outer Diameter: 340mm
• Internal Diameter: 220mm
• Thickness: 3mm
• Bolt Hole Size: 22mm
• Hole Centre Distance: 295mm
• Max Temp: 100°C
• Material: EPDM
• Hardness: 70 ShA
• Colour: Black
• Weight: 1.54Kg

The Full Face 16 PN gaskets are manufactured from WRAS approved EPDM material, making them ideal for potable water applications. Suitable for use in water treatment plants, plumbing systems, and municipal water supplies, these gaskets meet the necessary standards for drinking water safety and performance.

Key Benefits

• Produced using a EPDM WRAS approved gasket material
• Approved for use in potable water applications up to 23°C
• Complies with WRAS requirements for drinking water applications
• Typically used in water pipe applications
• Cloth impression on both sides of gasket

Applications

• Potable Water Supply Systems
• Municipal Water Infrastructure
• Plumbing Systems
• Low-Temperature Water Applications
• Pipeline Flange Sealing
• Water Filtration and Purification Systems
• WRAS-Compliant Installations

Additional Information

Polymax offers a custom gasket making service, with the capability to produce gaskets from a wide range of materials, from simple to complex shapes. For more information call our team on 01420 474 123.
