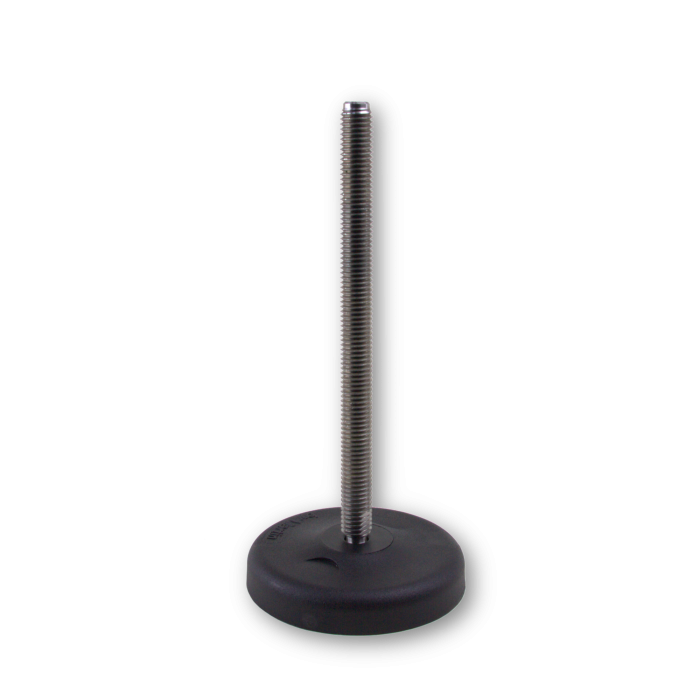

Pack of 2 - CVF Adjustable Polyamide Foot, Ø83mm H30mm M12x100mm, 30° Articulation, SS (304 Grade)
SKU
R2CVF8330M16100-A2
- Mount Type: CVF
- Diameter: 83mm
- Foot Height: 18mm
- Bolt Size: M12
- Bolt Length: 100mm
- Material: Polyamide (PA)
- Colour: Black
Ensure stability with CVF adjustable levelling feet, supporting loads up to 2,500 kgs. With 30-degree articulation, these heavy-duty feet adapt easily to uneven surfaces. Ideal for industrial machinery, work benches, and more, they resist vibrations, making them perfect for dynamic environments. Durable black polyamide construction enhances longevity.
- Mount Type: CVF
- Diameter: 83mm
- Foot Height: 18mm
- Bolt Size: M12
- Bolt Length: 100mm
- Material: Polyamide (PA)
- Colour: Black
Ensure stability with CVF adjustable levelling feet, supporting loads up to 2,500 kgs. With 30-degree articulation, these heavy-duty feet adapt easily to uneven surfaces. Ideal for industrial machinery, work benches, and more, they resist vibrations, making them perfect for dynamic environments. Durable black polyamide construction enhances longevity.
| Colour | Black |
|---|---|
| Metal Type | Stainless Steel (304 Grade) |
| Mount Type | CVF |
| Material | Polyamide (PA) |
| Maximum Temperature (°C) | 90 |
| Minimum Temperature (°C) | -20 |
| Height (mm) | 30 |
| Diameter (mm) | 83 |
| Maximum Load. Compression (kg) | 1631 |
| Maximum Shear Load (kg) | 543.7 |
| Total Height (mm) | 130 |
| Tolerance Hardness (±) | 5 |
| Thread Length/Depth 1 (mm) | 100 |
| Thread Length/Depth 2 (mm) | 100 |
| Thread Size 1 | M12 |
| Weight (kg) | 0.426 |
| Foot Height | 18.00 |
| Base Height | 30.00 |
| Hole Centres (mm) | 54 |
| Number of Fixing Holes | 2 |
All rubber tolerances as per ISO 3302 Class M3. Hardness tolerance +/- 5 Shore A and Stiffness tolerance +/-20% from stated values.
