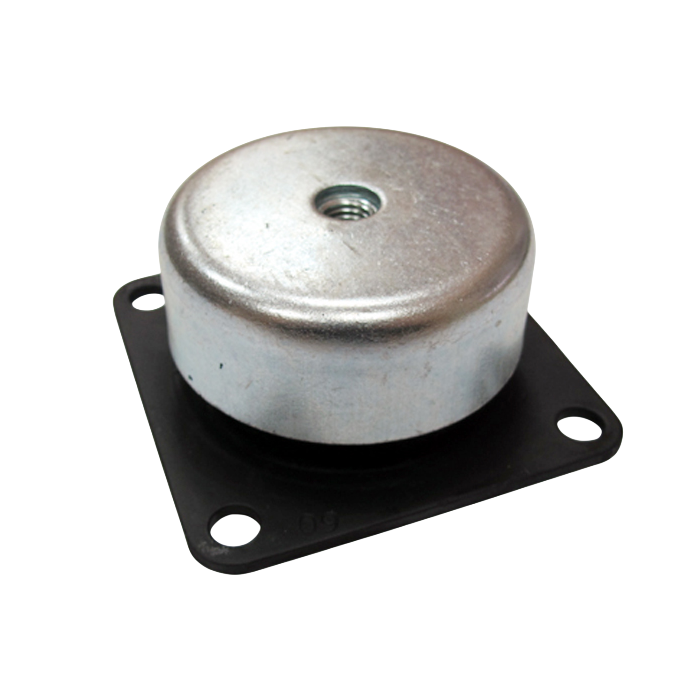

KPS Elastic Mount, Ø74mm H42mm, NR 75 ShA Standard Steel
SKU
KPS7442-3.5
- Mount Type: KPS
- Diameter: 74mm
- Height: 42mm
- Female Bolt Size: M10
- Material: Natural Rubber (NR)
- Hardness: 75 ShA
- Colour: Black
- Weight: 0.57kg
KPS Anti-Vibration Mounts deliver exceptional vibration isolation and shock load damping, protecting sensitive equipment in extreme conditions. Their compact design allows for easy installation in tight spaces, with oil and fuel resistance for long-lasting durability.
We're sorry, an error has occurred while generating this content.
| Colour | Black |
|---|---|
| Hardness | 75 ShA |
| Metal Type | Standard Steel |
| Mount Type | KPS |
| Elongation at break (%) | 250 |
| Material | Natural Rubber (NR) |
| Maximum Temperature (°C) | 70 |
| Minimum Temperature (°C) | -25 |
| Density (g/cm³) | 1.25 |
| Height (mm) | 42 |
| Diameter (mm) | 74 |
| Maximum Load. Compression (kg) | 260 |
| Tensile Strength | 14 MPa |
| Tolerance Hardness (±) | 5 |
| Thread Size 1 | M10 |
| Width (mm) | 90 |
| Weight (kg) | 0.568 |
| Metal Width | 90 |
| Length (mm) | 90 |
| Hole Centres (mm) | 72 |
| Number of Fixing Holes | 4 |
All rubber tolerances as per ISO 3302 Class M3. Hardness tolerance +/- 5 Shore A and Stiffness tolerance +/-20% from stated values.
Write Your Own Review
| Product Datasheet | KPS7442-3.5-KPS_Elastic_Mount_dia74mm_H42mm_NR_75_ShA_Standard_Steel.pdf |
|---|
