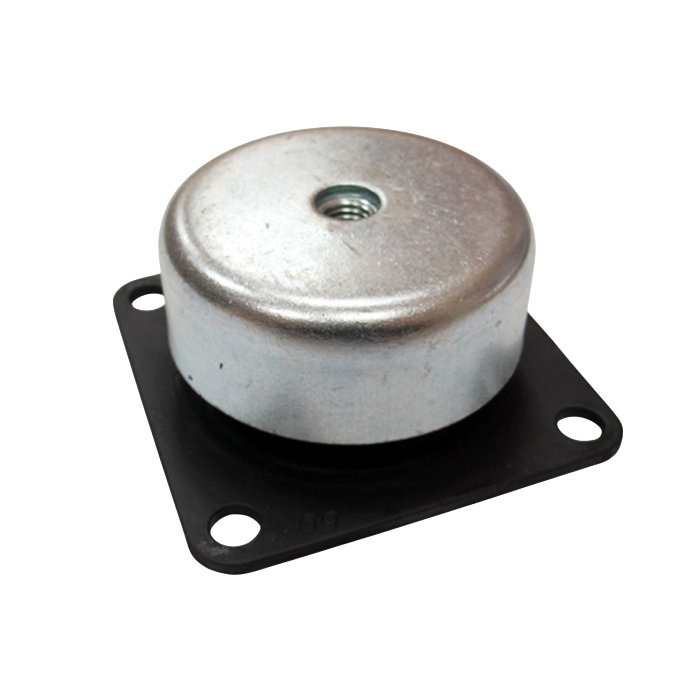

KPS Elastic Mount, Ø50mm H30mm, NR 75 ShA Standard Steel

The KPS Anti-Vibration Mounts are specially designed to provide superior vibration isolation and shock load damping for electronic equipment, military and emergency service vehicles, and more. These high-performance mounts ensure that sensitive equipment remains protected from harmful vibrations, even in the most demanding environments. KPS mounts offer outstanding resilience across a wide temperature range. Their compact design, with easy installation and strong flange support, makes them ideal for use in restricted spaces.

• Mount Type: KPS
• Diameter: 50mm
• Height: 30mm
• Female Bolt Size: M8
• Material: Natural Rubber (NR)
• Hardness: 75 ShA
• Colour: Black
• Weight: 0.101kg

Key Benefits

• Superior Vibration Isolation: The KPS mounts effectively isolate equipment from vibrations, reducing the impact of shock loads in all directions, which helps extend the lifespan of your machinery and electronics.
• Durable and Long-lasting: Made with high tensile silicone compound, these mounts operate effectively within a wide temperature range of -25°C to 70°C, providing exceptional performance in extreme conditions.
• Oil and Fuel Resistance: The top metal cover protects the rubber element from contamination by oil, fuel, and other harsh substances, ensuring long-term durability even in challenging environments.
• Easy Installation: The low height design of the KPS mount allows for easy installation in restricted spaces, making it the ideal choice for applications where space is limited.

Applications

• Electronic Equipment Rack Systems
• Air Conditioning Units
• Light Compressors and Pumps
• Vehicle Tool Compartments
• Small Electrical Motors
• Fans

Additional Information

• High-Performance Materials: The KPS mounts are made from a high tensile silicone compound, ensuring that they can withstand demanding environments and perform effectively across a wide range of temperatures.
• Oil and Fuel Protection: The top metal cover acts as a protective shield, preventing oil, fuel, and other contaminants from degrading the rubber element, ensuring reliable performance even in challenging conditions.
• Multiple Mounting Options: Available with M8 fixing holes on the base for strong flange support, and an M10 top cover fixing, with an M12 fixing available on request, offering flexibility for various installation needs.
• Compact Design: The low-profile design of the KPS mount allows for easy installation in areas where space is restricted, making it a versatile choice for various applications.
