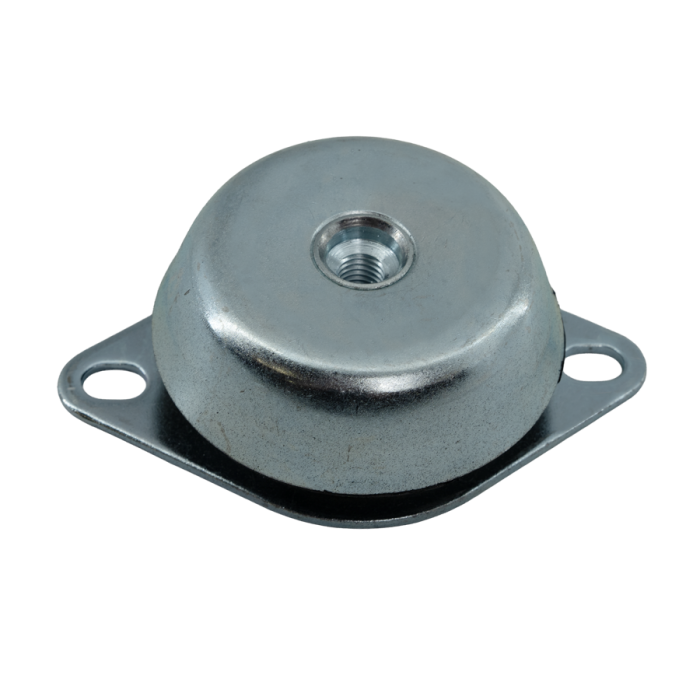

KPR Captive Flange Mount, Ø77 H30 M10, Natural Rubber (NR) 258kg Compression 330.24kg Shear

KPR Mount is a high-performance machine foot mount ideal for heavy-duty machinery. It offers exceptional vibration isolation, a fail-safe design for added safety, and high load capacity. Its compact design ensures easy installation, making it perfect for generators, compressors, and agricultural equipment.

• Mount Type: KPR
• Diameter: 77mm
• Height: 30mm
• Female Bolt Size: M10
• Maximum Load Compression: 258kg
• Maximum Shear Load: 330.24kg
• Material: Natural Rubber (NR)
• Colour: Black
• Weight: 0.3kg

Key Benefits

• Exceptional Vibration Isolation: The KPR Mount provides outstanding vibration damping, effectively isolating equipment from vibrations in both static and dynamic applications.
• Fail-Safe Design: Equipped with a fail-safe system, the KPR Mount ensures maximum safety by preventing mount failure under high-stress conditions, making it an ideal solution for critical applications.
• High Load Capacity: The KPR Mount is engineered to absorb high axial stresses while maintaining excellent stability and performance, even under heavy loads.
• High Deflection for Optimal Insulation: Offering high deflection, this mount delivers superior performance, particularly for generators, engines, and systems operating at low frequencies.
• Compact Design: With its compact design, the KPR Mount is easy to install and is suitable for a wide range of machinery and applications where space is a consideration.

Applications

• Generators
• Motor and Machinery Supports
• Marine
• Railways
• Compressors
• Centrifugal Fans
• Excavators and Heavy Machinery
• Agricultural Equipment
• Electronic Control Panels

Additional Information

• Efficient Axial Stress Absorption: The mount absorbs axial stresses efficiently while limiting side deflections, ensuring that equipment remains stable even under heavy load conditions.
• Easy Installation: Designed for easy installation, the KPR Mount simplifies the setup process while providing reliable vibration isolation in a wide range of applications.

Natural rubber (NR) is a versatile and adaptable material characterised by its ability to accept and recover from large deformations. Unlike steel or other metals, it possesses some inherent damping characteristics and can store a larger amount of elastic strain energy per unit volume, making it ideal for use in dampers or as a rubber spring. Natural rubber compounds have a high tensile strength, long fatigue life, and excellent tear resistance.

Natural rubber compounds also exhibit low hysteresis compared with other rubbers. This results in lower heat buildup during repeated deformations, making it an ideal polymer for vibration isolation. Other mechanical properties such as resistance to fatigue, abrasion, tear, and flex are also generally superior in these compounds compared to synthetic elastomers.

NR compounds are not suitable for applications requiring contact with oil, kerosene, diesel, petrol, or solvents like benzene and toluene. These compounds also exhibit poor oxygen and ozone resistance, although this can be somewhat improved by adding antioxidants.

Should you like to discuss your application further, please call us on +44 1420 474123 for more information.

Temperature Range

• Up to 100°C (Intermittent)
• Down to -25°C

Recommended temperature range: -10°C to +100°C

Chemical Resistance

Good resistance to water swell, dilute acids, dilute alkalis, and alcohol.

Not compatible with:

• Mineral oil products (oils, greases, and fuels)
• Steam
• Aliphatic, halogenated, and aromatic hydrocarbons
• Phosphates
• Concentrated acids and alkalis

For detailed chemical compatibility, please see Chemical Compatibility.
