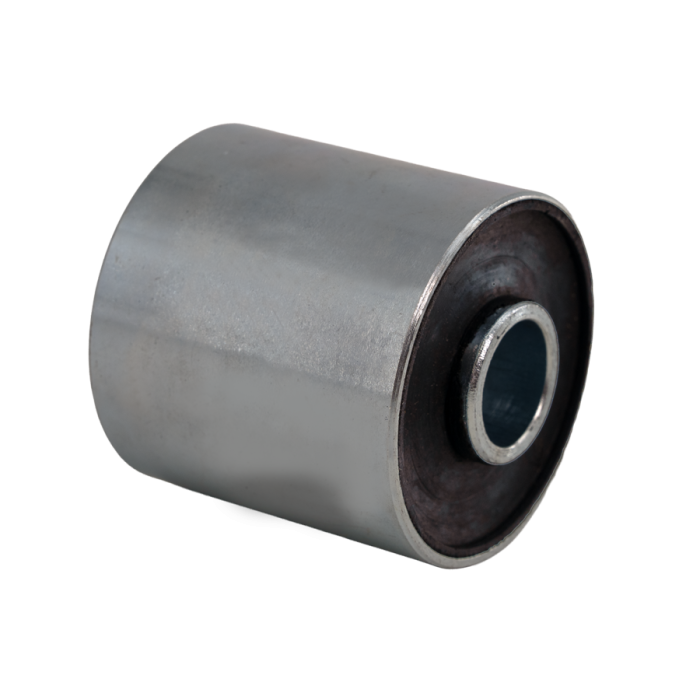

KPCB Fully Bonded Bush, OD56mm ID20mm IL110 OL105mm, NR 65 ShA Standard Steel

The KPCB Fully Bonded Bush is engineered to provide exceptional vibration isolation, particularly in environments that demand both high load-bearing capacity and effective attenuation of high-frequency vibrations. Designed with two concentric metal sleeves and rubber securely bonded between them, this advanced vibration isolator is ideal for a wide range of applications. The rubber undergoes a special pre-loading process, ensuring high resistance to stress and providing long-term durability in both static and mobile equipment.

• Mount Type: KPCB
• Outer Diameter: 56mm
• Internal Diameter: 20mm
• Outer Length: 105mm
• Internal Length: 110mm
• Material: Nitrile (NBR)
• Colour: Black
• Weight: 0.8053Kg

Key Benefits

• Effective High-Frequency Vibration Elimination: The KPCB bush is designed to effectively dampen high-frequency vibrations, making it an ideal solution for applications where noise and vibration control is crucial.
• Support for High Loads: These bushes are capable of supporting heavy loads during operation, ensuring that your equipment remains stable and functional even under demanding conditions.
• Elastic Deformation for Superior Vibration Isolation: The rubber’s elastic deformation under external forces allows it to absorb and dissipate energy, protecting machinery and reducing the impact of vibrations on sensitive components.
• Durable and Long-lasting: With the rubber securely bonded to both the inner and outer metal tubes, the KPCB bush provides long-lasting performance, even in high-stress environments.
• Enhanced Stress Resistance: The special pre-loading process used during manufacturing ensures that the KPCB bush maintains high resistance to operational stresses, enhancing its longevity and reliability in various applications.

Applications

• Automotive
• Agricultural Equipment
• Construction Equipment:
• HVAC Systems
• Compressors:
• Railway Systems
• Electric Motors
• Renewable Energy Equipment
• Generators
• Medical and Laboratory Equipment:

Additional Information

• Improved Equipment Longevity: By effectively reducing vibrations, the KPCB bush helps extend the lifespan of machinery and equipment, lowering maintenance costs and preventing premature wear.
• Easy Installation: The concentric design allows for easy integration into existing systems, making it a straightforward solution for both new builds and retrofitting applications.
• Cost-effective Vibration Isolation: Offering an affordable solution without compromising on performance, the KPCB bush provides exceptional value for businesses seeking to reduce vibration-related issues in their equipment.

Nitrile Rubber (NBR) compounds offer excellent resistance to petroleum-based oils, fuels, and greases, along with good performance in aliphatic and aromatic hydrocarbons. They are resistant to water, certain hydraulic fluids, and mild acids and alkalis. Nitrile also provides good abrasion and tear resistance, a low compression set, and reliable sealing performance over a wide temperature range.

Temperature Range

• Up to 100°C (Intermittent)
• Down to -25°C
• Recommended temperature range: -30°C to +100°C

Chemical Resistance

Good resistance to:

• Petroleum-based oils, fuels, and greases
• Hydrocarbon-based fuels and hydraulic fluids (mineral oil and some phosphate ester types)
• Mild acids and alkalis
• Water and steam up to 100°C
• Ozone and weathering

Not compatible with:

• Strong oxidizing agents
• Ketones
• Esters
• Chlorinated hydrocarbons
