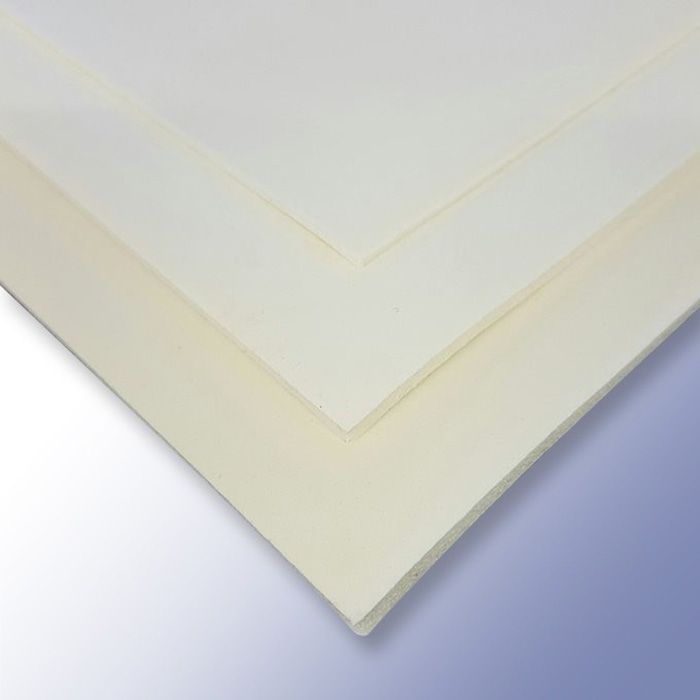

High Temp 270°C Silicone Sponge Sheet - 1m Wide x 5mm Thick, White
- Width: 1m x Thickness: 5mm x Length: 5m
- Material: Silicone (VMQ)
- Colour: White
- Density: 0.25g/cm³
- Weight: 1.25kg per metre
- Temperature Range: Min: -60°C Max: 270°C
SILOCELL High Temperature Silicone Sponge Sheet offers exceptional temperature resistance making it ideal ideal for seals gaskets and insulation This sheet is flame retardant.
High Temp 270°C Silicone Sponge Sheet 1m Wide x 1.5mm Thick White 5 ShA
SILOCELL High Temperature Silicone Sponge Sheet is designed to perform in extreme temperatures making it the ideal choice for demanding applications where both flexibility and temperature resistance are required. With a medium density this silicone sponge offers excellent compressibility and conformability making it perfect for sealing gaps and providing effective insulation in high-temperature environments. The material is available in an off-white colour and comes with self-adhesive backing for added convenience in various applications.
- Width: 1m x Thickness: 1.5mm x Length: 5m
- Material: Silicone (VMQ)
- Colour: White
- Density: 0.25g/cm³
- Weight: 1.25kg per metre
- Temperature Range: Min: -60°C Max: 270°C
Key Benefits
- Exceptional Temperature Resistance: This silicone sponge withstands continuous temperatures ranging from -60°C to +270°C and intermittent temperatures up to 300°C ensuring reliability in high-heat environments.
- Flame Retardant: Meets stringent FAR 25/JAR25/CS 25 Appendix F Part 1 (a)(1)(iv) and (a)(1)(v) horizontal flammability standards adding an extra layer of safety in critical applications.
- Soft and Pliable: Offers excellent compressibility and conformability making it ideal for gaskets seals and thermal expansion joints that require a tight and flexible fit.
Applications
- High-Temperature Seals and Gaskets
- Heat Insulation
- Thermal Expansion Joints
- Appliance Gaskets
- Automotive Applications
- Industrial Equipment
- Construction Applications
Additional Information
Polymax High Temperature Silicone Sponge Sheet is designed for industries and applications where high-performance sealing insulation and flame resistance are paramount. With its exceptional compressibility and conformability it effectively seals and insulates in demanding environments.
| Material | Silicone (VMQ) |
|---|---|
| Density (g/cm³) | 0.25 |
| Width (mm) | 1000 |
| Length (mm) | 1000 |
| Roll Length (m) | 5 |
| Thickness (mm) | 5 |
| Tolerance Thickness (±mm) | 0.5 |
| Tolerance Width (±mm) | 30 |
| Hardness | 5 ShA |
| Colour | White |
| Maximum Temperature (°C) | 270 |
| Minimum Temperature (°C) | -60 |
| Tensile Strength | 0.6 MPa |
| Elongation at break (%) | 145 |
| Compression Set (%) | 0.6 |
| Compression Set Testing Parameters | 22h @ 70°C |
| Sold by the metre | Yes |
| Weight (kg) | 1.25 |
| Form | Roll |
| Product Datasheet | 3044245-High_Temp_270C_Silicone_Sponge_Sheet_1m_Wide_x_5mm_Thick_White_5_ShA.pdf |
|---|
