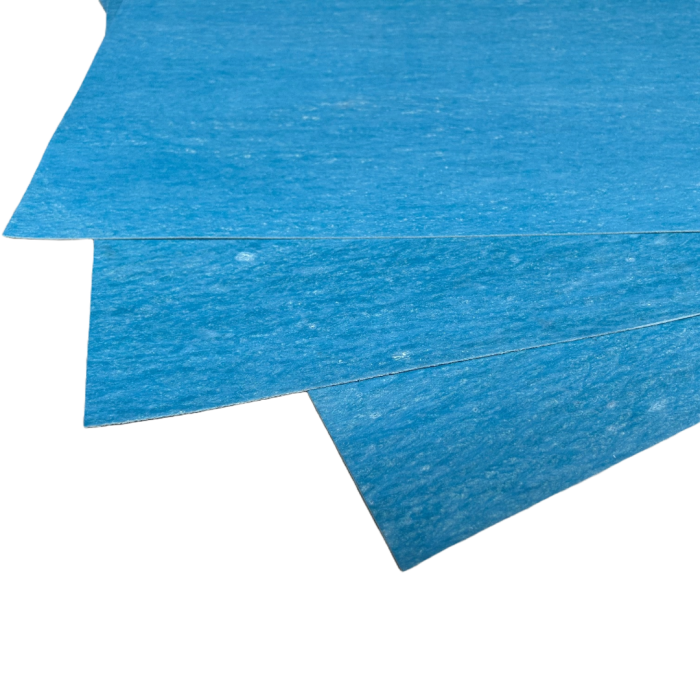

High Quality General Purpose Compressed Fiber 750mm Length X 500mm Width X 3mm Thick

• Length: 750mm x Width: 500mm x Thickness: 3mm
• Material: Compressed Fibre
• Density: 1.7
• Colour:Blue
• Weight: 1.92kg
• Temperature Range: Max: 350°C

Key Features

Polymax CP350 is a premium-grade gasket material, specifically engineered for high-performance sealing applications. It is composed of durable aramid fibres, inorganic fillers, and a robust NBR binder, delivering exceptional sealing capabilities across various industries. The material is easily identifiable by its distinctive blue colour, which not only adds a visual appeal but also signifies its high-quality construction.

This versatile gasket material meets a broad spectrum of industry standards, including ABS, AGA AS 4623, BAM (oxygen), DNV GL, DVGW DIN 30653, and EC 1935/2004. These certifications ensure that Polymax CP350 is a reliable choice for critical applications where safety and performance are paramount.

Polymax CP350 is available in multiple thicknesses, tailored to meet diverse application requirements. Its finely controlled tolerances guarantee consistent performance and reliability, making it an indispensable asset in any sealing task.

With impressive physical properties, Polymax CP350 boasts excellent density, compressibility, and recovery rates. Its tensile strength of 12 MPa, combined with superior resistance to residual stress and a low specific leak rate, ensures effective sealing in demanding environments. Additionally, it demonstrates good dimensional stability and creep relaxation, particularly under elevated temperatures.

Applications

Polymax CP350 is engineered to excel in a variety of operational conditions. It can withstand peak temperatures of up to 350°C (662°F) and continuous temperatures up to 250°C (482°F), making it an ideal choice for high-temperature applications. Its suitability for steam applications up to 200°C (392°F) further enhances its versatility.

With a maximum pressure rating of 100 bar (1450 psi), Polymax CP350 is particularly well-suited for sealing in gas and potable water supply systems. Its robust construction and excellent sealing properties make it a go-to solution for a wide range of general-purpose sealing tasks, ensuring leak-free performance in both industrial and commercial settings.

Choose Polymax CP350 for your sealing needs and experience unmatched reliability and performance in your applications.

Additional Details

• Also available self-adhesive backing for easy installation.
• Full customisation service: tailored cutting options to create the shapes or gaskets for your applications.
