£675.90
£563.25

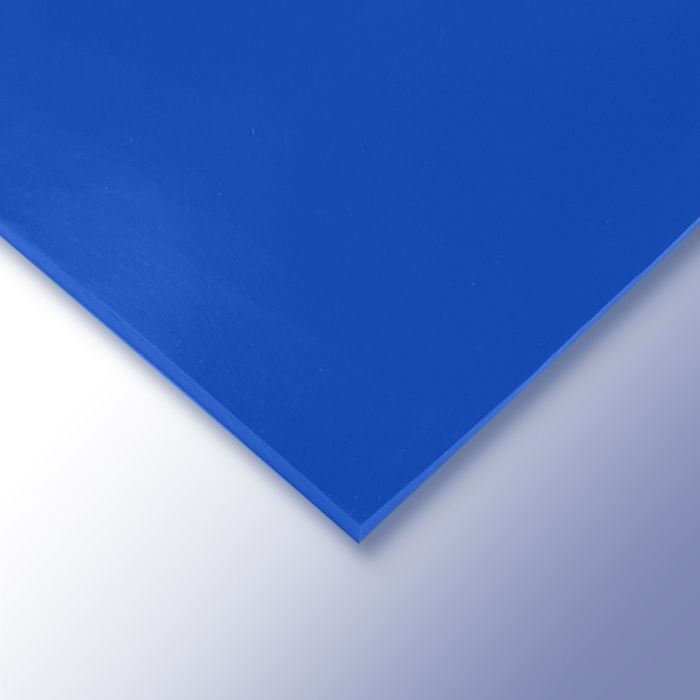

Fluorosilicone Solid Silicone Sheet - 915mm Wide x 0.8mm Thick, Blue, 60 ShA
SKU
3043950
- Width: 915mm x Length: 1m ((up to 36.6m)) x Thickness: 0.8mm
- Material: Fluorosilicone (FVMQ)
- Hardness: 60 ShA
- Colour: Blue
- Density: 1.5g/cm³
- Weight: 1.10kg per Linear Metre
- Temperature Range: Min: -55°C, Max: 210°C
Fluorosilicone solid sheeting provides excellent chemical resistance to fuels, oils, and harsh chemicals, along with high-temperature performance. Ideal for automotive, aerospace, and industrial applications, this material ensures reliability in extreme conditions.
Fluorosilicone Solid Silicone Sheet - 915mm Wide x 0.8mm Thick, Blue, 60 ShA
Fluorosilicone solid sheeting offers the same excellent mechanical properties as traditional silicone but with greatly enhanced resistance to fuel, mineral oils, and other harsh chemicals. Designed for applications where durability, high-temperature performance, and chemical resistance are paramount.
- Width: 915mm x Length: 1m ((up to 36.6m)) x Thickness: 0.8mm
- Material: Fluorosilicone (FVMQ)
- Hardness: 60 ShA
- Colour: Blue
- Density: 1.5g/cm³
- Weight: 1.10kg per Linear Metre
- Temperature Range: Min: -55°C, Max: 210°C
Key Benefits
- Enhanced Chemical Resistance: Fluorinated silicone provides superior resistance to fuels, mineral oils, and a range of harsh chemicals, making it suitable for the most demanding applications.
- High-Temperature Performance: This fluorosilicone sheeting performs exceptionally well under extreme temperatures, ensuring reliability in high-heat environments.
- Oil and Fuel Resistance: Specifically formulated to resist oils, fuels, and mineral oils, this material is ideal for automotive, aerospace, and industrial applications that involve fuel exposure.
Applications
- Automotive Industry
- Aerospace Applications
- Oil and Gas Industry
- Chemical Processing
- Medical Devices
- Electrical Insulation
- Food Processing Equipment
- Textile Manufacturing
Additional Information
Polymax offers a custom fabrication service to create gaskets, seals, or strips tailored to your needs.
| Material | Fluorosilicone (FVMQ) |
|---|---|
| Density (g/cm³) | 1.5 |
| Width (mm) | 915 |
| Length (mm) | 1000 |
| Roll Length (m) | 36.6 |
| Thickness (mm) | 0.8 |
| Tolerance Thickness (±mm) | 0.25 |
| Tolerance Width (±mm) | 27.45 |
| Hardness | 60 ShA |
| Colour | Blue |
| Maximum Temperature (°C) | 210 |
| Minimum Temperature (°C) | -55 |
| Tensile Strength | 9 MPa |
| Elongation at break (%) | 200 |
| Compression Set (%) | 20 |
| Compression Set Testing Parameters | 22h @ 25°C |
| Weight (kg) | 1.098 |
| Form | Roll |
*Dimensions can vary, they are typical only. Stated temperature range and approvals do not apply to self adhesive backing.
Write Your Own Review
| Product Datasheet | 3043950-Fluorosilicone_Solid_Silicone_Sheet_915mm_Wide_x_0.8mm_Thick_Blue_60_ShA.pdf |
|---|
