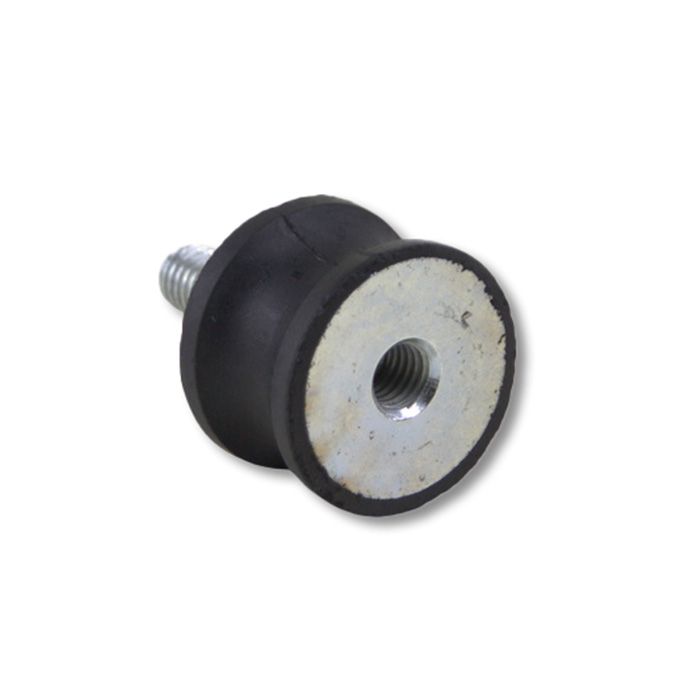

BD Waisted Mount (M/F), Ø10mm Height 10mm M4x10mm M4x4mm, NR 60 ShA Standard Steel

BD Waisted Bobbin Mounts provide exceptional vibration isolation with their unique waisted design, ideal for reducing lateral vibration. Perfect for various industries, these mounts protect sensitive equipment from wear and noise. Easy to install and durable, they ensure reliable performance in high-stress environments.

• Mount Type: BD (Male/Female)
• Diameter: 10mm
• Height: 10mm
• Male Bolt Size: M4
• Male Bolt Length: 10mm
• Female Bolt Size: M4
• Female Bolt Depth: 4mm
• Maximum Load Compression: 3.2Kg
• Maximum Shear Load: 1.1Kg
• Material: Natural Rubber (NR)
• Colour: Black
• Weight: 0.002Kg

Key Benefits

• Enhanced Lateral Movement: The waisted design offers improved lateral deflection, allowing the mount to absorb vibrations efficiently from all angles. This makes it especially suitable for applications where lateral forces are a concern.
• High Vibration Isolation: These mounts effectively isolate vibrations, reducing noise and minimising wear on sensitive equipment, ensuring smoother operation and improved performance.
• Increased Durability: The BD Bobbin Mounts are designed to withstand both dynamic and static loads, offering a long lifespan even in high-stress environments, making them ideal for industrial and commercial applications.
• Versatile Applications: Suitable for various applications in multiple sectors, these mounts are perfect for use where a male/female thread is required, ensuring secure installation in diverse setups.
• Cost-Effective: These mounts provide an affordable solution without compromising on performance, offering value for money while maintaining excellent vibration isolation and load support.

Applications

• Lightweight and Portable Equipment:
• Vibratory Feeders
• Electric Motors
• Control Panels
• Measuring Apparatus

Additional Information

• Easy to Install: Designed with male/female thread configurations, these mounts are easy to install in a wide range of applications, making them versatile and user-friendly.
• Durable and Reliable: Built to last, these mounts offer a long service life, even under challenging conditions, ensuring reliable vibration isolation for years to come.

Natural rubber (NR) is a versatile and adaptable material characterised by its ability to accept and recover from large deformations. Unlike steel or other metals, it possesses some inherent damping characteristics and can store a larger amount of elastic strain energy per unit volume, making it ideal for use in dampers or as a rubber spring. Natural rubber compounds have a high tensile strength, long fatigue life, and excellent tear resistance.

Natural rubber compounds also exhibit low hysteresis compared with other rubbers. This results in lower heat buildup during repeated deformations, making it an ideal polymer for vibration isolation. Other mechanical properties such as resistance to fatigue, abrasion, tear, and flex are also generally superior in these compounds compared to synthetic elastomers.

NR compounds are not suitable for applications requiring contact with oil, kerosene, diesel, petrol, or solvents like benzene and toluene. These compounds also exhibit poor oxygen and ozone resistance, although this can be somewhat improved by adding antioxidants.

Should you like to discuss your application further, please call us on +44 1420 474123 for more information.

Temperature Range

• Up to 100°C (Intermittent)
• Down to -25°C

Recommended temperature range: -10°C to +100°C

Chemical Resistance

Good resistance to water swell, dilute acids, dilute alkalis, and alcohol.

Not compatible with:

• Mineral oil products (oils, greases, and fuels)
• Steam
• Aliphatic, halogenated, and aromatic hydrocarbons
• Phosphates
• Concentrated acids and alkalis

For detailed chemical compatibility, please see Chemical Compatibility.
