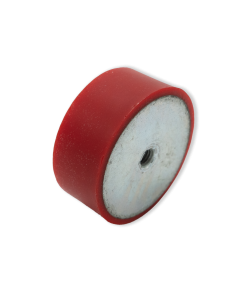

Mount Type: C (Female/Female)
Diameter: 75mm
Height: 55mm
Female Bolt Size: M12
Female Bolt Depth: 12mm
Material: Silicone (VMQ)
Hardness: 60 ShA
Maximum Load Compression: 331.25Kg
Maximum Shear Load: 33.125Kg
Metal Type: Standard Steel
Colour: Red Oxide
Weight: 0.374Kg
Type C Bobbin Mounts provide exceptional vibration isolation, ideal for sensitive machinery in various industries. Their Female/Female thread design ensures easy installation, while their performance in both compression and shear applications enhances operational efficiency. Perfect for automotive, HVAC, and medical equipment. Learn More
Mount Type: C(Female/Female)
Diameter: 6mm
Height: 7mm
Female Bolt Size: M3
Female Bolt Depth: 3mm
Material: Silicone (VMQ)
Hardness: 55 ShA
Maximum Load Compression: 5.6Kg
Maximum Shear Load: 0.952Kg
Metal Type: Stainless Steel (316 Grade)
Colour: Red Oxide
Weight: 0.003Kg
Type C Bobbin Mounts provide exceptional vibration isolation, ideal for sensitive machinery in various industries. Their Female/Female thread design ensures easy installation, while their performance in both compression and shear applications enhances operational efficiency. Perfect for automotive, HVAC, and medical equipment. Learn More
