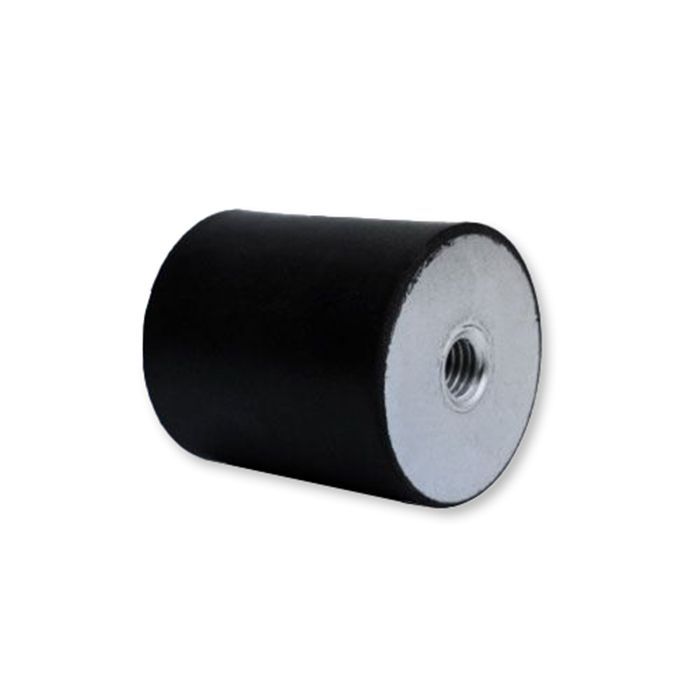

Type E Cylindrical Mount F, Ø40mm H35mm M8x8mm, EPDM 50 ShA Standard Steel

Type E Bobbin Mounts provide exceptional vibration isolation, ideal for compression applications across various industries. They effectively absorb vibrations, protecting sensitive components and enhancing system performance. Suitable for engines, compressors, motors, and more, these mounts are versatile yet not for failsafe use.

• Mount Type: E (Female)
• Diameter: 40mm
• Height: 35mm
• Female Bolt Size: M8
• Female Bolt Depth: 8mm
• Material: EPDM
• Metal Type: Standard Steel
• Colour: Black
• Weight: 0.078Kg
• Hardness: 50 ShA
• Maximum Compression Load: 59.4 Kg

Key Benefits

• Efficient Vibration Isolation: Designed to absorb and dampen vibrations, these mounts protect sensitive components, reducing wear and tear and enhancing overall system performance.
• Compression Performance: Ideal for use in compression and applications, providing reliable performance in a wide variety of industrial settings

Applications

Type E Bobbin Mounts are ideal for industries and machinery that require effective vibration isolation. Common applications include:

• Engines
• Compressors
• Motors
• Electronics
• Pumps
• Automotive
• Agricultural Equipment
• Construction Machinery
• HVAC Systems
• Railway
• Electric Motors
• Renewable Energy
• Generators
• Transportation
• Instrumentation
• Medical Equipment
• Laboratory Equipment

Please Note: These mounts are not suitable for failsafe applications.

Additional Information

• Not Suitable for failsafe applications.
• Compression Capability, these mounts provide excellent performance in both compression applications.

EPDM compounds offer excellent resistance to weathering, ozone, and aging, with stable performance across a wide temperature range. They provide outstanding resistance to water, steam, and many polar solvents, as well as brake fluids and phosphate-ester-based hydraulic fluids. EPDM maintains flexibility, resilience, and mechanical strength under thermal and chemical stress. Performs reliably in outdoor, automotive, and industrial applications where long-term durability and resistance to compression set are required.

Temperature Range

• Up to 150°C (Intermittent)
• Down to -45°C
• Recommended temperature range: -40°C to +120°C

Chemical Resistance

Good resistance to:

• Hot water and steam up to 149°C (with special compounds up to 260°C)
• Glycol-based brake fluids (DOT 3 & 4) and silicone-based brake fluids (DOT 5) up to 149°C
• Many organic and inorganic acids
• Cleaning agents, sodium and potassium alkalis
• Phosphate-ester based hydraulic fluids (HFD-R)
• Silicone oil and grease
• Many polar solvents (alcohols, ketones, esters)
• Ozone, aging, and weather resistant

Not compatible with:

• Mineral oil products (oils, greases, and fuels)
