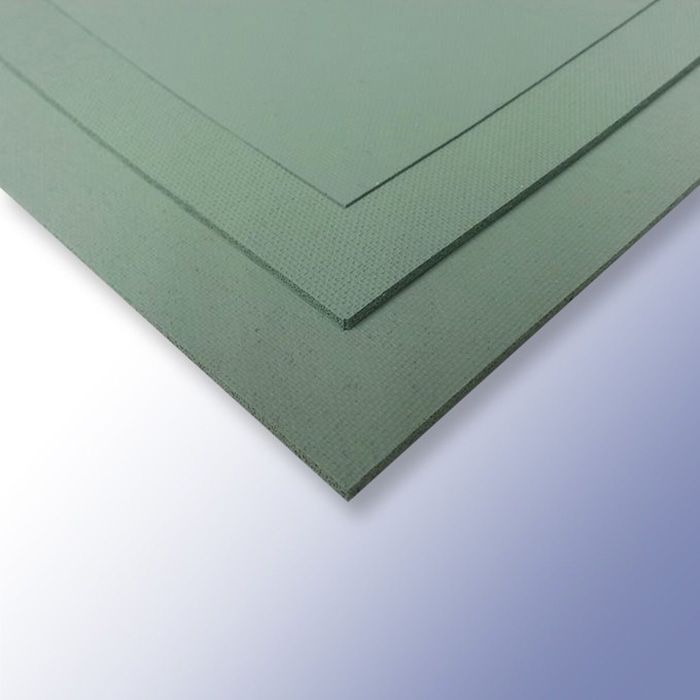

Thermally Conductive Silicone Sponge Sheet - 915mm Wide x 0.8mm Thick, Green
- Width: 915mm x Length: 1m x Thickness: 0.8mm
- Material: Silicone (VMQ)
- Colour: Green
- Density: 1.1g/cm³
- Weight: 0.81kg per Linear Metre
- Temperature Range: Min: -62°C, Max: 205°C
Thermally conductive silicone sponge sheet combines heat transfer with electrical isolation, making it ideal for thermal sealing applications. It offers vibration cushioning, durability, and superior sealing performance, ensuring safe and efficient operation in electronics, power devices, and telecommunications equipment.
Thermally Conductive Silicone Sponge Sheet - 915mm Wide x 0.8mm Thick, Green
This thermally conductive silicone sponge sheet offers a unique combination of thermal performance and electrical isolation, making it an ideal solution for critical thermal sealing applications. Designed to fill air gaps, it ensures enhanced thermal management, providing excellent heat transfer along with electrical isolation.
- Width: 915mm x Length: 1m x Thickness: 0.8mm
- Material: Silicone (VMQ)
- Colour: Green
- Density: 1.1g/cm³
- Weight: 0.81kg per Linear Metre
- Temperature Range: Min: -62°C, Max: 205°C
Key Benefits
- Thermally Conductive: Delivers exceptional heat transfer properties, efficiently conducting heat away from sensitive components, preventing overheating and enhancing overall system performance.
- Electrical Isolation: Offers effective electrical isolation, protecting sensitive components from electrical interference and ensuring safe operation in various electronic devices and systems.
- Vibration Cushioning: Provides vibration dampening, protecting components from damage due to mechanical shock and vibrations, which is essential for applications in sensitive electronics and machinery.
- Superior Thermal Sealing: Ideal for thermal sealing gaskets, ensuring optimal thermal contact and preventing energy loss while maintaining high sealing performance in extreme conditions.
- Durability and Reliability: The material's durable properties ensure long-lasting performance, with resistance to high temperatures, UV light, and ozone degradation.
Applications
- Thermal Sealing Gaskets and Seals
- Electronics Cooling
- Sensors and Radiators
- Power Devices
- Consumer Electronics
- Telecommunications Equipment
- LED Lighting Systems
Additional Information
This thermally conductive silicone sponge sheet provides an advanced solution for managing heat and protecting sensitive components across a wide range of industries. Additionally, it meets the high standards required for sensitive applications, including electronics, power devices, and aerospace components.
| Materiał | Silicone (VMQ) |
|---|---|
| Gęstość (g/cm³) | 1.1 |
| Szerokość | 915 |
| Długość (mm) | 1000 |
| Długość Rolki (m) | 4.5 |
| Grubość (mm) | 0.8 |
| Tolerance Thickness (±mm) | 0.38 |
| Tolerance Width (±mm) | 27.45 |
| Twardość | 13 ShA |
| Kolor | Green |
| Maksymalna temperatura (°C) | 205 |
| Minimalna temperatura (°C) | -62 |
| Wytrzymałość Na Rozciąganie (MPa) | 828 KPa |
| Wydłużenie Przy Zerwaniu (%) | 150 |
| Odkształcenia Trwałe Po Ucisku (%) | 15 |
| Weight (kg) | 0.8052 |
| Forma | Roll |
