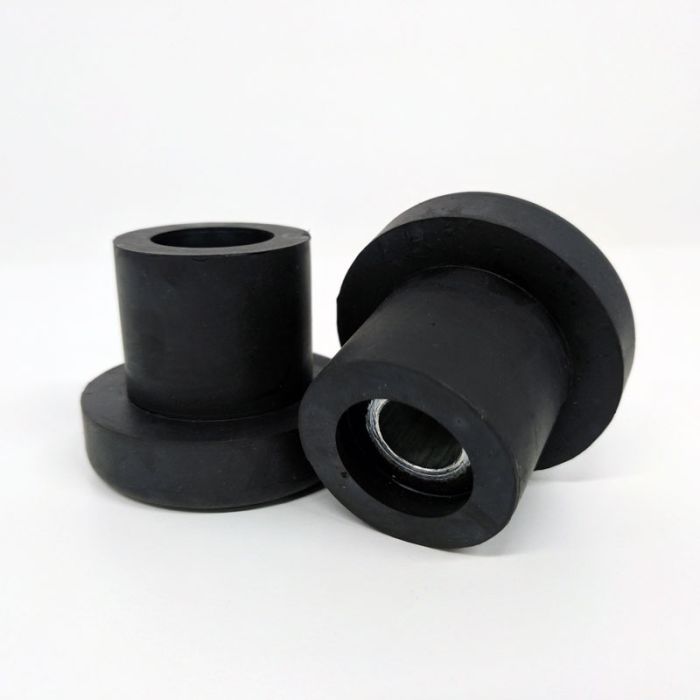

TB Centre Bonded Rubber Bush Ø28mm H17.5mm CR 50 ShA Standard Steel

TB Anti-Vibration Metal Rubber Mountings are expertly designed for efficient vibration isolation in heavy-duty applications. They provide excellent shock absorption and durability, ensuring safety and stability even under significant impacts. Easy to install and suitable for various sectors, these mounts excel in high-impact environments.

• Mount Type: TB
• Diameter: 20.1mm
• Outer Diameter: 28mm
• Height: 17.5mm
• Material: Chloroprene (CR)
• Colour: Black

Key Benefits

• Effective Vibration Isolation: TB metal rubber mountings provide excellent fail-safe dynamic isolation, particularly in vertical directions, both in traction and compression, ensuring maximum protection against vibrations.
• Shock Absorption: Designed to absorb significant levels of shocks, these mounts are ideal for applications that experience heavy impacts, ensuring that sensitive components are well-protected.
• Durability and Reliability: Manufactured with high-quality materials, these mounts offer long-lasting performance, even under extreme conditions, providing robust and reliable vibration isolation.
• Versatile Applications: Suitable for a variety of applications including agricultural machinery, tractors, off-road machines, military equipment, electrical systems, and more.
• Safety and Stability: These mounts ensure the safe and stable operation of equipment by reducing vibration and absorbing shocks, even in high-impact environments.

Applications

• Automotive
• Agricultural
• Construction Equipment
• HVAC Systems
• Compressors
• Railway
• Electric Motors
• Generators
• Transportation
• Instrumentation
• Medical
• Laboratory Equipment

Additional Information

• Easy Installation: These mounts are easy to install, making them a convenient solution for a wide range of machinery and equipment.
• Effective in High-Impact Environments: Ideal for applications in military, automotive, agricultural, and industrial sectors where significant shocks and vibrations are common.
• Flexible Suspension System: The TB Anti-Vibration Mounts offer flexible suspension systems for mobile, transport-mounted, or portable equipment, making them highly adaptable to different setups.

CR (Chloroprene Rubber / Neoprene) offers excellent resistance to weathering, ozone, and aging, with stable performance over a wide temperature range. It provides good resistance to moderate oils, fuels, and greases, as well as many hydraulic fluids and refrigerants. CR maintains mechanical strength, resilience, and flexibility under thermal and chemical stress. Performs well in applications exposed to sunlight, saltwater, and outdoor conditions, with strong dimensional stability and resistance to compression set. Its balanced physical properties make it suitable for demanding industrial and chemical environments where long-term durability is required.

Temperature Range

• Continuous service: –30°C to +120°C
• Intermittent peaks: up to +130°C
• Special compounds may extend high-temperature resistance up to +150°C

Chemical Resistance

Good resistance to:

• Moderate petroleum-based oils, greases, and fuels
• Hydraulic fluids (some mineral and phosphate ester types)
• Alcohols, ketones, and mild acids and alkalis
• Ozone, weathering, and sunlight

Not compatible with:

• Strong acids and alkalis
• Aromatic hydrocarbons
• Concentrated ketones
• Strong oxidizing agents
