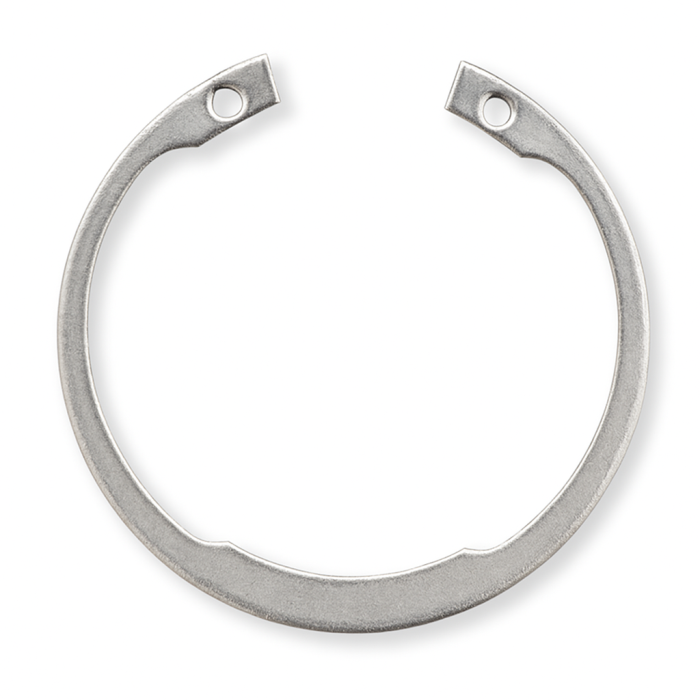

Stainless Steel (420 Grade)Internal Circlip (DIN 472) (D1300) 40mm Housing Diameter

• Housing Diameter: 40mm
• Thickness: 1.75mm
• Metal Width : 3.9mm
• Groove Width: 1.85mm
• Lug Width: 5.8mm
• Hole Size: 2.5mm
• Metal Type: Stainless Steel (420 Grade)
• Colour: Silver
• Weight: 0.0013kg

The Polymax Internal circlips are engineered to securely hold bearings gears pulleys and similar components in place. Commonly used in standard engineering applications they create a strong resilient shoulder on a shaft to support axial loads. Manufactured in accordance with DIN 472 our circlips provide a dependable solution for a wide range of mechanical assemblies.

Key Benefits

• Secure Fastening: Circlips provide a reliable method of axial retention.
• Compact Design: Ideal for tight or constrained spaces.
• Ease of Installation and Removal: Quickly installed or removed reducing cost and downtime.
• High Load Capacity: Circlips can withstand substantial radial and axial loads

Applications

• Automotive Transmissions
• Hydraulic Cylinders
• Electric Motors
• Bicycles and Motorcycles
• Machinery and Tools
• Consumer Electronics

Additional Information

*Note: Using Circlip pliers helps prevent damage to the circlip ensures proper seating in the groove and reduces the risk of injury or component failure due to improper installation.
