100,000+ pozycji w magazynie
ISO 9001
Dostawa następnego dnia
Ocena klientów 4.6 gwiazdki
- Bulk SAVING up to 10%
- QTY Price Per Item Saving
-
3003,00 zł 3,00 zł save 5%
-
10002,85 zł 2,85 zł save 10%
3,15 zł
3,15 zł

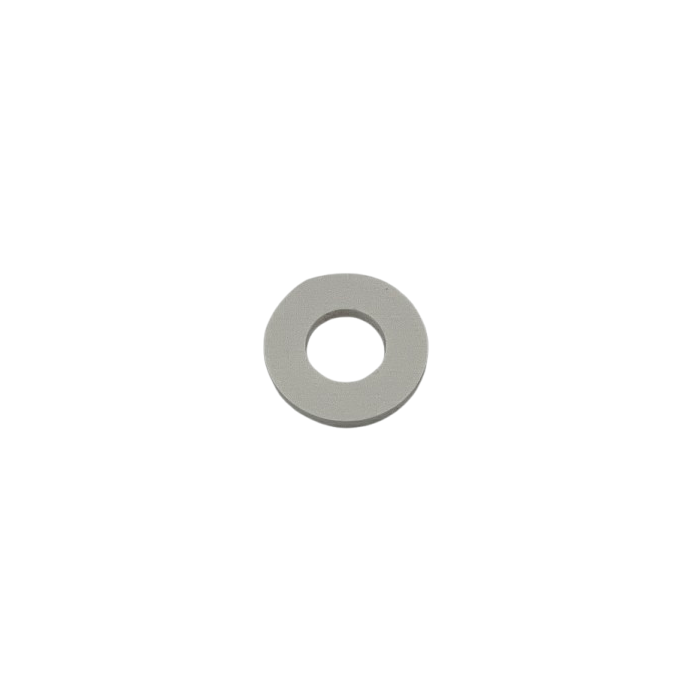

Silicone (VMQ) Washer M22, 23mm ID X 50mm OD X 1.5mm Thick, White 60 ShA
SKU
RWSW60201.5-23X50
- Internal Diameter: 23mm
- Outer Diameter: 50mm
- M-Size: M22
- Thickness: 1.5mm
- Hardness: 60 ShA
- Material: Silicone (VMQ)
- Colour: White
- Weight: 0.011kg
- Temperature Range: Min: -60°C, Max: 230°C
Polymax Silicone flat washers provide exceptional thermal stability and flexibility, with FDA-grade options for food and medical applications. Ideal for electronics, high-temp environments, and sterile systems, they offer reliable sealing and vibration dampening in a wide temperature range.
Silicone (VMQ) Washer M22, 23mm ID X 50mm OD X 1.5mm Thick, White 60 ShA
- Internal Diameter: 23mm
- Outer Diameter: 50mm
- M-Size: M22
- Thickness: 1.5mm
- Hardness: 60 ShA
- Material: Silicone (VMQ)
- Colour: White
- Weight: 0.011kg
- Temperature Range: Min: -60°C, Max: 230°C
Polymax Silicone washers are the perfect solution for extreme temperature applications and environments requiring high purity. Their excellent flexibility and weather resistance make them ideal for medical, food-grade, and high-tech sealing solutions.
Key Benefits
- Wide Temperature Range: Performs reliably from -60°C to +230°C.
- UV & Ozone Resistant: Ideal for outdoor environments.
- Excellent Compression Set: Maintains sealing performance over time.
Applications
- Medical Devices
- Food Processing Equipment
- Electronics & Semiconductors
- Aerospace Components
- High-Temp Insulation Systems
Additional Information
Silicone washers are available in FDA-compliant grades and custom sizes to meet industry-specific requirements while offering exceptional sealing at both low and high temperatures.
| Outer Diameter Tolerance | ±0.5 |
|---|---|
| Tolerancja ID | ±0.5 |
| Gęstość (g/cm³) | 1.2 |
| Materiał | Silicone (VMQ) |
| Grubość (mm) | 1.5 |
| Tolerance Thickness (±mm) | 0.3 |
| Średnica zewnętrzna (mm) | 50 |
| Średnica wewnętrzna (mm) | 113,04 zł |
| Twardość | 60 ShA |
| Tolerance Hardness (±) | 5 |
| Kolor | White |
| Maksymalna temperatura (°C) | 230 |
| Minimalna temperatura (°C) | -60 |
| Wytrzymałość Na Rozciąganie (MPa) | 10 MPa |
| Wydłużenie Przy Zerwaniu (%) | 400 |
| Weight (kg) | 0.0111 |
*Dimensions can vary, they are typical only.
