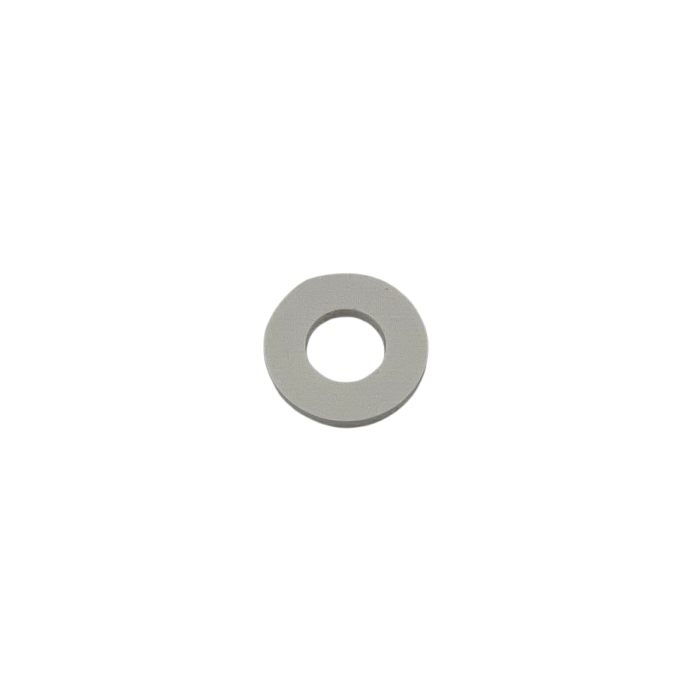

Silicone (VMQ) Washer M10, 10.5mm ID X 28mm OD X 3mm Thick, White 60 ShA
SKU
RWSW60203-10.5X28
- Internal Diameter: 10.5mm
- Outer Diameter: 28mm
- M-Size: M10
- Thickness: 3mm
- Hardness: 60 ShA
- Material: Silicone (VMQ)
- Colour: White
- Weight: 0.008kg
- Temperature Range: Min: -60°C, Max: 230°C
Polymax Silicone flat washers provide exceptional thermal stability and flexibility, with FDA-grade options for food and medical applications. Ideal for electronics, high-temp environments, and sterile systems, they offer reliable sealing and vibration dampening in a wide temperature range.
Silicone (VMQ) Washer M10, 10.5mm ID X 28mm OD X 3mm Thick, White 60 ShA
- Internal Diameter: 10.5mm
- Outer Diameter: 28mm
- M-Size: M10
- Thickness: 3mm
- Hardness: 60 ShA
- Material: Silicone (VMQ)
- Colour: White
- Weight: 0.008kg
- Temperature Range: Min: -60°C, Max: 230°C
Polymax Silicone washers are the perfect solution for extreme temperature applications and environments requiring high purity. Their excellent flexibility and weather resistance make them ideal for medical, food-grade, and high-tech sealing solutions.
Key Benefits
- Wide Temperature Range: Performs reliably from -60°C to +230°C.
- UV & Ozone Resistant: Ideal for outdoor environments.
- Excellent Compression Set: Maintains sealing performance over time.
Applications
- Medical Devices
- Food Processing Equipment
- Electronics & Semiconductors
- Aerospace Components
- High-Temp Insulation Systems
Additional Information
Silicone washers are available in FDA-compliant grades and custom sizes to meet industry-specific requirements while offering exceptional sealing at both low and high temperatures.
| Outer Diameter Tolerance | ±0.5 |
|---|---|
| Tolerancja ID | ±0.5 |
| Gęstość (g/cm³) | 1.2 |
| Materiał | Silicone (VMQ) |
| Grubość (mm) | 3 |
| Tolerance Thickness (±mm) | 0.4 |
| Średnica zewnętrzna (mm) | 28 |
| Średnica wewnętrzna (mm) | 51,60 zł |
| Twardość | 60 ShA |
| Tolerance Hardness (±) | 5 |
| Kolor | White |
| Maksymalna temperatura (°C) | 230 |
| Minimalna temperatura (°C) | -60 |
| Wytrzymałość Na Rozciąganie (MPa) | 10 MPa |
| Wydłużenie Przy Zerwaniu (%) | 400 |
| Weight (kg) | 0.0076 |
*Dimensions can vary, they are typical only.
