Silicone Castellated Hose - 45mm ID x 4.5mm Wall Thickness, Blue, 65 ShA

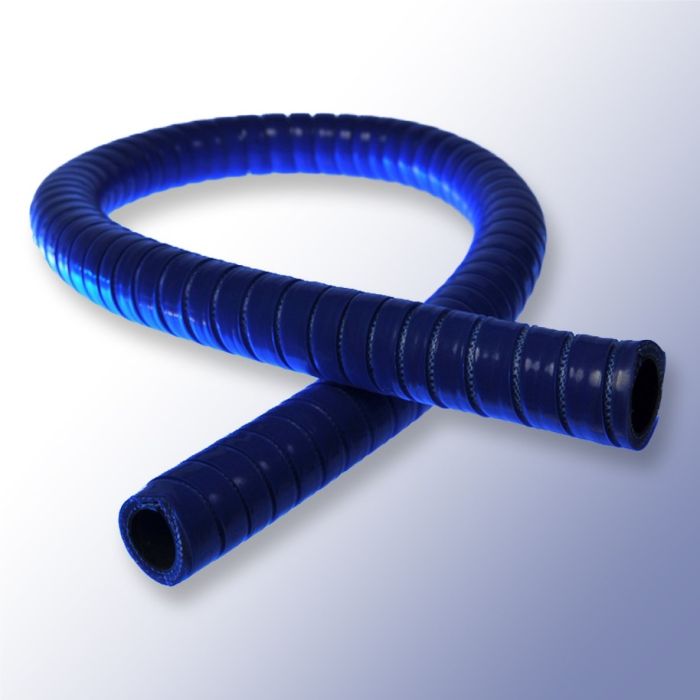

Castellated Silicone Hose is designed to provide exceptional flexibility combined with three-ply polyester reinforcement, making it the ideal choice for high-performance coolant and air applications. Featuring an integral silicone liner, this hose is further strengthened by a 1.2mm Thick galvanised steel wire helix running inside its wall.

• Internal Diameter: 45mm
• Outer Diameter: 54mm
• Wall Thickness: 4.5mm
• Material: Silicone (VMQ)
• Colour: Blue
• Hardness: 65 ShA
• Weight: 0.85kg per Metre
• Temperature Range: Min: -70°C, Max: 170°C

Key Benefits

• Extreme Flexibility: The castellated design offers significantly more flexibility compared to conventional cured hoses, allowing for tighter bends and easier installation in constrained spaces.
• Three-Ply Reinforced Strength: Made with a three-ply polyester reinforcement, this hose provides superior strength and durability, with excellent resistance to pressure and wear.
• Wire Helix for Enhanced Durability: The 1.2mm Thick galvanised steel wire helix ensures the hose maintains its shape, even under high pressure, while preventing kinking and collapse under negative pressure conditions.
• High-Temperature Resistance: Built to withstand high temperatures, this hose is perfect for automotive cooling systems, industrial heating and cooling, and other high-heat applications.
• Versatile Applications: Suitable for a wide range of applications, including automotive, marine, and industrial systems, where flexibility and durability are crucial.

Applications

• Automotive Cooling Systems
• Air Intake Systems.
• Industrial Heating and Cooling Systems
• Marine Heating and Cooling Systems
• High-Temperature Applications
• Negative Pressure Conditions
• Vibration-Prone Environments
• Railway Cooling Systems

Additional Information

Polymax Castellated Silicone Hose offers the perfect combination of flexibility and strength for a wide range of cooling and air applications. With its wire-reinforced structure, it ensures durability under high-pressure and high-temperature conditions, while the unique castellated design makes it more flexible and easier to work with than traditional silicone hoses.
