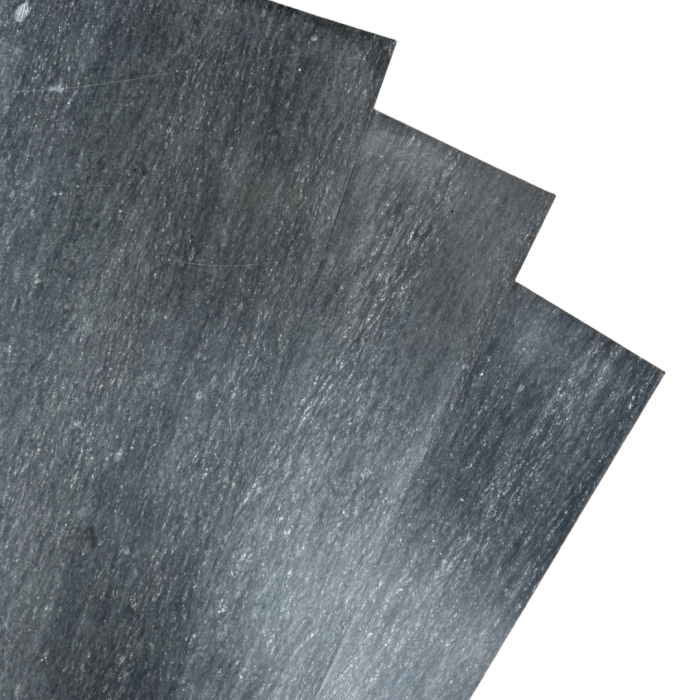

Premium Carbon Fibre Compressed Fibre 750mm Length X 500mm Width X 2mm Thick

Key Features

The CP400 is expertly engineered with a unique blend of carbon fibres, inorganic fillers, and an NBR binder, providing outstanding sealing capabilities for a variety of industrial applications. Its robust construction is further enhanced by the optional carbon steel wire mesh insert, offering increased strength and versatility. The material is easily identifiable by its distinctive black colour.

Complying with multiple industry standards, the CP400 ensures reliability and performance across various sectors. It boasts approvals from prestigious organisations, including BAM (oxygen), BS 7531 Grade X, DNV GL, DVGW DIN 30653 (5 bars), and DVGW DIN 3535-6, making it an ideal choice for critical applications in demanding environments.

Available in generous sheet dimensions of 1500 x 1500 mm, 3000 x 1500 mm, and 4500 x 1500 mm, the CP400 caters to diverse sealing needs with thicknesses ranging from 0.5 mm to 3.0 mm. We also offer custom sizes and thicknesses to meet specific project requirements. Our commitment to quality ensures that all material tolerances for length, width, and thickness are stringently maintained, guaranteeing consistent and reliable sealing performance.

The standard surface finish features a 4AS texture, with options for graphite or PTFE coatings available to suit various operating environments. Technical specifications highlight the CP400’s superior quality, including a density of 1.8 g/cm³, compressibility of 9%, and recovery of 62%. With a tensile strength of 12 MPa, this material exhibits significant resistance to residual stress and maintains a low specific leak rate, underscoring its durability and sealing efficiency.

Designed to withstand extreme conditions, the CP400 can handle peak temperatures up to 400°C (752°F) and continuous temperatures up to 300°C (572°F). It is also capable of enduring continuous exposure to steam up to 280°C (536°F). With a maximum pressure rating of 120 bar (1740 psi), this product is perfectly suited for high-demand environments, particularly in the chemical and petrochemical industries.

Applications

The CP400 is an ideal choice for a wide range of applications, including but not limited to:

• Sealing solutions in the chemical and petrochemical sectors
• High-performance gaskets and seals
• Industrial equipment that requires reliable sealing under extreme temperatures and pressures
• Applications demanding compliance with stringent industry standards
• Custom sealing solutions in diverse operational environments

Whether you require a black gasket material or versatile sealing sheets, the CP400 meets the high standards needed for effective performance in various industrial applications.

Additional Details

• Also available self-adhesive backing for easy installation.
• Full customisation service: tailored cutting options to create the shapes or gaskets for your applications.
