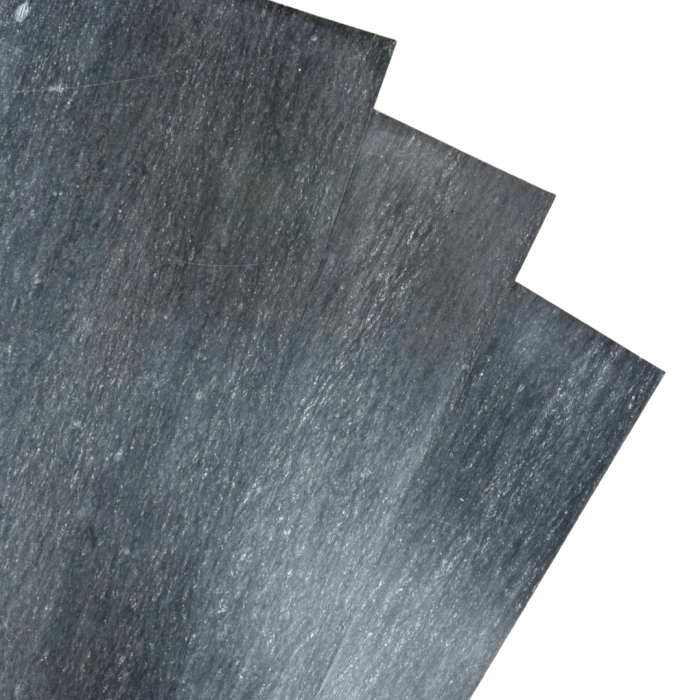

Premium Carbon Fibre Compressed Fibre 750mm Length X 500mm Width X 1.5mm Thick

• Hardness: ShA
• Length: 750mm x Width: 500mm x Thickness: 1.5mm
• Material: Compressed Fibre
• Density: 1.8
• Colour:Green
• Weight: 1.01kg
• Temperature Range: Max: 400°C

Key Features

The CP400 is expertly engineered using a premium blend of carbon fibres, inorganic fillers, and NBR binder, delivering outstanding sealing capabilities. This product is designed for superior performance in demanding environments. Its robust construction includes an optional carbon steel wire mesh insert, which significantly enhances strength and versatility.

CP400 adheres to stringent industry standards, ensuring reliability and excellence. It holds numerous approvals including BAM (oxygen), BS 7531 Grade X, DNV GL, DVGW DIN 30653 (5 bars), and DVGW DIN 3535-6. These certifications demonstrate its suitability for a wide array of applications across various industries.

Available in versatile sheet dimensions of 1500 x 1500 mm, 3000 x 1500 mm, and 4500 x 1500 mm, the CP400 meets diverse operational needs with thickness options ranging from 0.5 mm to 3.0 mm. Custom sizes and thicknesses can also be provided to accommodate specific project requirements. The material maintains strict tolerances for length, width, and thickness, ensuring consistent and reliable sealing performance.

The standard surface finish is 4AS, with additional options for graphite or PTFE coatings to suit various operational environments. Technical specifications highlight its superior quality, featuring a density of 1.8 g/cm³, compressibility of 9%, and recovery of 62%, alongside a formidable tensile strength of 12 MPa. The CP400 demonstrates remarkable resistance to residual stress and maintains a low specific leak rate, underscoring its durability and sealing efficiency.

In terms of operating conditions, the CP400 excels, capable of withstanding peak temperatures of up to 400°C (752°F) and continuous temperatures of up to 300°C (572°F). It is also adept at enduring steam exposure up to 280°C (536°F), with a maximum pressure rating of 120 bar (1740 psi). This makes the CP400 particularly suited for high-demand environments, including those prevalent in the chemical and petrochemical industries.

Applications

The CP400 is an ideal choice for a variety of industrial applications, particularly in sectors where robust sealing solutions are critical. Its exceptional sealing capabilities make it perfect for use in chemical processing, petrochemical plants, and other high-temperature environments. Additionally, its compliance with international standards makes it suitable for use in manufacturing processes that require strict adherence to safety and quality regulations.

Whether you need reliable sealing for pumps, valves, or flanges, the CP400 offers the versatility and performance necessary to meet your operational challenges. Its compatibility with various chemicals and high-pressure systems makes it an essential component for maintaining efficiency and safety in your industrial operations.

Additional Details

• Also available self-adhesive backing for easy installation.
• Full customisation service: tailored cutting options to create the shapes or gaskets for your applications.
