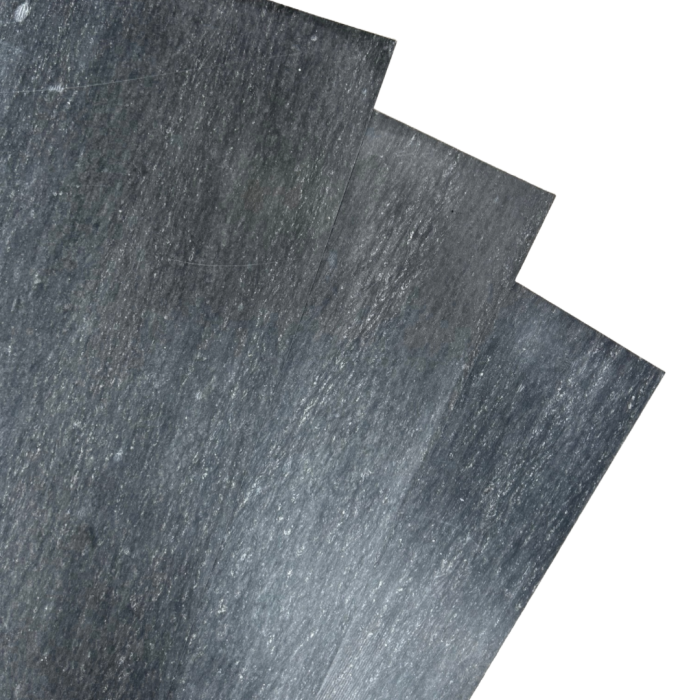

Premium Carbon Fibre Compressed Fibre 750mm Length X 500mm Width X 0.8mm Thick

• Length: 750mm x Width: 500mm x Thickness: 0.8mm
• Material: Compressed Fibre
• Density: 1.8
• Colour: Black
• Weight: 0.54kg
• Temperature Range: Max: 400°C

Key Features

CP400 sealing material, expertly engineered with a premium blend of carbon fibres, inorganic fillers, and NBR binder, ensuring exceptional sealing capabilities for your industrial needs. The material is available with an optional carbon steel wire mesh insert, which enhances its strength and versatility, making it suitable for a wide range of demanding applications. Notably, the CP400 is distinguished by its striking black colour, adding a professional aesthetic to any project.

This versatile sealing solution meets multiple industry standards, guaranteeing reliability and performance. It holds prestigious approvals such as BAM (oxygen), BS 7531 Grade X, DNV GL, DVGW DIN 30653 (5 bars), and DVGW DIN 3535-6. These certifications underscore its suitability for various sectors, particularly in chemical and petrochemical industries.

The CP400 is offered in generous sheet sizes of 1500 x 1500 mm, 3000 x 1500 mm, and 4500 x 1500 mm, with thicknesses ranging from 0.5 mm to 3.0 mm. For customised solutions, we provide options for bespoke sizes and thicknesses, ensuring that all specific requirements are met. Our commitment to quality is reflected in the strict maintenance of tolerances for length, width, and thickness, guaranteeing consistent and reliable sealing performance.

Featuring a standard surface finish of 4AS, the CP400 can also be tailored with graphite or PTFE coatings, effectively catering to varied operating environments. Technical specifications highlight its premium quality: a density of 1.8 g/cm³, compressibility of 9%, and recovery rate of 62%, combined with impressive tensile strength of 12 MPa. The material exhibits substantial resistance to residual stress and maintains a low specific leak rate, showcasing its durability and sealing efficiency.

Designed for high-performance applications, the CP400 can withstand peak temperatures up to 400°C (752°F) and continuous temperatures up to 300°C (572°F). It is also capable of enduring continuous steam exposure up to 280°C (536°F), with a maximum pressure rating of 120 bar (1740 psi). This makes the CP400 an ideal choice for high-demand environments, providing robust sealing solutions that you can trust.

Applications

The CP400 sealing material is remarkably versatile and is widely used across numerous industries. Its exceptional sealing properties make it an ideal choice for:

• Chemical processing plants
• Petrochemical facilities
• Steam systems
• High-pressure applications
• Industrial machinery
• Fluid containment systems

Whether you require white rubber sheets or natural rubber solutions, the CP400 is the perfect choice for applications necessitating reliable performance and durability.

Contact Us

For more information, please contact our sales team at 01420 474123.
