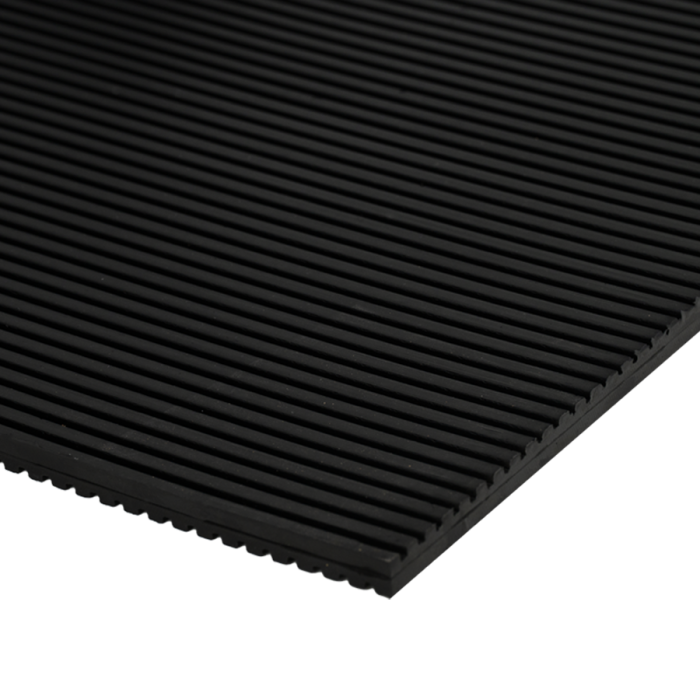

Polymax ANCHOR Mat, 500mm X 500mm X 8mm, Chloroprene (CR) 70 Shore A

The Anchor Mat is a high-performance anti vibration mount designed to isolate and absorb vibrations effectively. Manufactured with a specially compounded material, this vibration isolation pad features 5mm wide ribs that run at a 90º angle to one another on either side, ensuring superior grip and outstanding vibration dampening capabilities. .

• Mount Type: Anchor Mat
• Length: 500mm
• Width: 500mm
• Thickness: 8mm
• Material: Chloroprene (CR)
• Colour: Black
• Weight: 1.7Kg

Key Benefits

• Superior Vibration Isolation: The unique ribbed design of the Anchor Mat provides exceptional vibration dampening, making it perfect for applications that require effective isolation of vibrations.
• Durability and Longevity: Made from high-quality materials, this heavy duty anti vibration rubber mount ensures long-lasting performance, even in demanding environments.
• High Load Capacity:The Anchor Mat can handle various load requirements for different machinery and equipment.
• Enhanced Grip: The ribbed structure provides excellent grip, preventing slipping and ensuring stability in applications where secure mounting is essential.
• Flexible Application: Suitable for a variety of industrial applications, the Anchor Mat serves as a versatile solution for vibration isolation in both static and dynamic environments.

Applications

• Machine Tools
• Washing Machines
• Heavy Static Generators
• Compressors
• Hydraulic Presses

Additional Information

• Material: The Anchor Mat is made from a specially compounded rubber material, designed to offer exceptional vibration isolation and durability.
• Easy Installation: The Anchor Mat is simple to install and can be used in a variety of settings, from industrial machines to domestic appliances.

CR (Chloroprene Rubber / Neoprene) offers excellent resistance to weathering, ozone, and aging, with stable performance over a wide temperature range. It provides good resistance to moderate oils, fuels, and greases, as well as many hydraulic fluids and refrigerants. CR maintains mechanical strength, resilience, and flexibility under thermal and chemical stress. Performs well in applications exposed to sunlight, saltwater, and outdoor conditions, with strong dimensional stability and resistance to compression set. Its balanced physical properties make it suitable for demanding industrial and chemical environments where long-term durability is required.

Temperature Range

• Continuous service: –30°C to +120°C
• Intermittent peaks: up to +130°C
• Special compounds may extend high-temperature resistance up to +150°C

Chemical Resistance

Good resistance to:

• Moderate petroleum-based oils, greases, and fuels
• Hydraulic fluids (some mineral and phosphate ester types)
• Alcohols, ketones, and mild acids and alkalis
• Ozone, weathering, and sunlight

Not compatible with:

• Strong acids and alkalis
• Aromatic hydrocarbons
• Concentrated ketones
• Strong oxidizing agents
