113,23 zł
113,23 zł

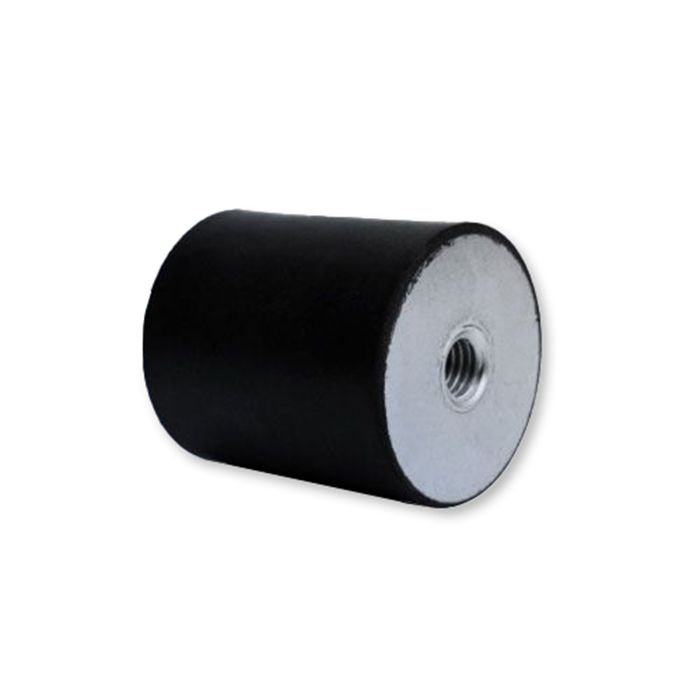

Pack of 8pcs-Type E Cylindrical Mount F, Ø16mm H10mm M4x4mm, NR 45 ShA Standard Steel
SKU
R8E1610M4-1
- Mount Type: E (Female)
- Diameter: 16mm
- Height: 10mm
- Female Bolt Size: M4
- Female Bolt Depth: 4mm
- Material: Natural Rubber (NR)
- Metal Type: Standard Steel
- Colour: Black
- Weight: 0.056Kg
- Hardness: 45 ShA
- Maximum Compression Load: 7.5 Kg
Type E Bobbin Mounts are designed to offer exceptional vibration isolation in a variety of applications. A simple yet effective solution, these mounts are ideal for use in compression applications, offering versatility across multiple industries.
- Mount Type: E (Female)
- Diameter: 16mm
- Height: 10mm
- Female Bolt Size: M4
- Female Bolt Depth: 4mm
- Material: Natural Rubber (NR)
- Metal Type: Standard Steel
- Colour: Black
- Weight: 0.04Kg
- Hardness: 45 ShA
- Maximum Compression Load: 7.5 Kg
Type E Bobbin Mounts are designed to offer exceptional vibration isolation in a variety of applications. A simple yet effective solution, these mounts are ideal for use in compression applications, offering versatility across multiple industries.
| Kolor | Czarny |
|---|---|
| Twardość | 45 ShA |
| Rodzaj metalu | Stal standardowa |
| Rodzaj Wibroizolatora | E |
| Wydłużenie Przy Zerwaniu (%) | 450 |
| Materiał | Natural Rubber (NR) |
| Maksymalna temperatura (°C) | 70 |
| Minimalna temperatura (°C) | -25 |
| Gęstość (g/cm³) | 1.04 |
| Wysokość (mm) | 10 |
| Średnica (mm) | 16 |
| Maksymalne obciążenie przy ściskaniu (kg) | 7.5 |
| Wytrzymałość Na Rozciąganie (MPa) | 10 MPa |
| Tolerance Hardness (±) | 5 |
| Thread Length/Depth 1 (mm) | 4 |
| Thread Length/Depth 2 (mm) | 4 |
| Rozmiar gwintu 1 | M4 |
| Weight (kg) | 0.04 |
All rubber tolerances as per ISO 3302 Class M3. Hardness tolerance +/- 5 Shore A and Stiffness tolerance +/-20% from stated values.
